Product Information
Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Sharp point only.
- Pan head for improved clamping
- Fully threaded up to 75mm, thereafter partially threaded
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- Surface hardened to prevent torque shearing under load and core hardened for improved ductility
Documents
Technical Specifications
Product Specifications
| Gauge | 6 |
| Finish | Zinc & Yellow |
| Head Type | Pan |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Single Coarse 40° |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 1/2 |
| Length mm | 12 |
| Diameter mm | 3.5 |
| Size mm | 3.5 x 12 |
| Thread Length mm | 12 |
| Lubrication | Gleitmo |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Internal |
| Pack Dimensions L x W x H mm | 55 x 40 x 36 |
| Pack Weight kg | 0.18 |
| Carton Qty Packs | 140 |
| Pallet Qty Packs | 5040 |
| CE Standard Web | BS EN 14592:2008 |
| Service Class | 1 |
| Product Code | 35012CLAP |
| SKU Barcode | 5055017509133 |
| Size imp | 6 x 1/2 |
| Thread Dia mm | 3.5 |
| Inner Thread Dia mm | 2.25 |
| Head Dia mm | 6.72 |
Attribute Group 1
| Brand | TIMCO |

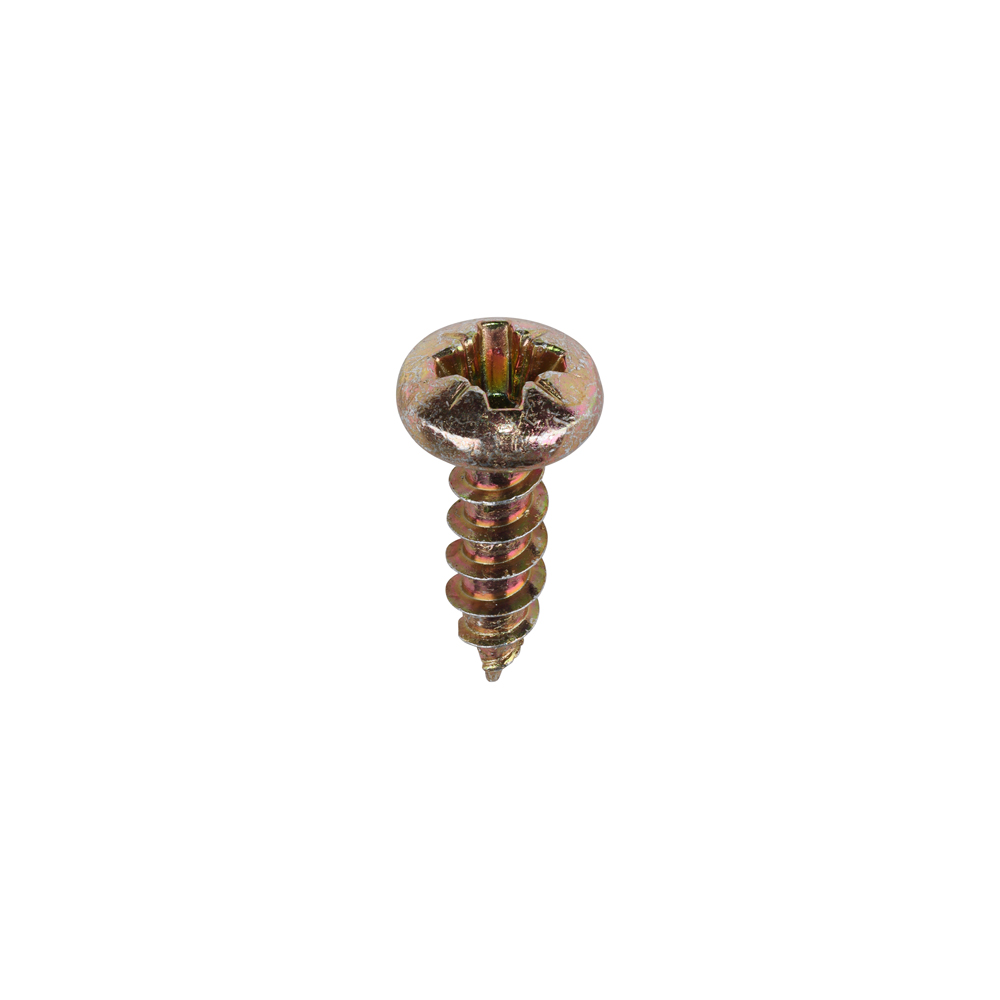

Classic Multi-Purpose Screws - PZ - Pan Head - Yellow
3.5 x 12
- Product Code: 35012CLAP

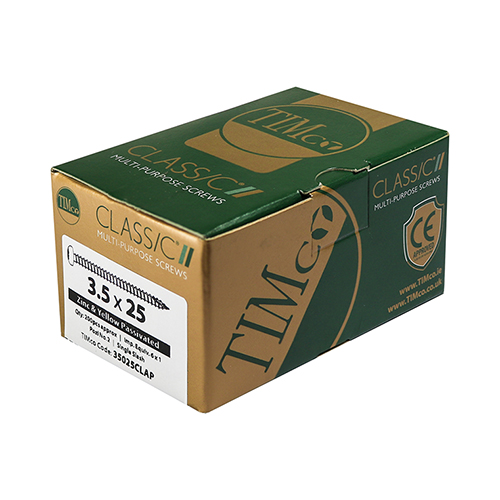

- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017509133
