Product Information
Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
  • Pan head for improved clamping
  • Fully threaded up to 75mm, thereafter partially threaded
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Surface hardened to prevent torque shearing under load and core hardened for improved ductility
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
Documents
Technical Specifications
Product Specifications
Gauge 8
Finish Zinc & Yellow
Head Type Pan
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Product Specification
Length inch 11/4
Length mm 30
Diameter mm 4.0
Size mm 4.0 x 30
Thread Length mm 30
Lubrication Gleitmo
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Indoor Outdoor Usage Internal
Pack Dimensions L x W x H mm 92 x 74 x 56
Pack Weight kg 0.4
Carton Qty Packs 50
Pallet Qty Packs 1200
CE Standard Web BS EN 14592:2008
Service Class 1
Product Code 40030CLAP
SKU Barcode 5055017509201
Size imp 8 x 1 1/4
Thread Dia mm 4
Inner Thread Dia mm 2.5
Head Dia mm 7.87
Attribute Group 1
Brand TIMCO

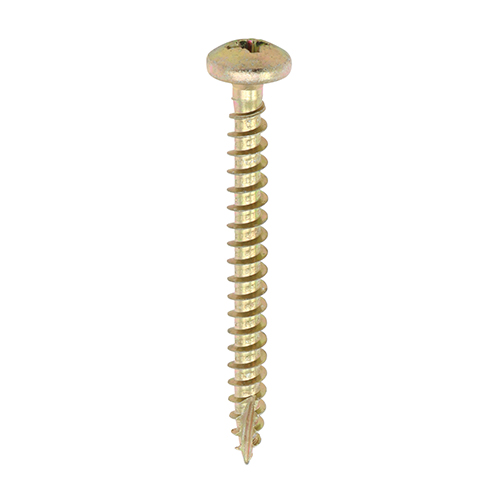

Classic Multi-Purpose Screws - PZ - Pan Head - Yellow

4.0 x 30

  • Product Code: 40030CLAP

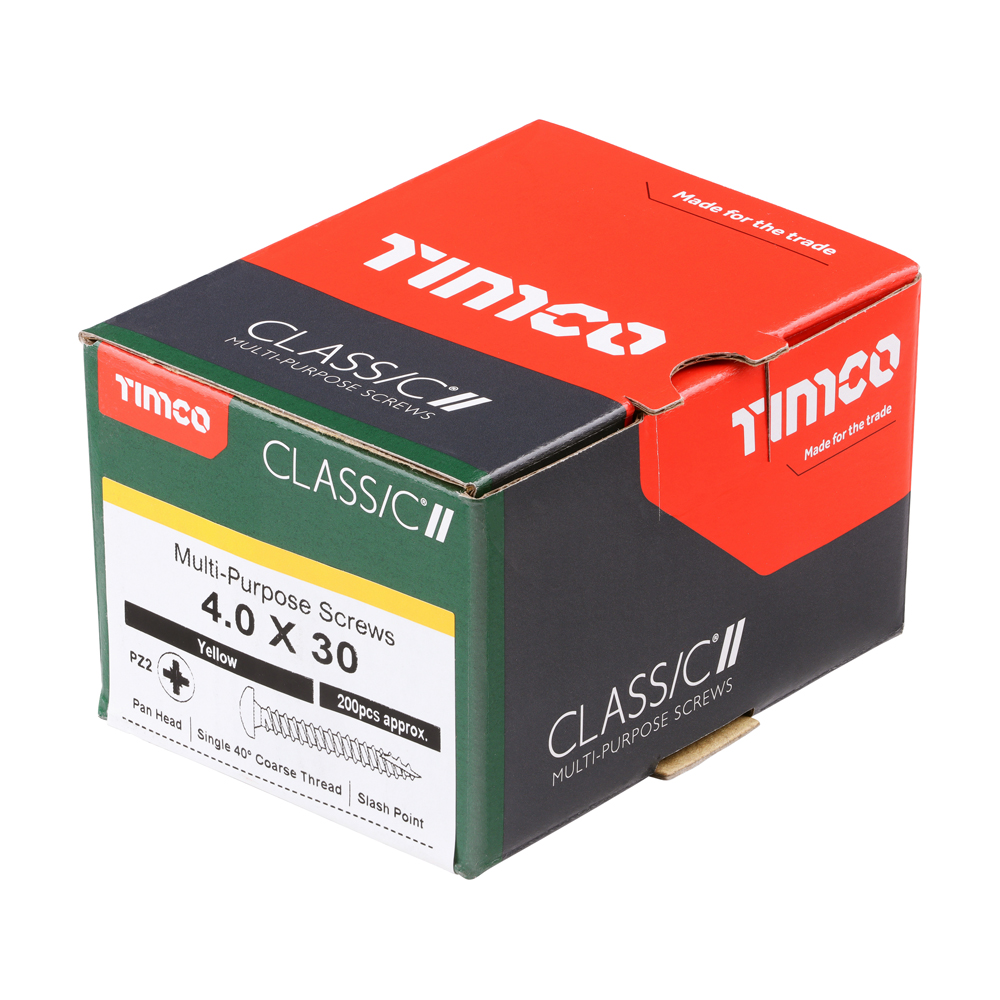

  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5055017509201
