Product Information

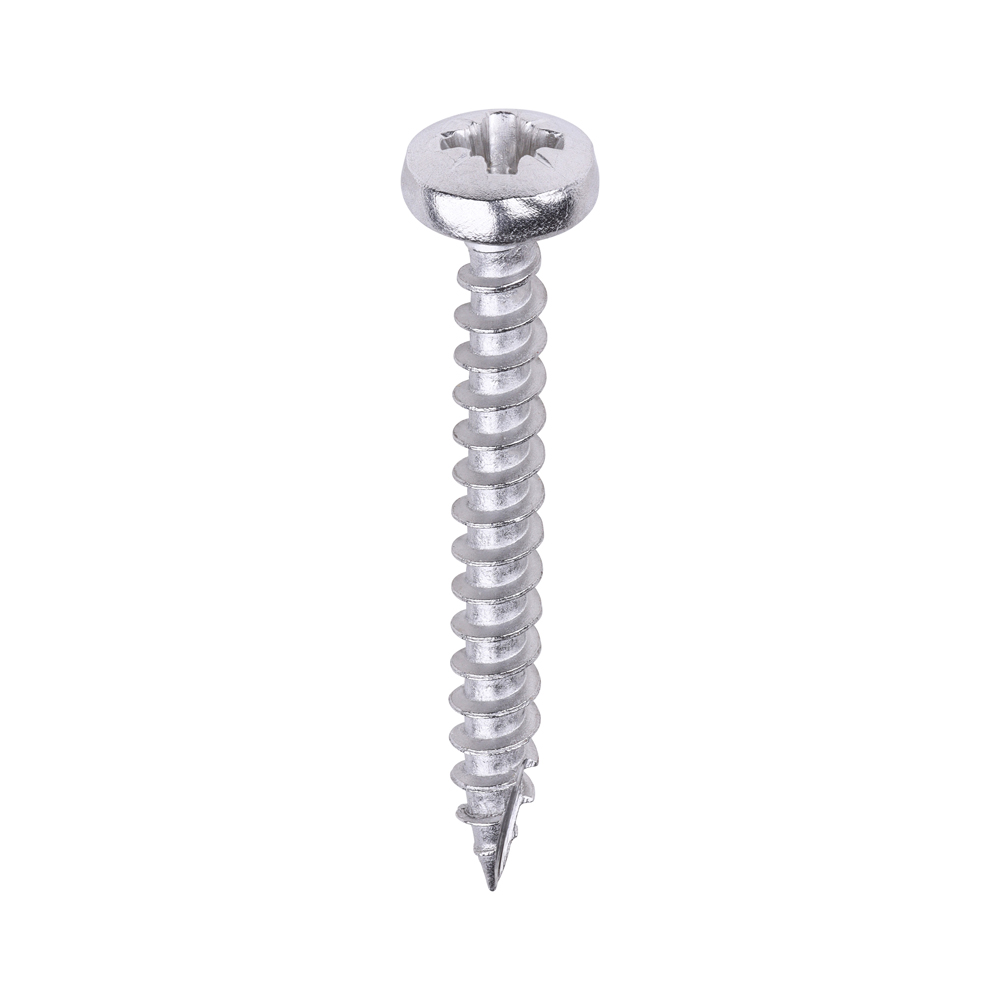

All the features and superior performance of the Classic Multi-Purpose Screw. Manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Pan head for improved clamping
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 6 |
| Head Type | Pan |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Single Coarse 40° |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
Product Specification
| Length inch | 1 1/4 |
| Length mm | 30 |
| Diameter mm | 3.5 |
| Size mm | 3.5 x 30 |
| Thread Length mm | 30 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 94 x 70 x 58 |
| Pack Weight kg | 0.34 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | 1800 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 35030CLAPSS |
| SKU Barcode | 5056110816913 |
| Size imp | 6 x 1 1/4 |
| Thread Dia mm | 3.5 |
| Inner Thread Dia mm | 2.28 |
| Head Dia mm | 6.85 |
Attribute Group 1
| Brand | TIMCO |

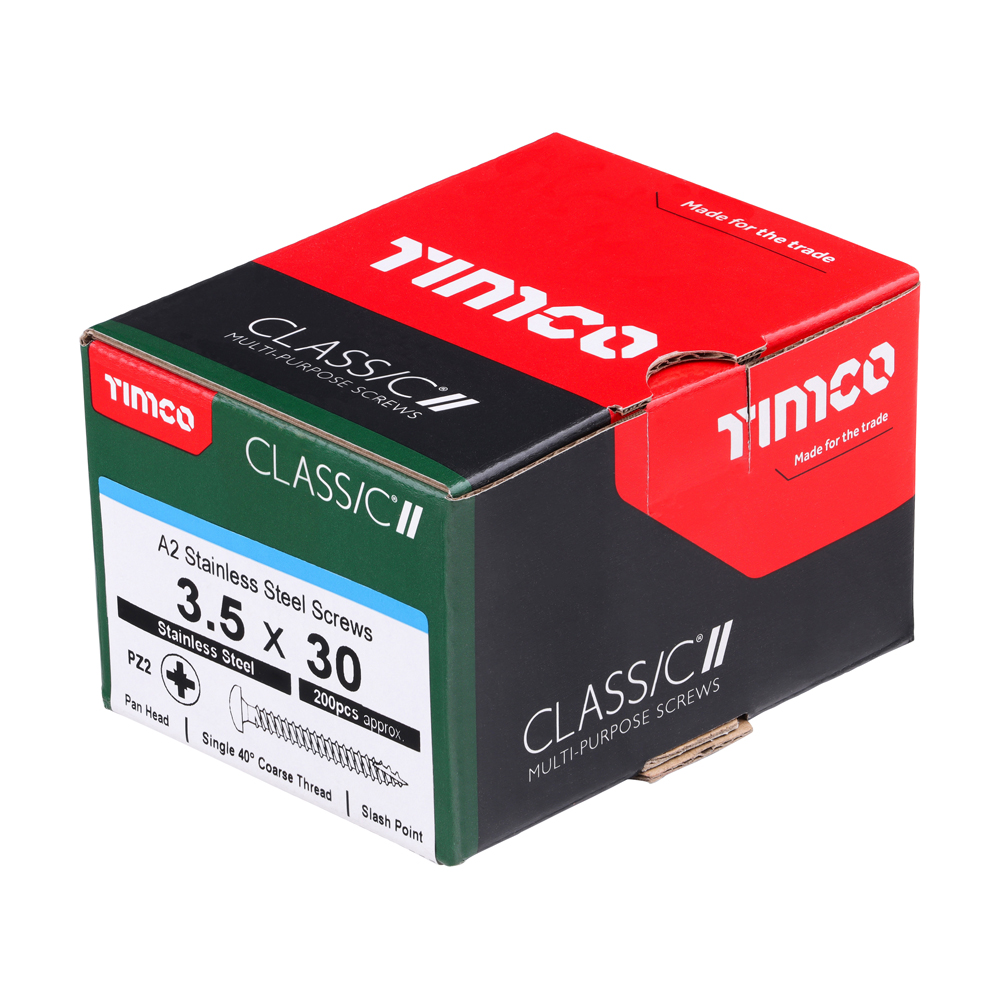

Classic Multi-Purpose Screws - PZ - Pan Head - A2 Stainless Steel
3.5 x 30
- Product Code: 35030CLAPSS
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5056110816913
