Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. NOTE: Sharp point only.
- Pan head for improved clamping
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Head Type | Pan |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Single Coarse 40° |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
Product Specification
| Length inch | 3/4 |
| Length mm | 20 |
| Diameter mm | 4.0 |
| Size mm | 4.0 x 20 |
| Thread Length mm | 20 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 88 x 58 x 46 |
| Pack Weight kg | 0.32 |
| Carton Qty Packs | 75 |
| Pallet Qty Packs | 1800 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 40020CLAPSS |
| SKU Barcode | 5056110816920 |
| Size imp | 8 x 3/4 |
| Thread Dia mm | 4 |
| Inner Thread Dia mm | 2.45 |
| Head Dia mm | 7.9 |
Attribute Group 1
| Brand | TIMCO |

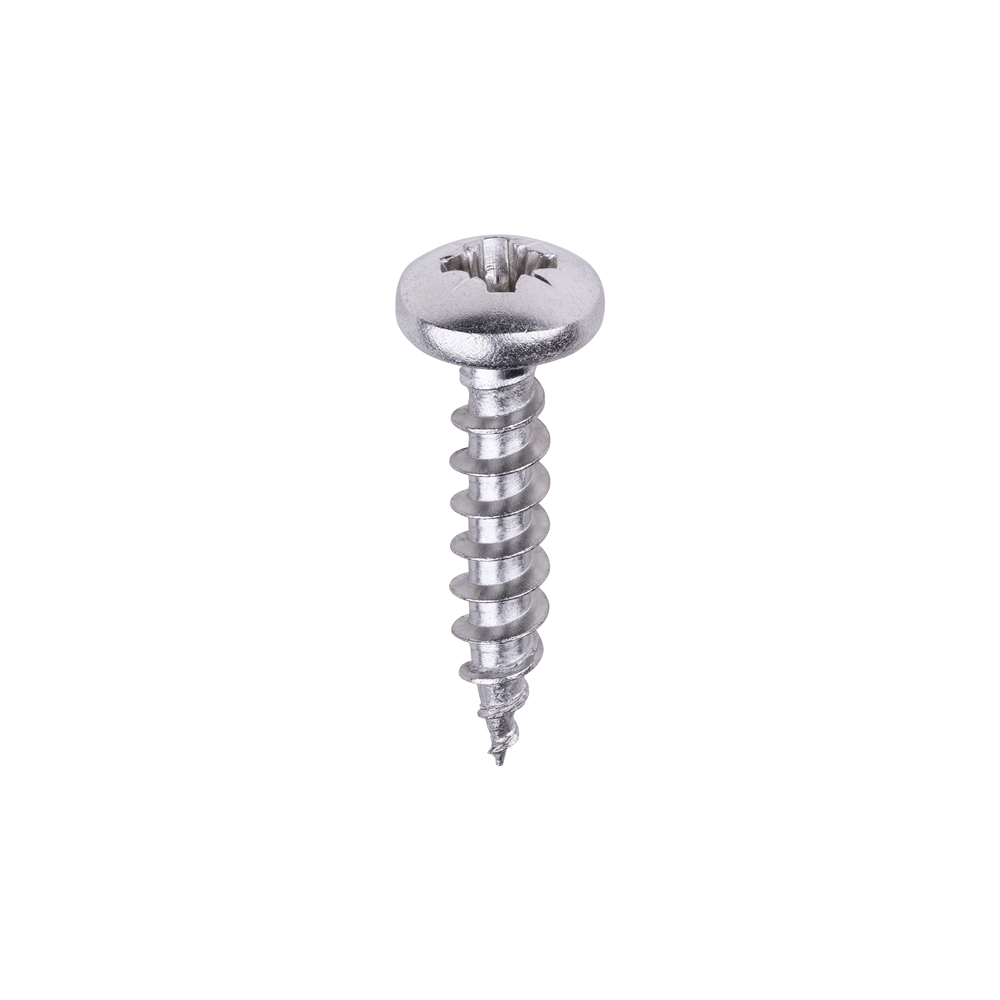

Classic Multi-Purpose Screws - PZ - Pan Head - A2 Stainless Steel
4.0 x 20
- Product Code: 40020CLAPSS

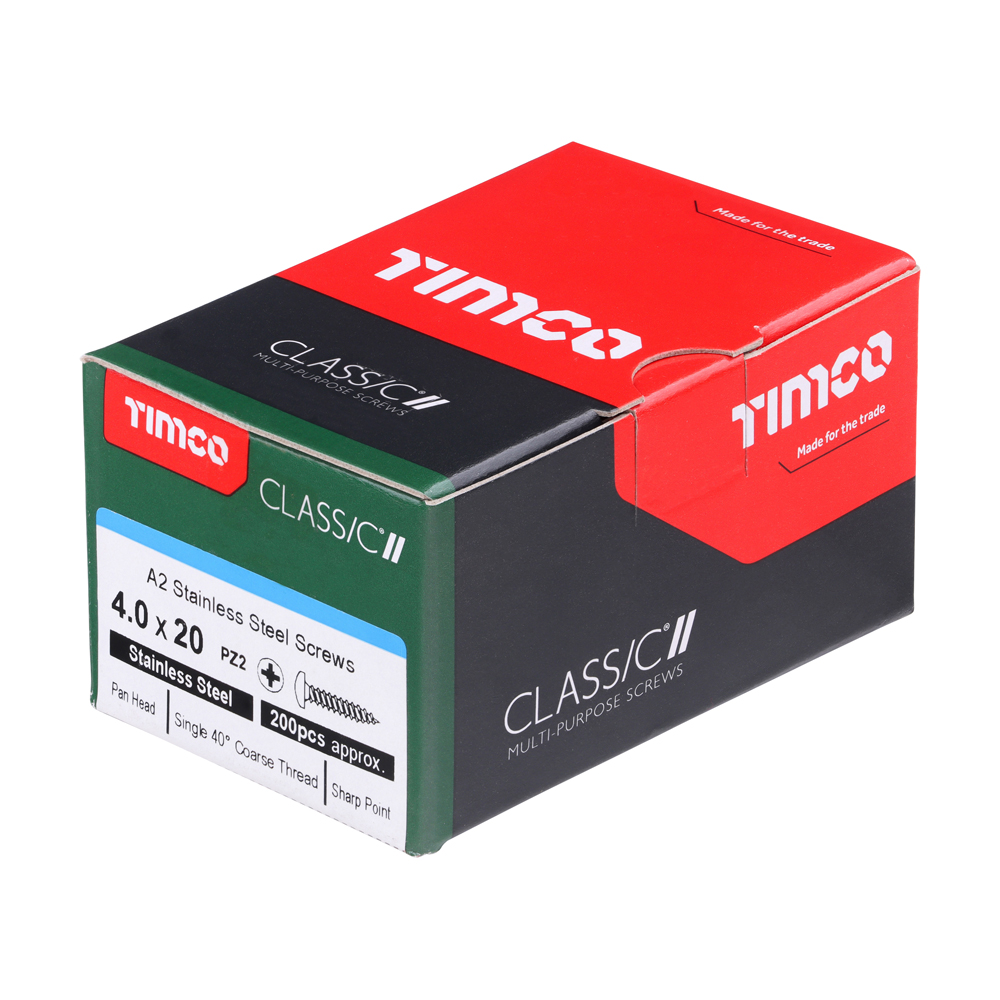

- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5056110816920
