Product Information
Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
- Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- Surface hardened to prevent torque shearing under load and core hardened for improved ductility
- Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Single Coarse 40° |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 2 3/8 |
| Length mm | 55 |
| Diameter mm | 5.0 |
| Size mm | 5.0 x 55 |
| Thread Length mm | 50 |
| Lubrication | Gleitmo |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 138 x 92 x 62 |
| Pack Weight kg | 0.9 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 50055CLAF |
| SKU Barcode | 5055017507450 |
| Size imp | 10 x 2 3/8 |
| Thread Dia mm | 5 |
| Inner Thread Dia mm | 3.1 |
| Head Dia mm | 9.74 |
Attribute Group 1
| Brand | TIMCO |

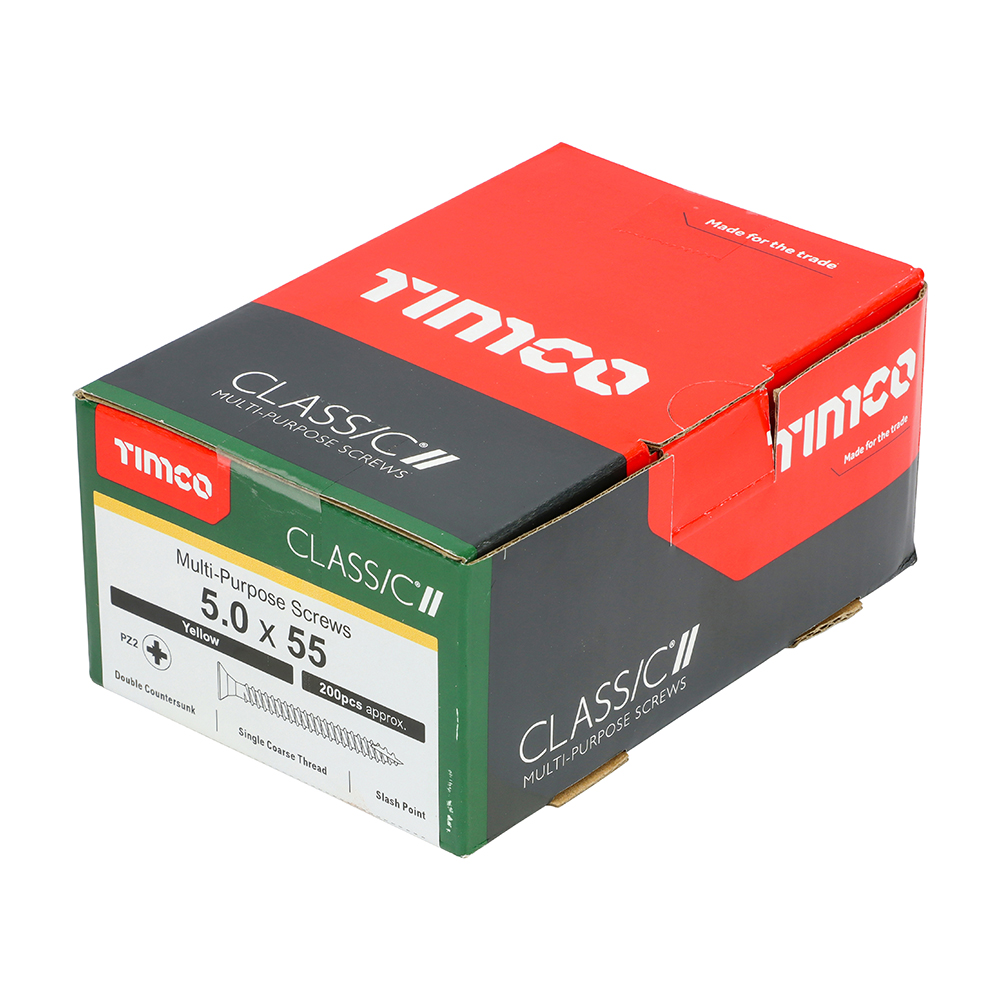

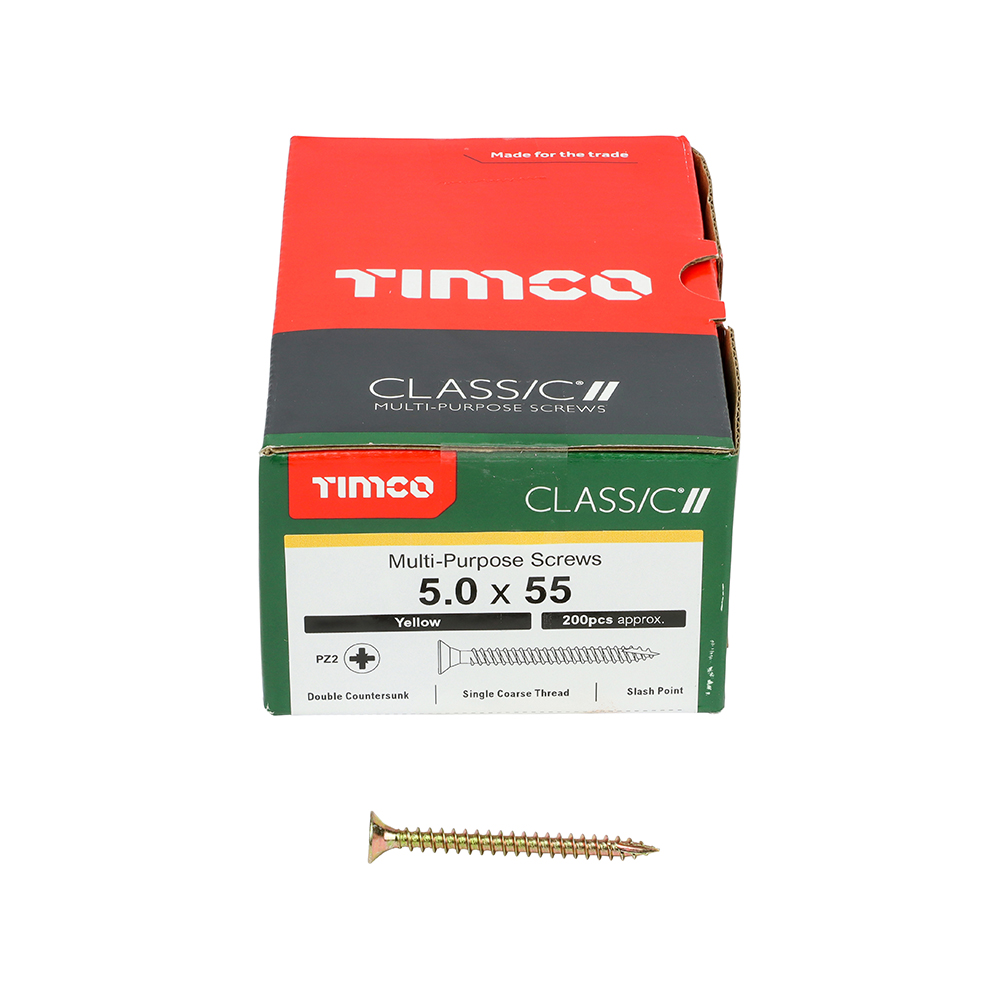

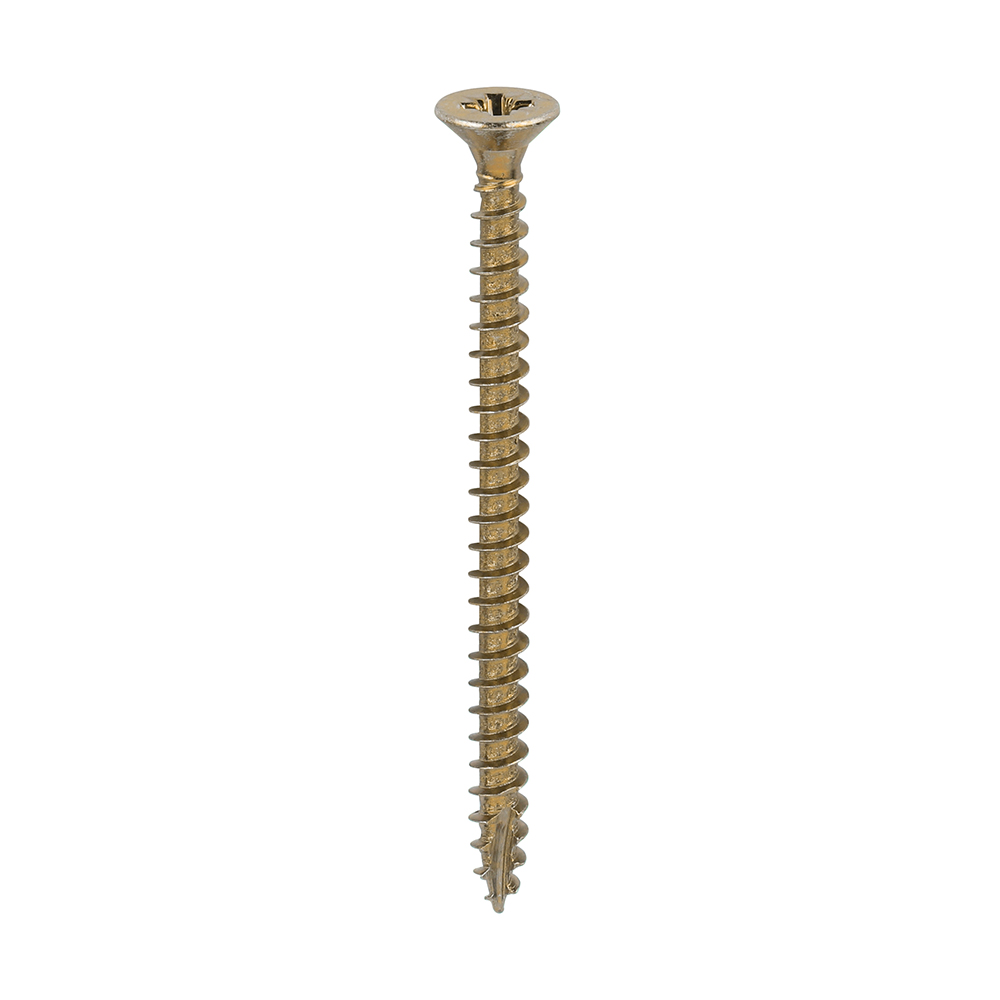

Classic Multi-Purpose Screws - PZ - Double Countersunk - Yellow
5.0 x 55
- Product Code: 50055CLAF
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017507450
