Product Information

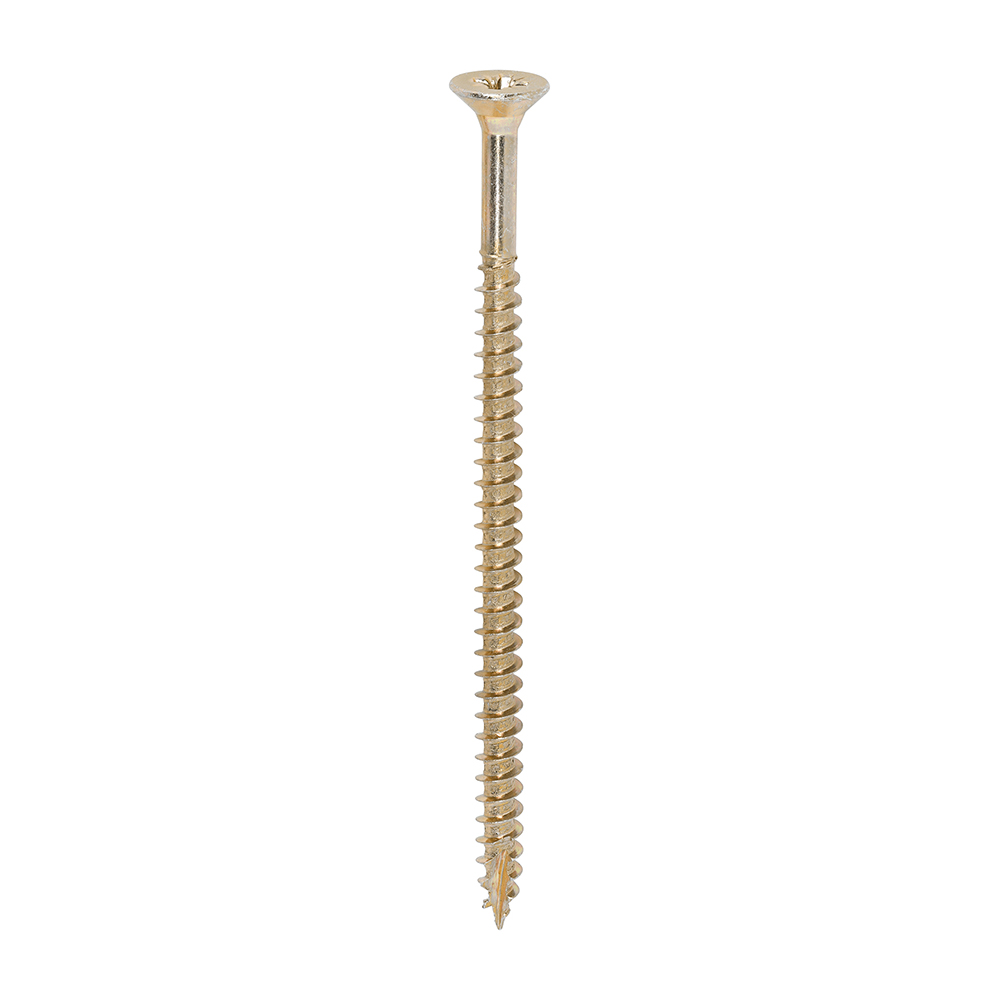

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Partially threaded.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Surface hardened to prevent torque shearing under load and core hardened for improved ductility
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 10
Finish Zinc & Yellow
Head Type Double Countersunk
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Partially Threaded
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Product Specification
Length inch 3 1/2
Length mm 90
Diameter mm 5.0
Size mm 5.0 x 90
Thread Length mm 70
Lubrication Gleitmo
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Pack Dimensions L x W x H mm 138 x 92 x 62
Pack Weight kg 0.74
Carton Qty Packs 15
Pallet Qty Packs 540
CE Standard Web BS EN 14592:2008
Product Code 50090CLAF
SKU Barcode 5055017507498
Size imp 10 x 3 1/2
Thread Dia mm 5
Inner Thread Dia mm 3.1
Head Dia mm 9.74
Attribute Group 1
Brand TIMCO

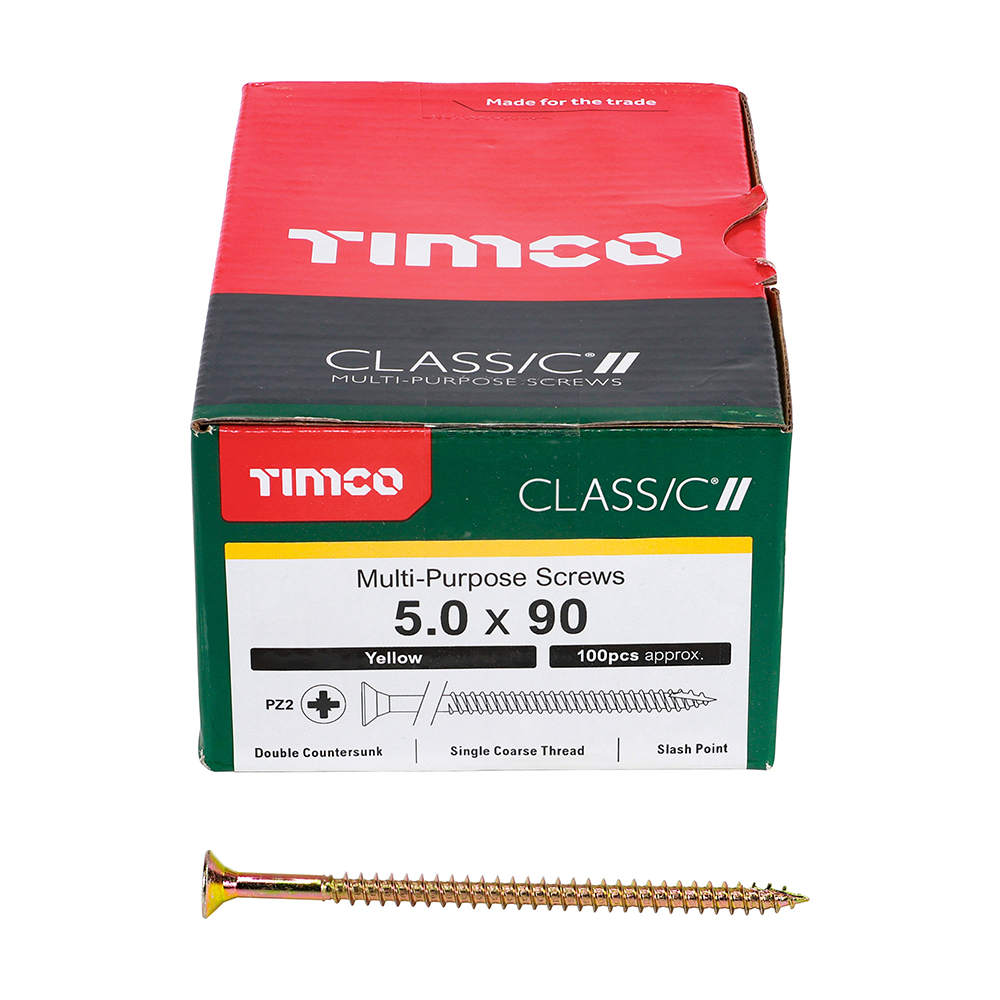

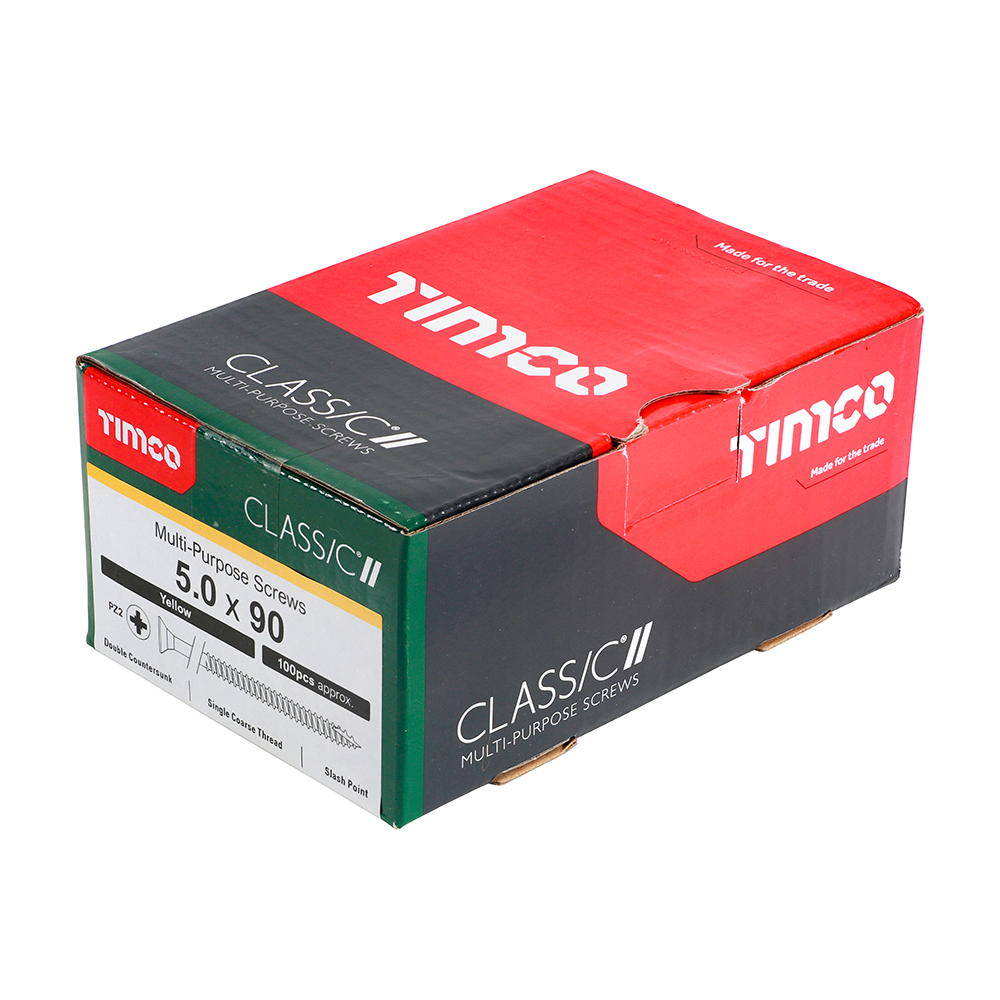

Classic Multi-Purpose Screws - PZ - Double Countersunk - Yellow

5.0 x 90

  • Product Code: 50090CLAF
  • Pack Type: Box
  • Pack Quantity: 100
  • Barcode: 5055017507498
