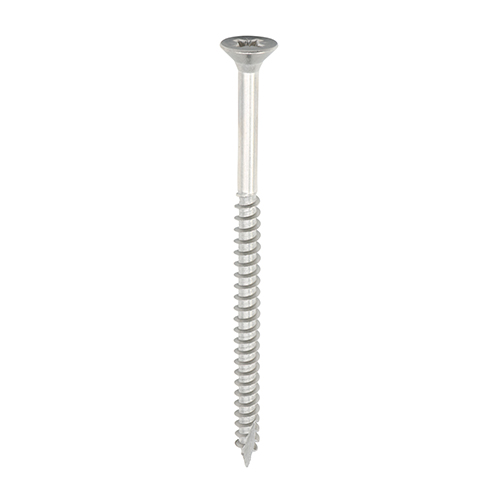

Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 10
Head Type Double Countersunk
Material Austenitic Stainless Steel (A2-304)
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Partially Threaded
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
Product Specification
Length inch 4
Length mm 100
Diameter mm 5.0
Size mm 5.0 x 100
Thread Length mm 70
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Pack Dimensions L x W x H mm 15 x 90 x 163
Pack Weight kg 0.036
Carton Qty Packs 10
Pallet Qty Packs N/A
CE Standard Web BS EN 14592:2008
Product Code 50100CHSSP
SKU Barcode 5055331846877
Size imp 10 x 4
Thread Dia mm 5
Inner Thread Dia mm 3.1
Head Dia mm 9.74
Attribute Group 1
Brand TIMCO

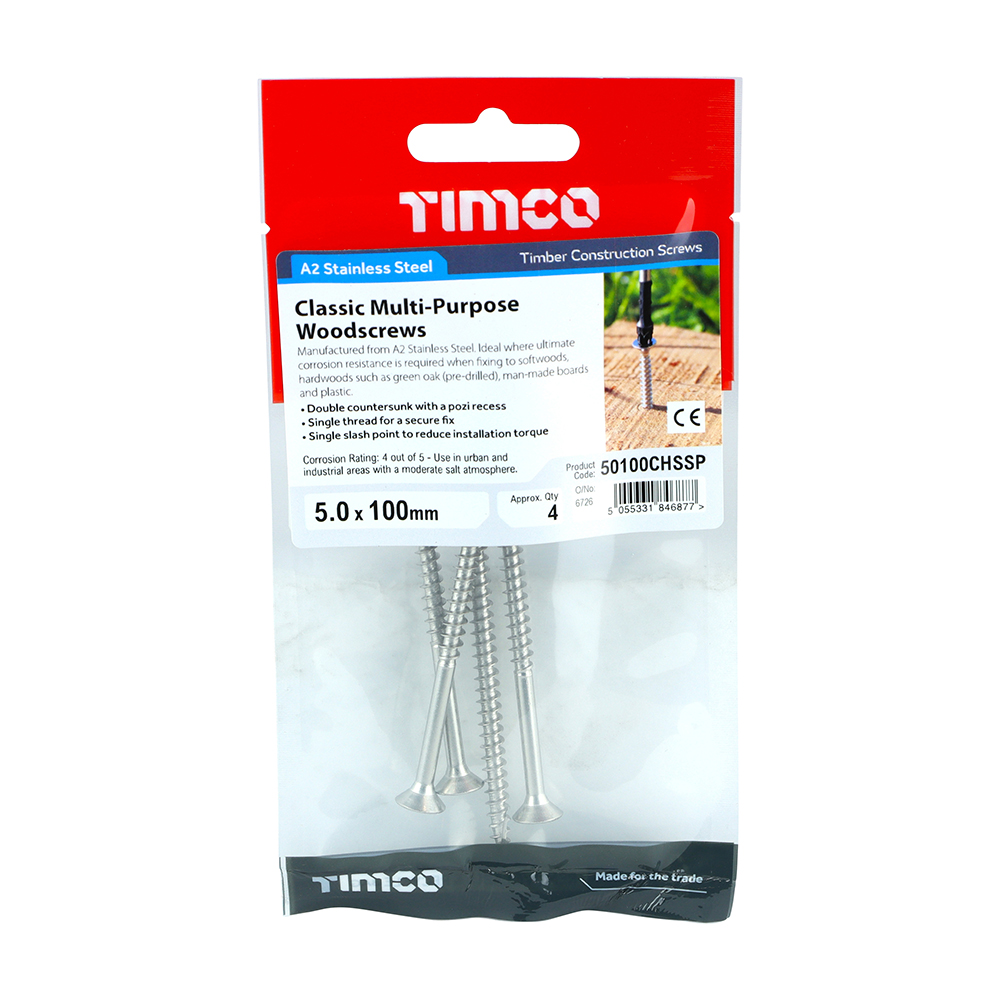

Classic Multi-Purpose Screws - PZ - Double Countersunk - Stainless Steel

5.0 x 100

  • Product Code: 50100CHSSP
  • Pack Type: TIMpac
  • Pack Quantity: 4
  • Barcode: 5055331846877
