Product Information
All the features and superior performance of the Classic Multi-Purpose Screw with a corrosion resistant coating to withstand over 1,000 hours salt spray. Designed to be used with black ironmongery.
- Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
Documents
Technical Specifications
Product Specification
| Gauge | 10 |
| Length inch | 1 1/2 |
| Length mm | 40 |
| Diameter mm | 5.0 |
| Size mm | 5.0 x 40 |
| Thread Length mm | 35 |
| Finish | Exterior (Black Organic) |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Single Coarse 40° |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
| Pack Dimensions L x W x H mm | 140 x 94 x 62 |
| Pack Weight kg | 0.72 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 50040CLAB |
| SKU Barcode | 5055017556847 |
| Size imp | 10 x 1 1/2 |
| Thread Dia mm | 5 |
| Inner Thread Dia mm | 3.1 |
| Head Dia mm | 9.74 |
Attribute Group 1
| Brand | TIMCO |

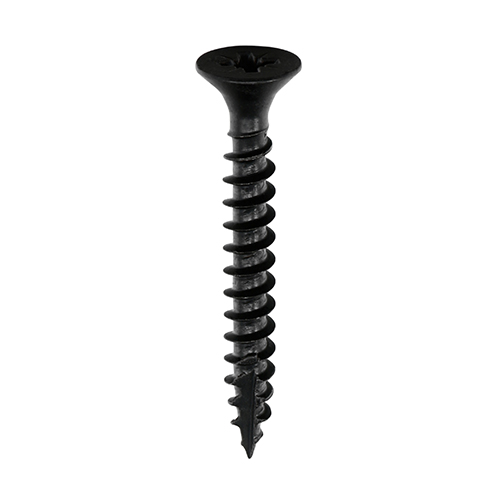

Classic Multi-Purpose Screws - PZ - Double Countersunk - Exterior - Black Organic
5.0 x 40
- Product Code: 50040CLAB

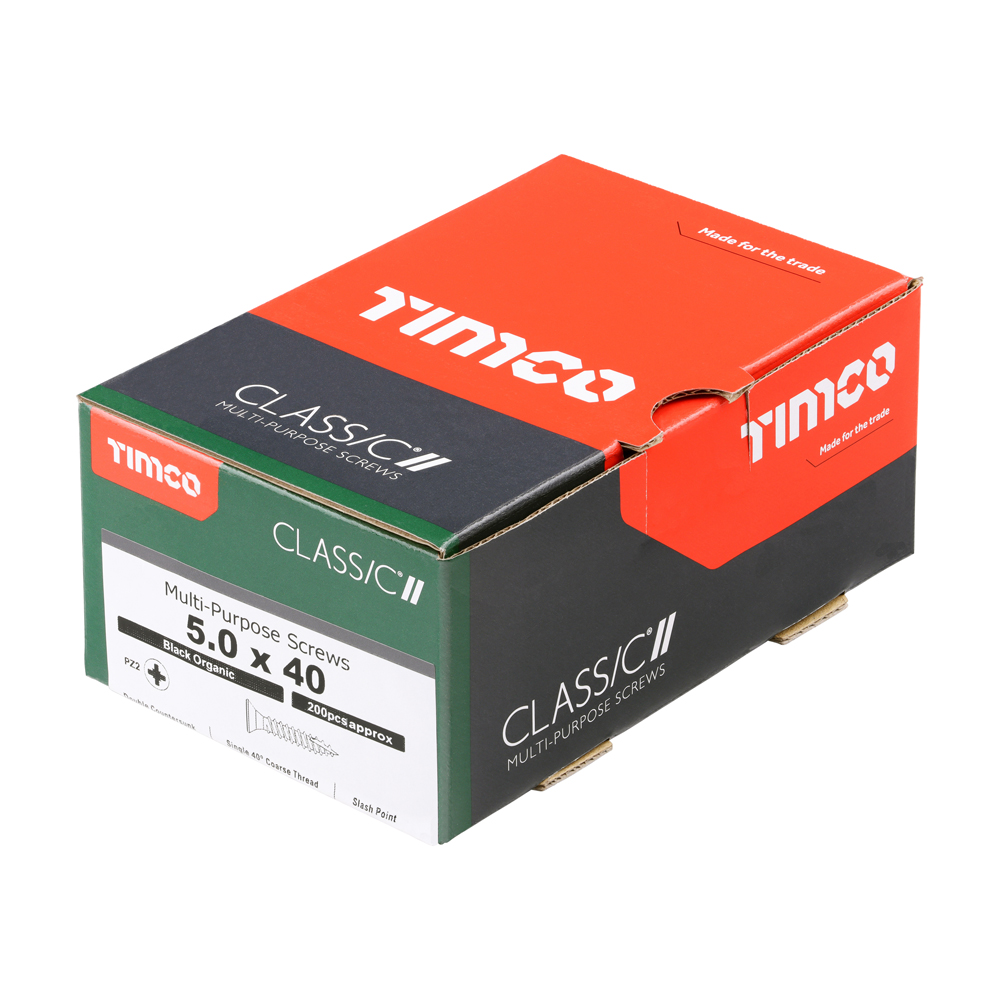

- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017556847
