Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from marine grade A4 Stainless Steel.
Ideal for coastal and highly corrosive environments when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic.
Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 6 |
| Head Type | Double Countersunk |
| Material | A4 Stainless Steel |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Single Coarse 40° |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
Product Specification
| Length inch | 1 1/4 |
| Length mm | 30 |
| Diameter mm | 3.5 |
| Size mm | 3.5 x 30 |
| Thread Length mm | 25 |
| Corrosion Rating | 5 - Industrial & coastal areas with an aggressive salt atmosphere |
| Pack Dimensions L x W x H mm | 85 x 55 x 45 |
| Pack Weight kg | 0.26 |
| Carton Qty Packs | 75 |
| Pallet Qty Packs | 1800 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 35030CLA4 |
| SKU Barcode | 5056110862354 |
| Size imp | 6 x 1 1/4 |
| Thread Dia mm | 3.5 |
| Inner Thread Dia mm | 2.25 |
| Head Dia mm | 6.68 |
Attribute Group 1
| Brand | TIMCO |

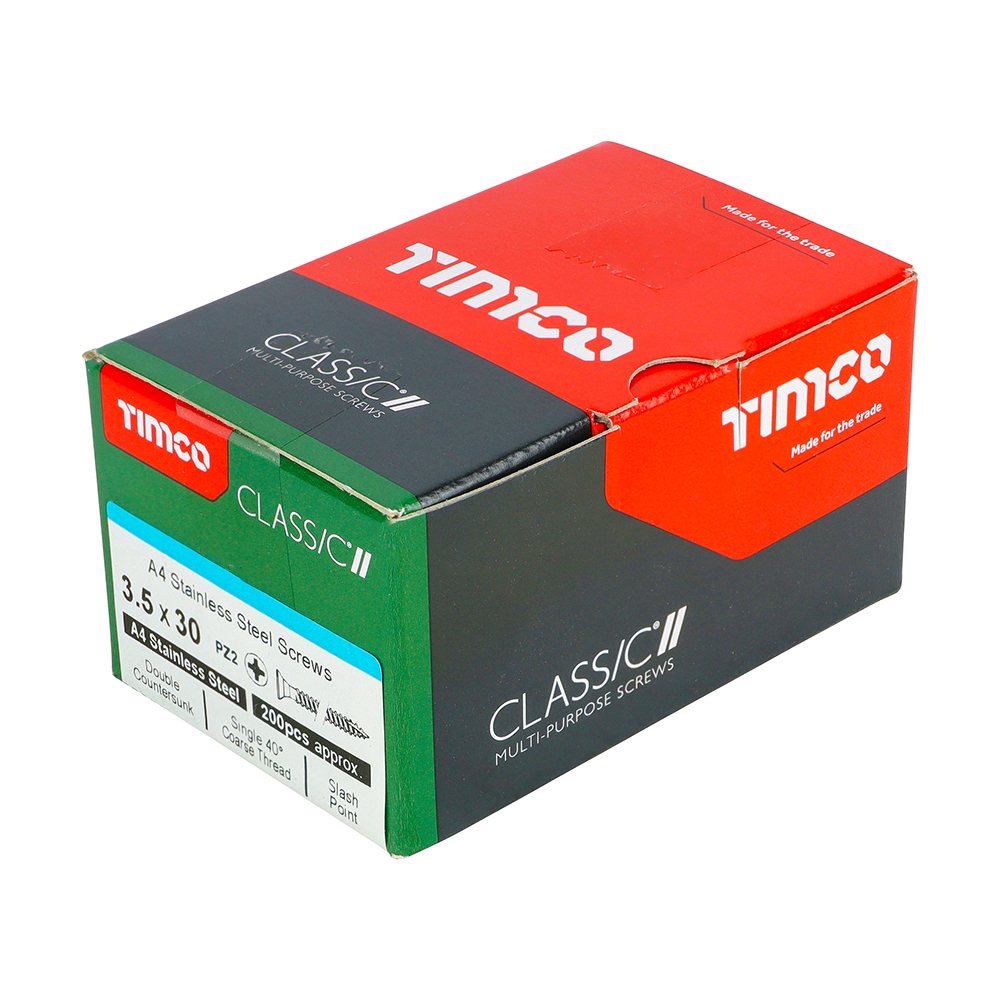

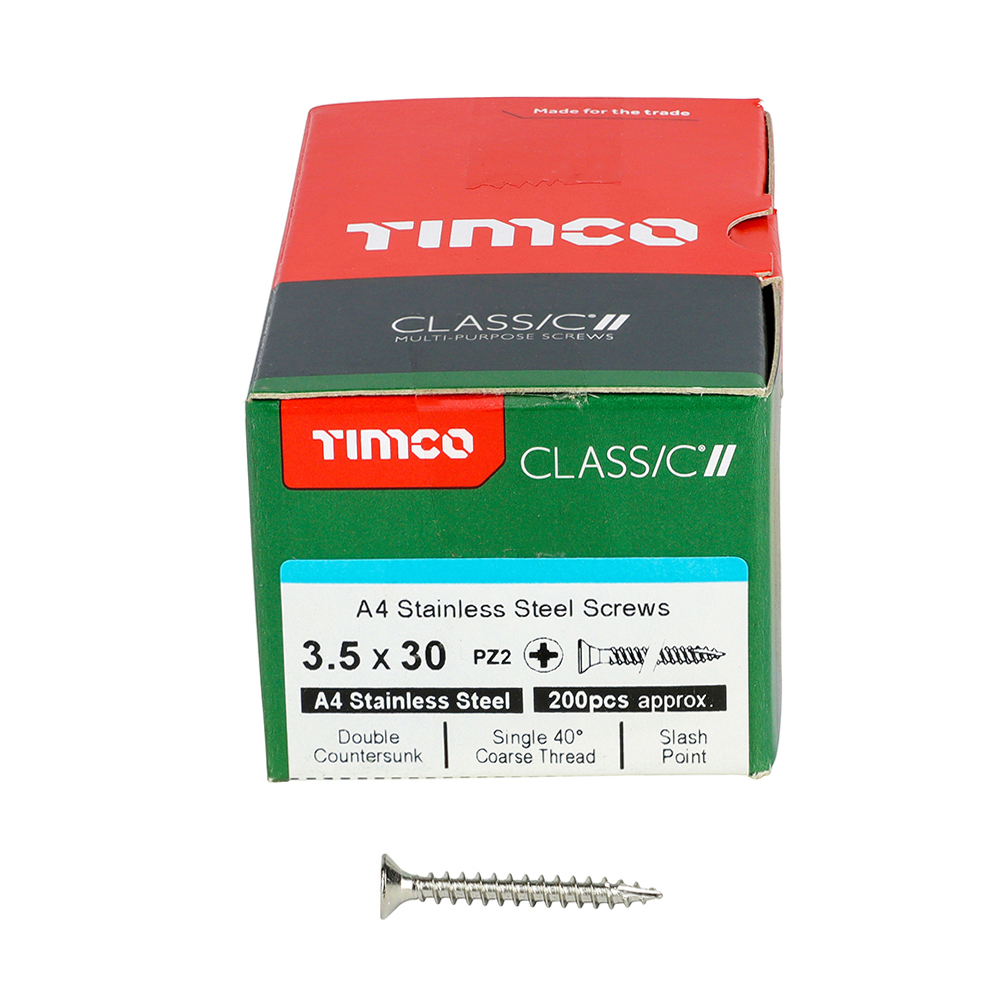

Classic Multi-Purpose Screws - PZ - Double Countersunk - A4 Stainless Steel
3.5 x 30
- Product Code: 35030CLA4
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5056110862354
