Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from marine grade A4 Stainless Steel. Ideal for coastal and highly corrosive environments when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 8
Head Type Double Countersunk
Material A4 Stainless Steel
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
Product Specification
Length inch 1 3/8
Length mm 35
Diameter mm 4.0
Size mm 4.0 x 35
Thread Length mm 30
Corrosion Rating 5 - Industrial & coastal areas with an aggressive salt atmosphere
Pack Dimensions L x W x H mm 92 x 72 x 58
Pack Weight kg 0.4
Carton Qty Packs 50
Pallet Qty Packs 1200
CE Standard Web BS EN 14592:2008
Product Code 40035CLA4
SKU Barcode 5056110862385
Size imp 8 x 1 3/8
Thread Dia mm 4
Inner Thread Dia mm 2.5
Head Dia mm 7.87
Attribute Group 1
Brand TIMCO

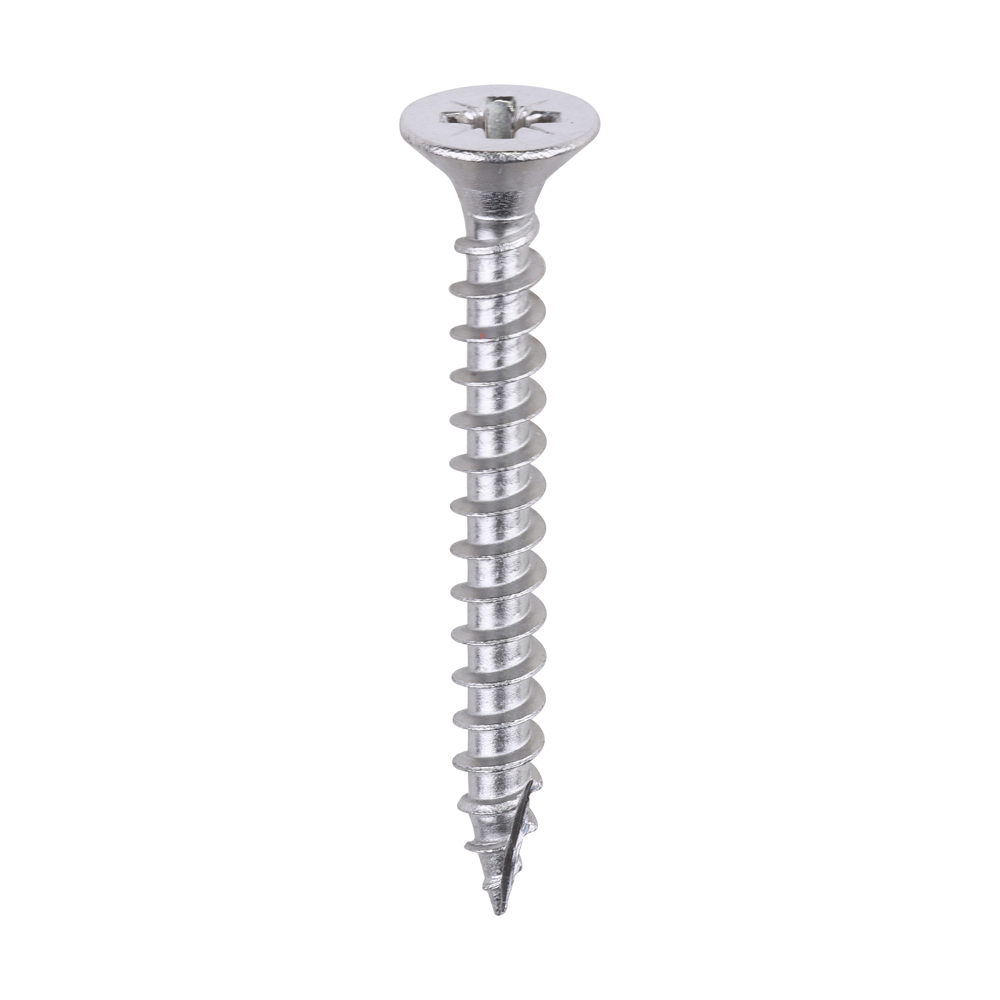

Classic Multi-Purpose Screws - PZ - Double Countersunk - A4 Stainless Steel

4.0 x 35

  • Product Code: 40035CLA4

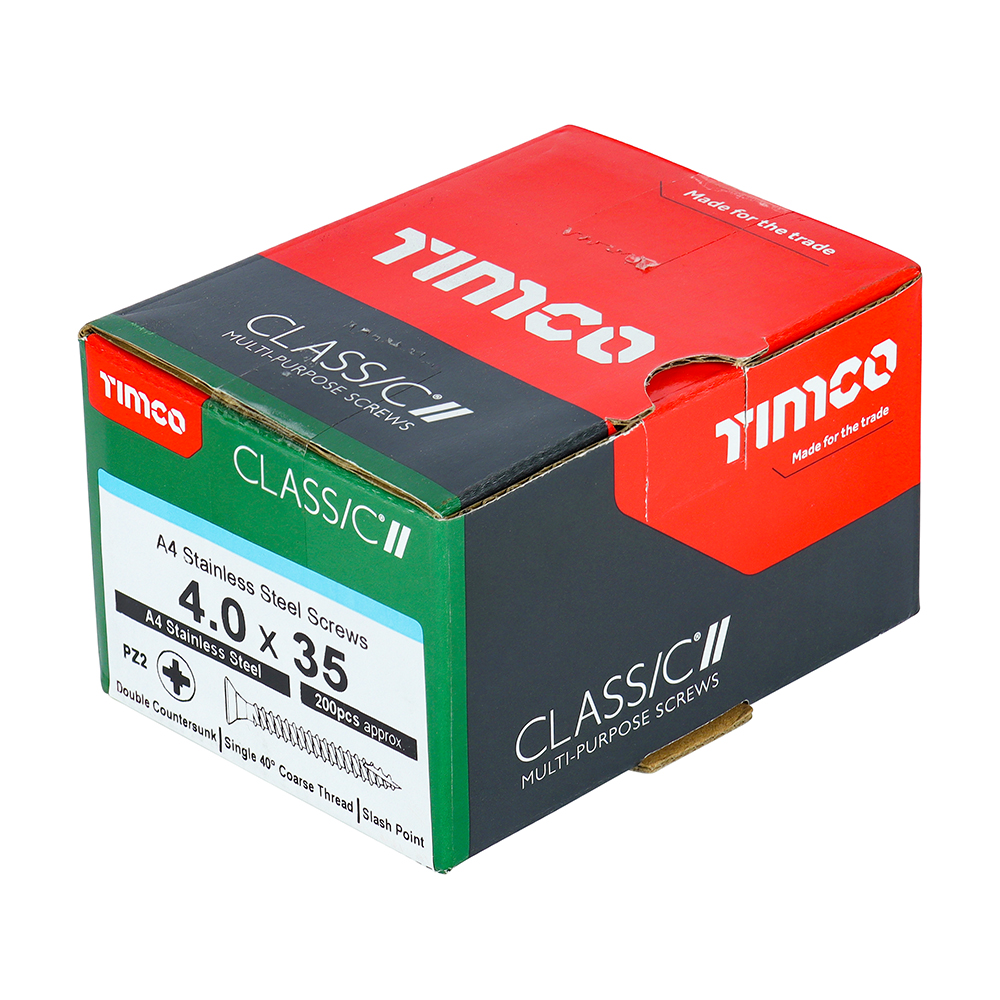

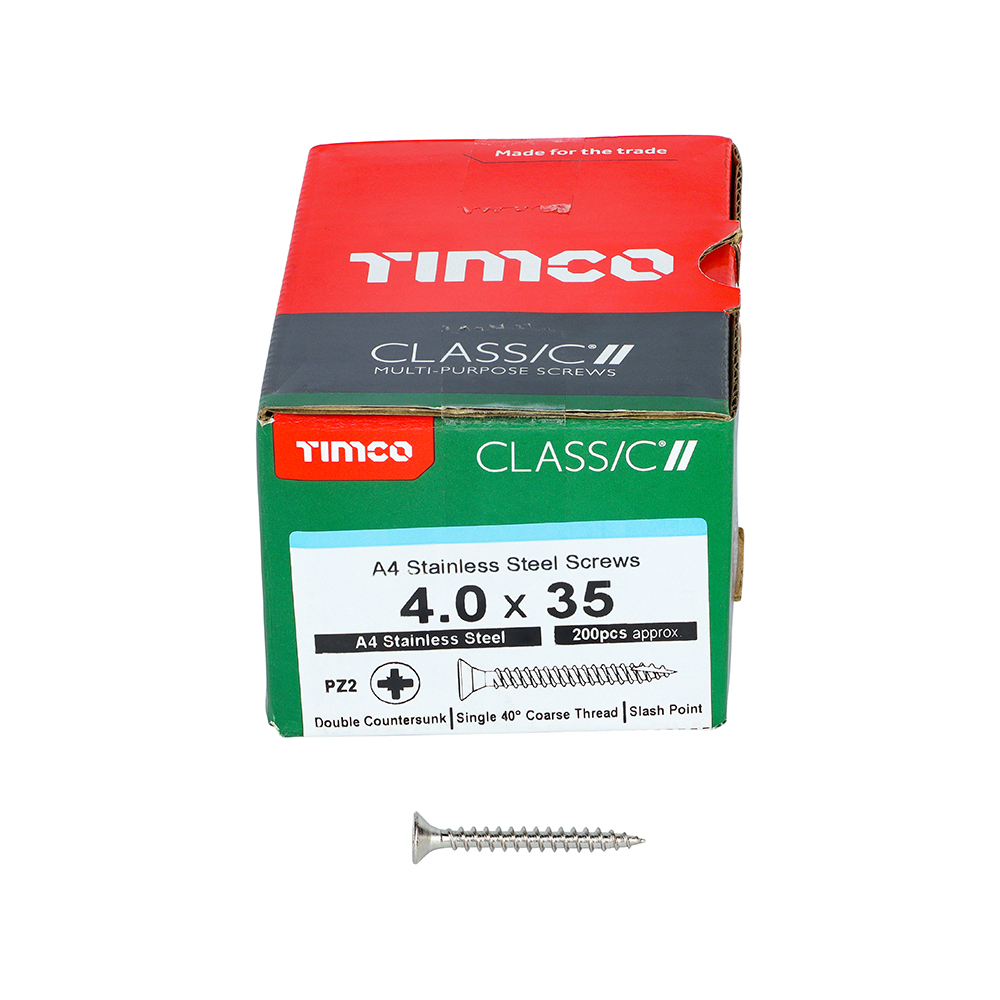

  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5056110862385
