Product Information

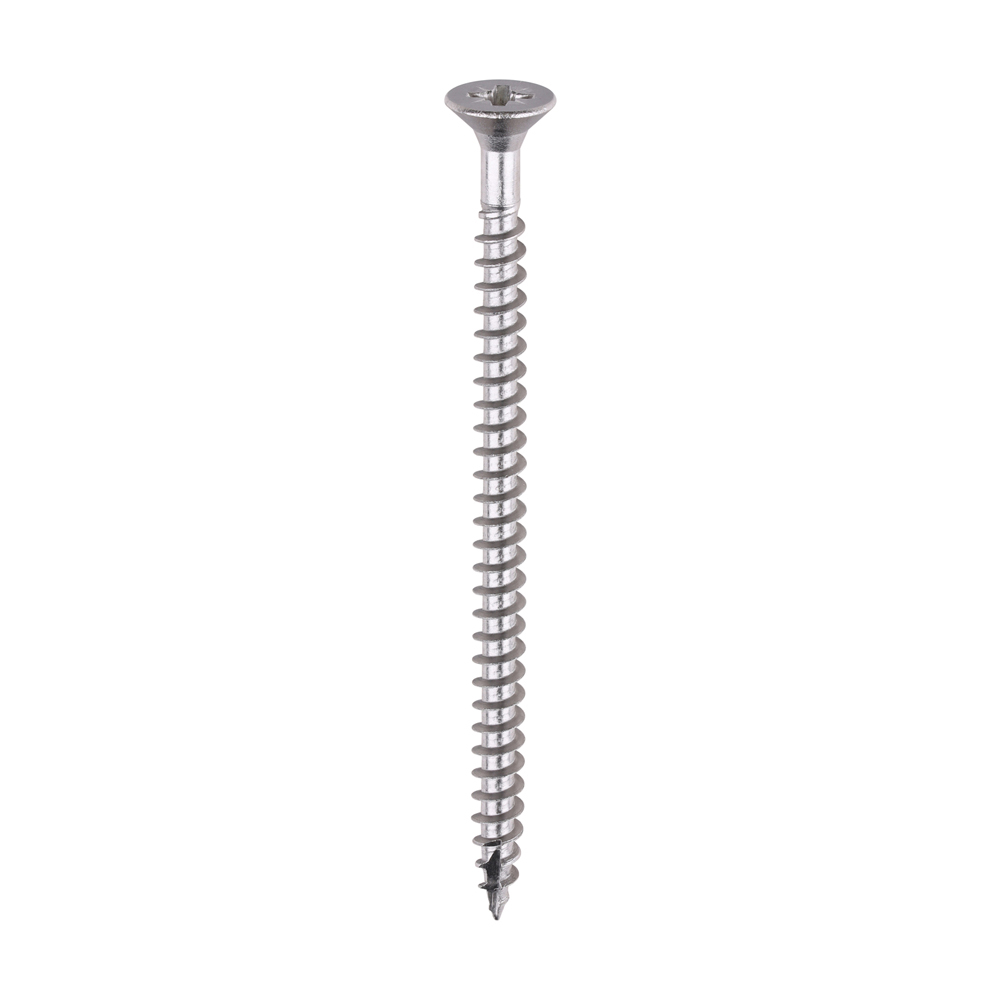

All the features and superior performance of the Classic Multi-Purpose Screw manufactured from marine grade A4 Stainless Steel. Ideal for coastal and highly corrosive environments when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specification
Gauge 10
Length inch 3
Length mm 80
Diameter mm 5.0
Size mm 5.0 x 80
Thread Length mm 70
Head Type Double Countersunk
Material A4 Stainless Steel
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type Single Coarse 40°
Corrosion Rating 5 - Industrial & coastal areas with an aggressive salt atmosphere
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
Pack Dimensions L x W x H mm 138 x 94 x 92
Pack Weight kg 1.3
Carton Qty Packs 16
Pallet Qty Packs 384
CE Standard Web BS EN 14592:2008
Product Code 50080CLA4
SKU Barcode 5056110862484
Size imp 10 x 3
Thread Dia mm 5
Inner Thread Dia mm 3.1
Head Dia mm 9.74
Attribute Group 1
Brand TIMCO

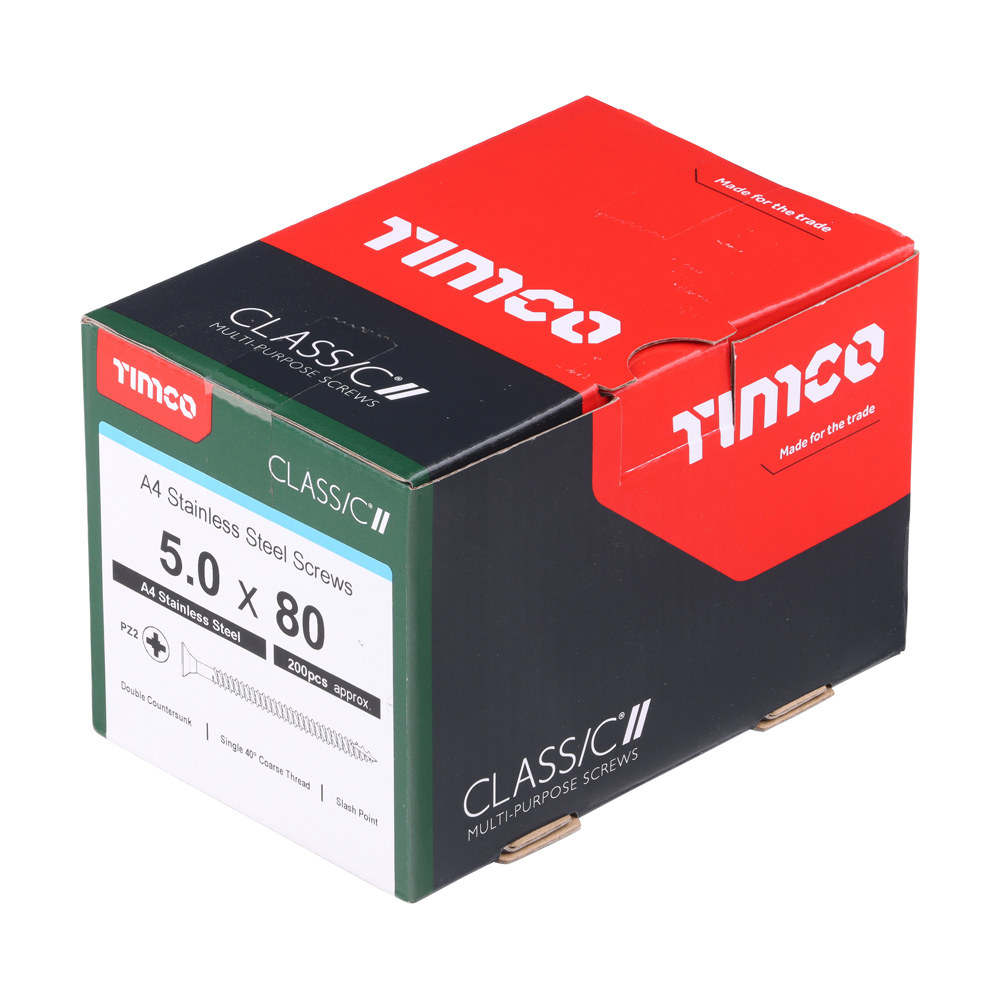

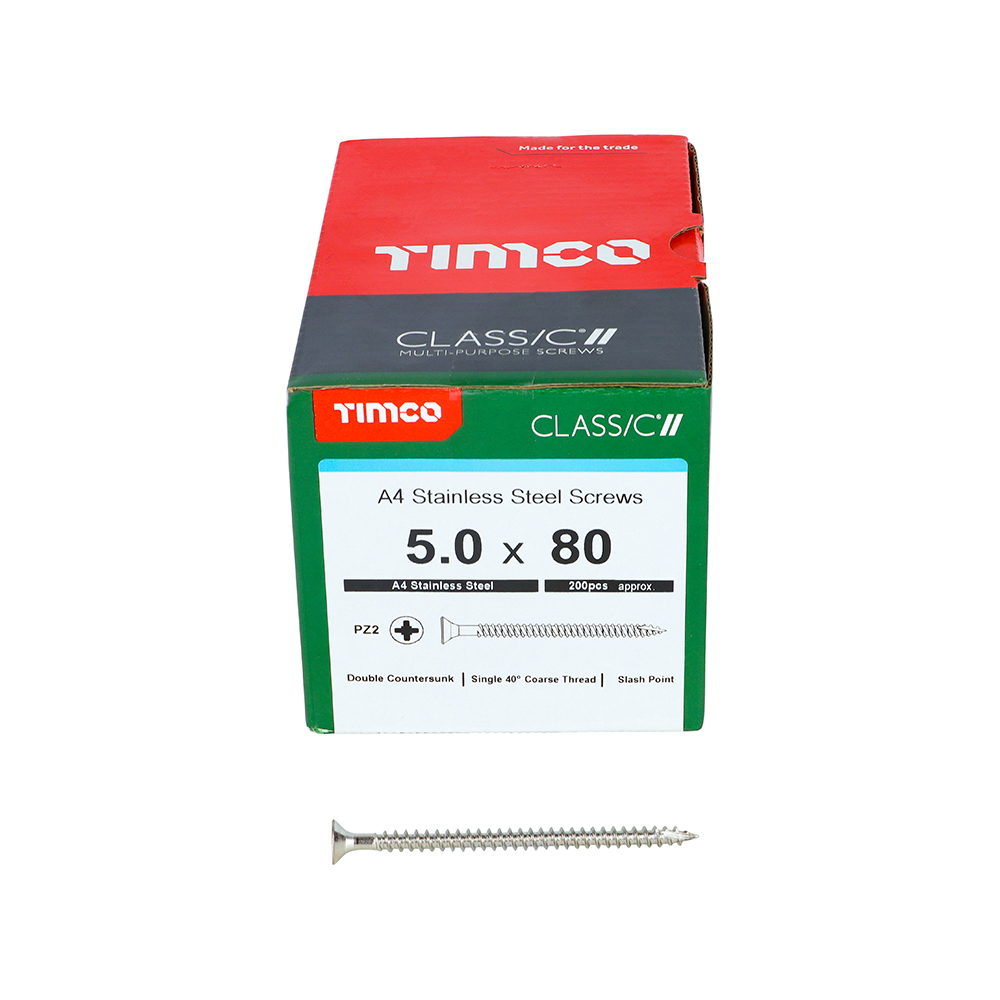

Classic Multi-Purpose Screws - PZ - Double Countersunk - A4 Stainless Steel

5.0 x 80

  • Product Code: 50080CLA4
  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5056110862484
