Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 6
Head Type Double Countersunk
Material Austenitic Stainless Steel (A2-304)
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
Product Specification
Length inch 1 1/2
Length mm 40
Diameter mm 3.5
Size mm 3.5 x 40
Thread Length mm 35
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Pack Dimensions L x W x H mm 92 x 72 x 56
Pack Weight kg 0.34
Carton Qty Packs 50
Pallet Qty Packs 1200
CE Standard Web BS EN 14592:2008
Product Code 35040CLASS
SKU Barcode 5055017523887
Size imp 6 x 1 1/2
Thread Dia mm 3.5
Inner Thread Dia mm 2.25
Head Dia mm 6.68
Attribute Group 1
Brand TIMCO

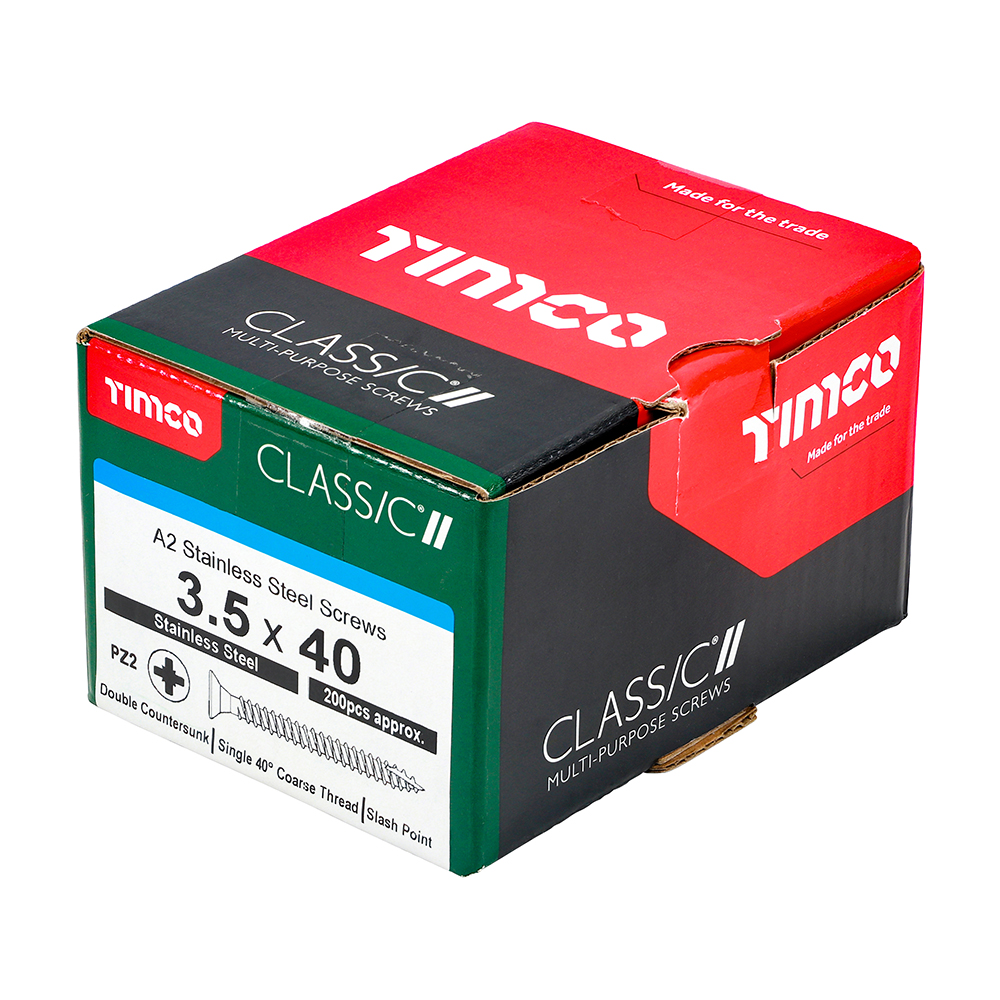

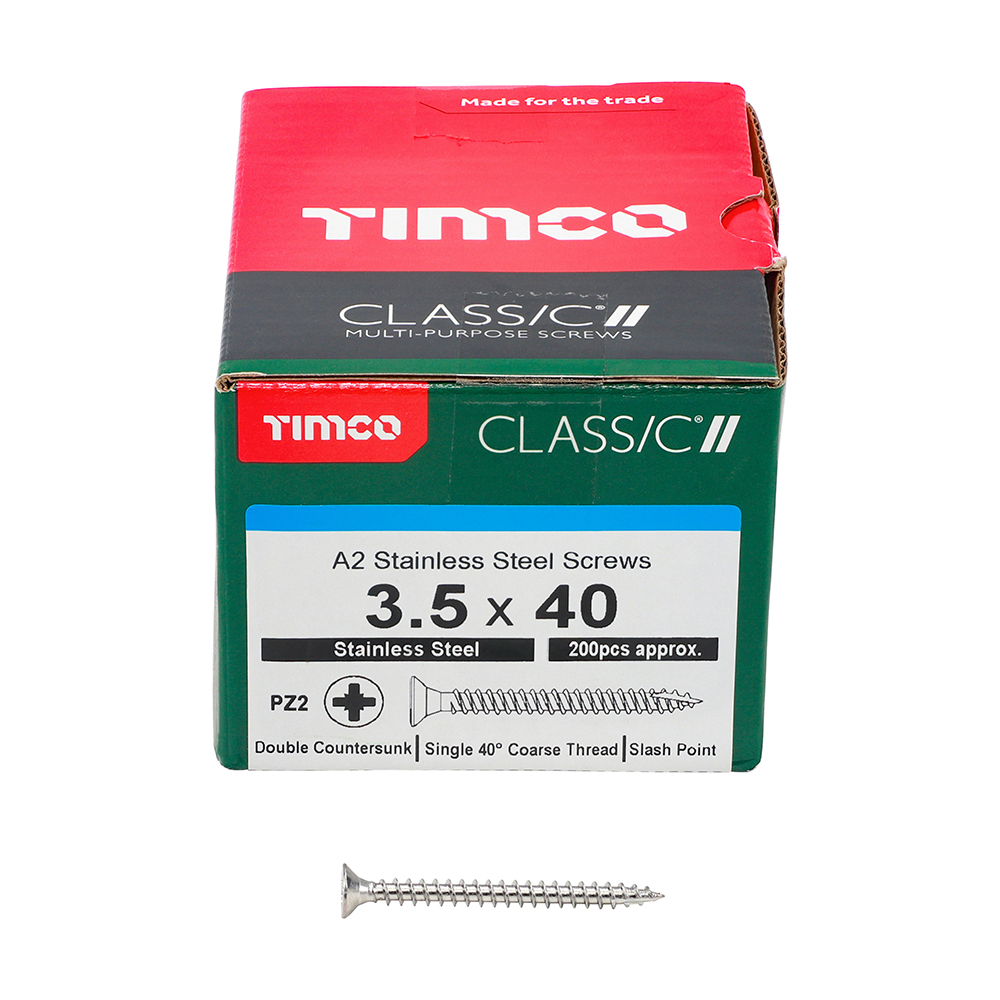

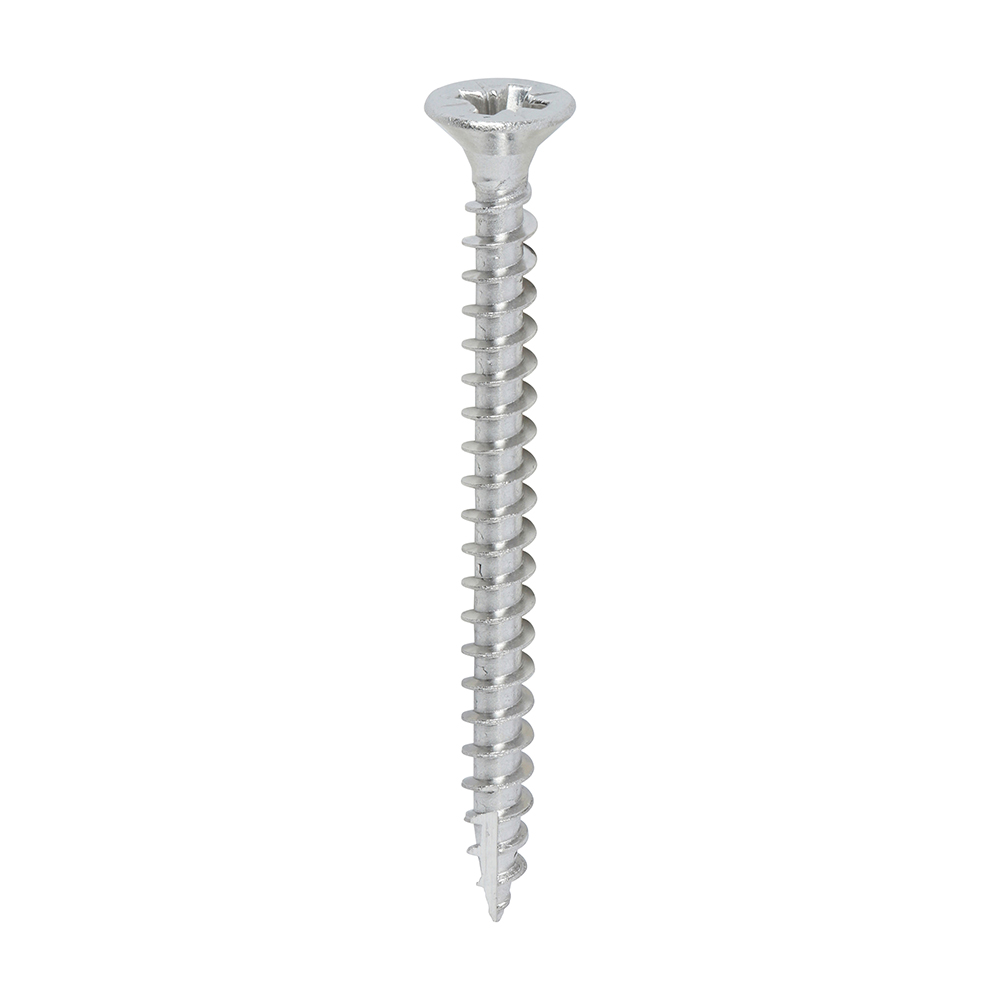

Classic Multi-Purpose Screws - PZ - Double Countersunk - A2 Stainless Steel

3.5 x 40

  • Product Code: 35040CLASS
  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5055017523887
