Product Information

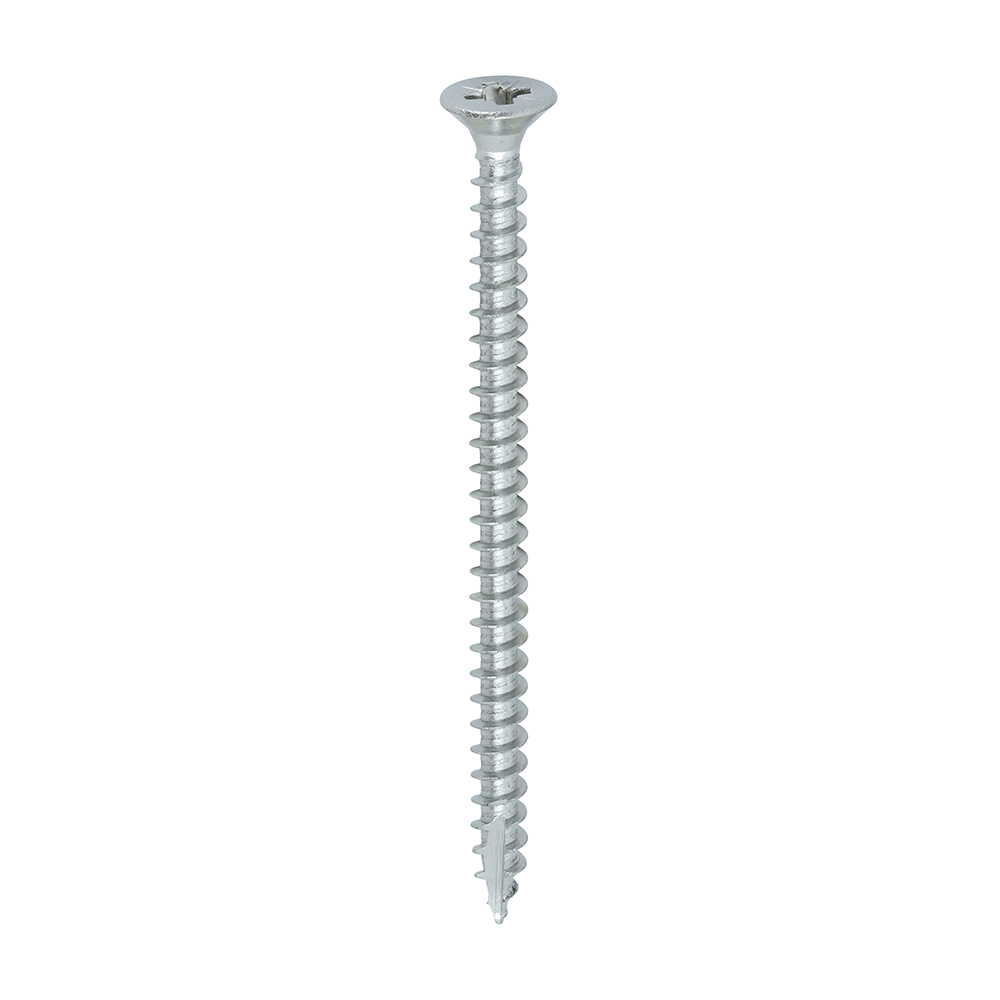

All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 8
Head Type Double Countersunk
Material Austenitic Stainless Steel (A2-304)
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
Product Specification
Length inch 2 1/2
Length mm 60
Diameter mm 4.0
Size mm 4.0 x 60
Thread Length mm 55
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Pack Dimensions L x W x H mm 136 x 94 x 62
Pack Weight kg 0.64
Carton Qty Packs 15
Pallet Qty Packs 540
CE Standard Web BS EN 14592:2008
Product Code 40060CLASS
SKU Barcode 5055017524013
Size imp 8 x 2 1/2
Thread Dia mm 4
Inner Thread Dia mm 2.5
Head Dia mm 7.87
Attribute Group 1
Brand TIMCO

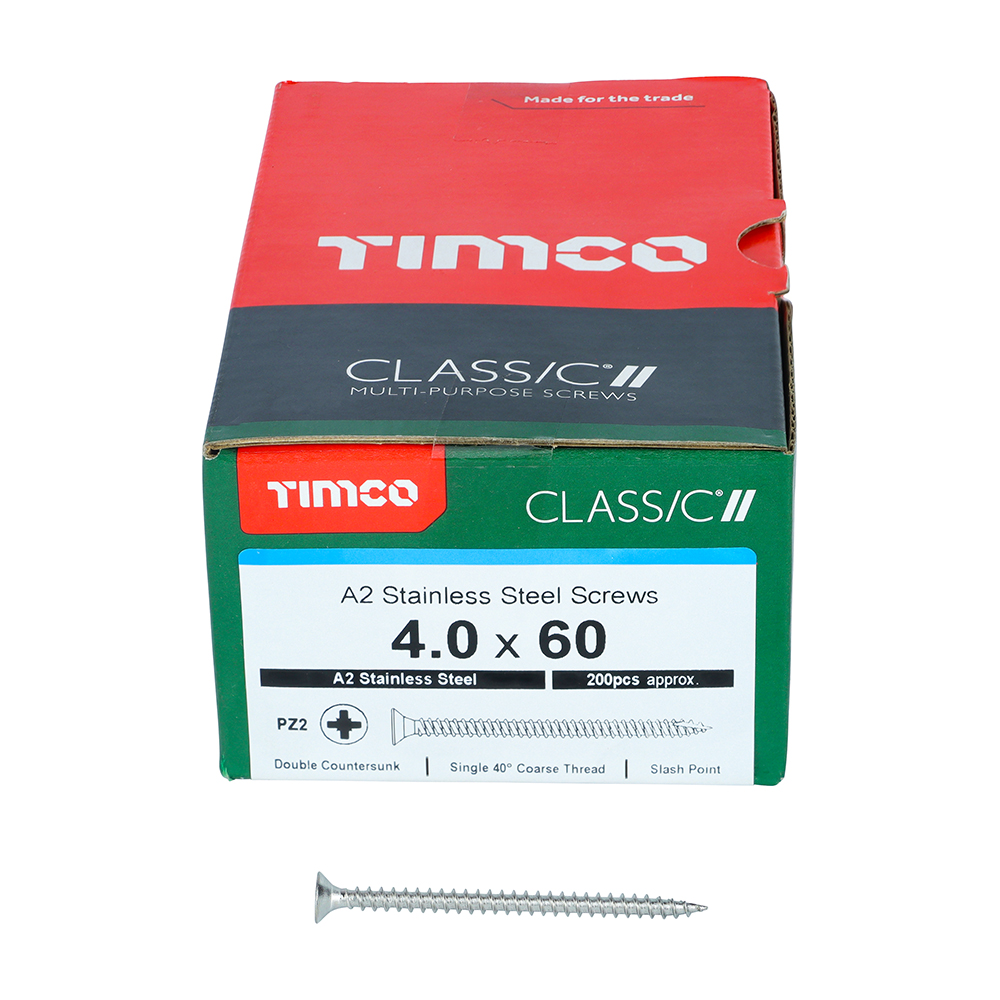

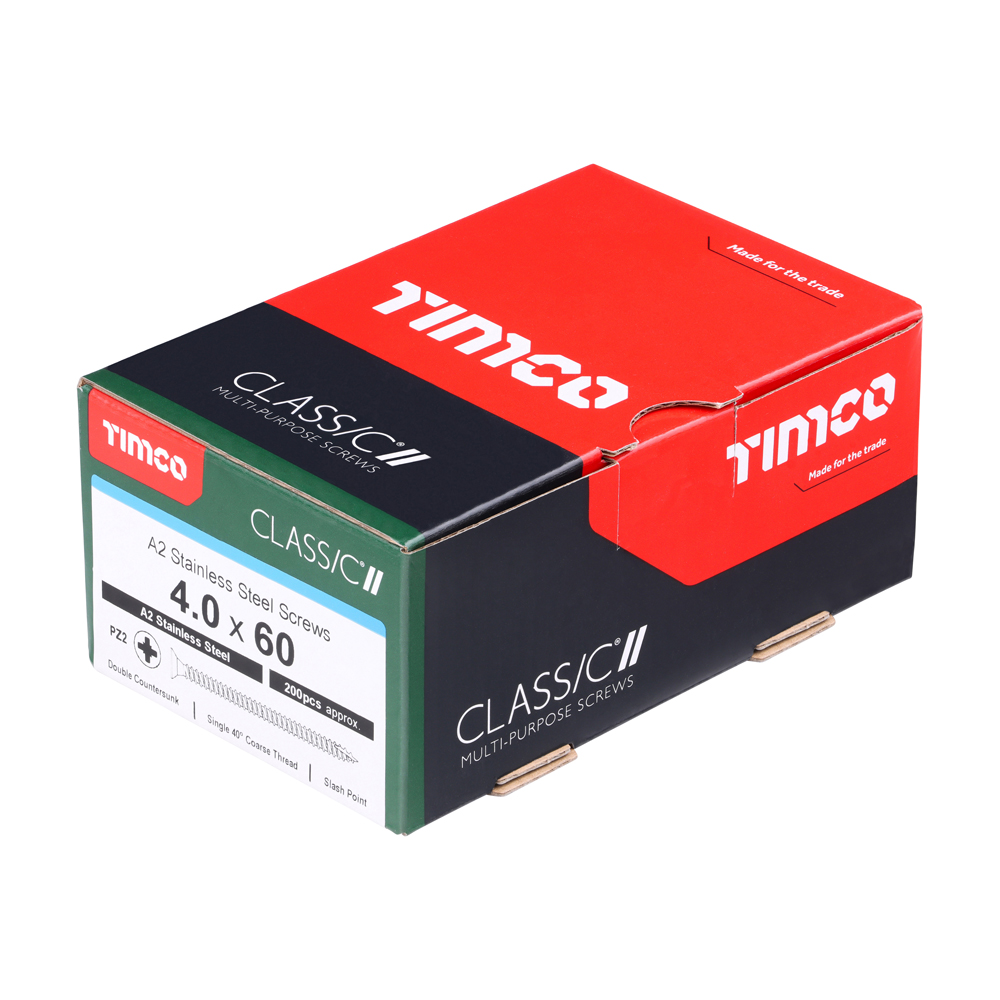

Classic Multi-Purpose Screws - PZ - Double Countersunk - A2 Stainless Steel

4.0 x 60

  • Product Code: 40060CLASS
  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5055017524013
