Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specification
Gauge 12
Length inch 4
Length mm 100
Diameter mm 6.0
Size mm 6.0 x 100
Thread Length mm 70
Head Type Double Countersunk
Material Austenitic Stainless Steel (A2-304)
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Coverage Partially Threaded
Thread Type Single Coarse 40°
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Driver Bit Size PZ3
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
Pack Dimensions L x W x H mm 138 x 94 x 62
Pack Weight kg 1.2
Carton Qty Packs 15
Pallet Qty Packs 540
CE Standard Web BS EN 14592:2008
Product Code 60100CLASS
SKU Barcode 5055017524358
Size imp 12 x 4
Thread Dia mm 6
Inner Thread Dia mm 3.8
Head Dia mm 11.57
Attribute Group 1
Brand TIMCO

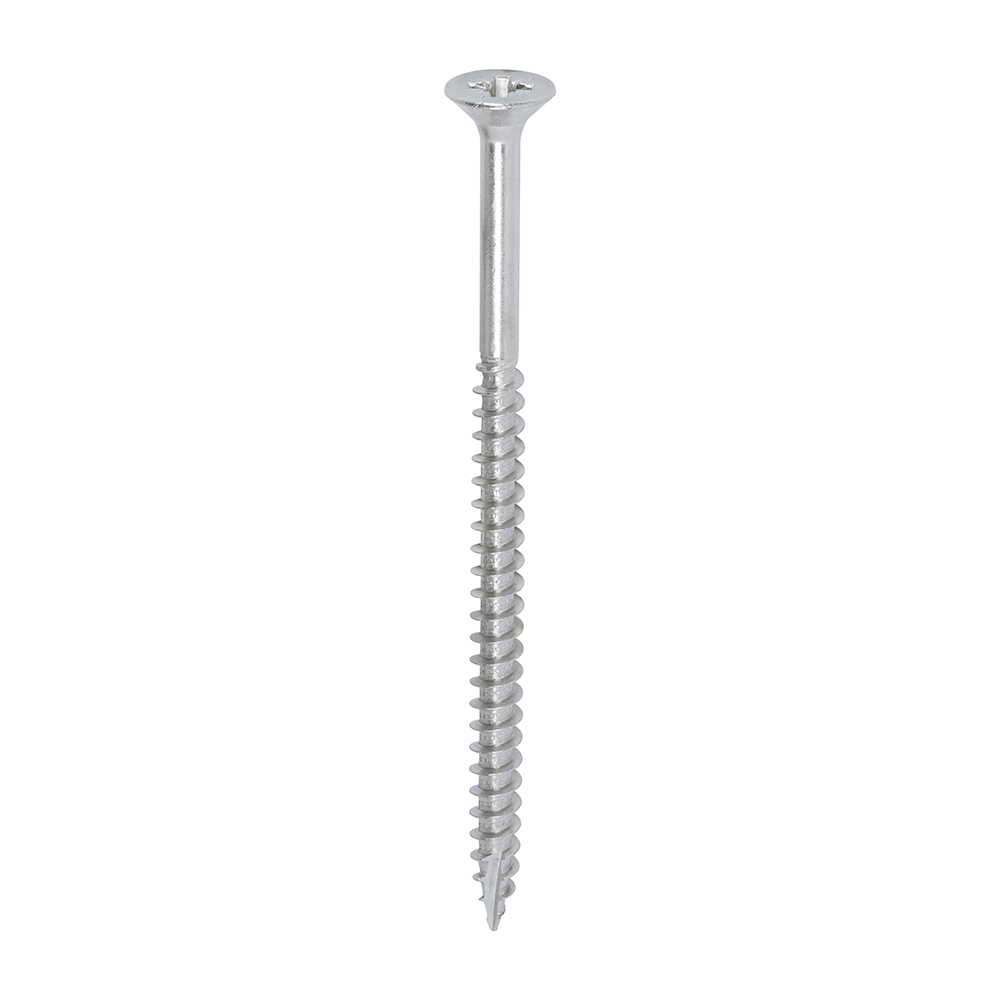

Classic Multi-Purpose Screws - PZ - Double Countersunk - A2 Stainless Steel

6.0 x 100

  • Product Code: 60100CLASS

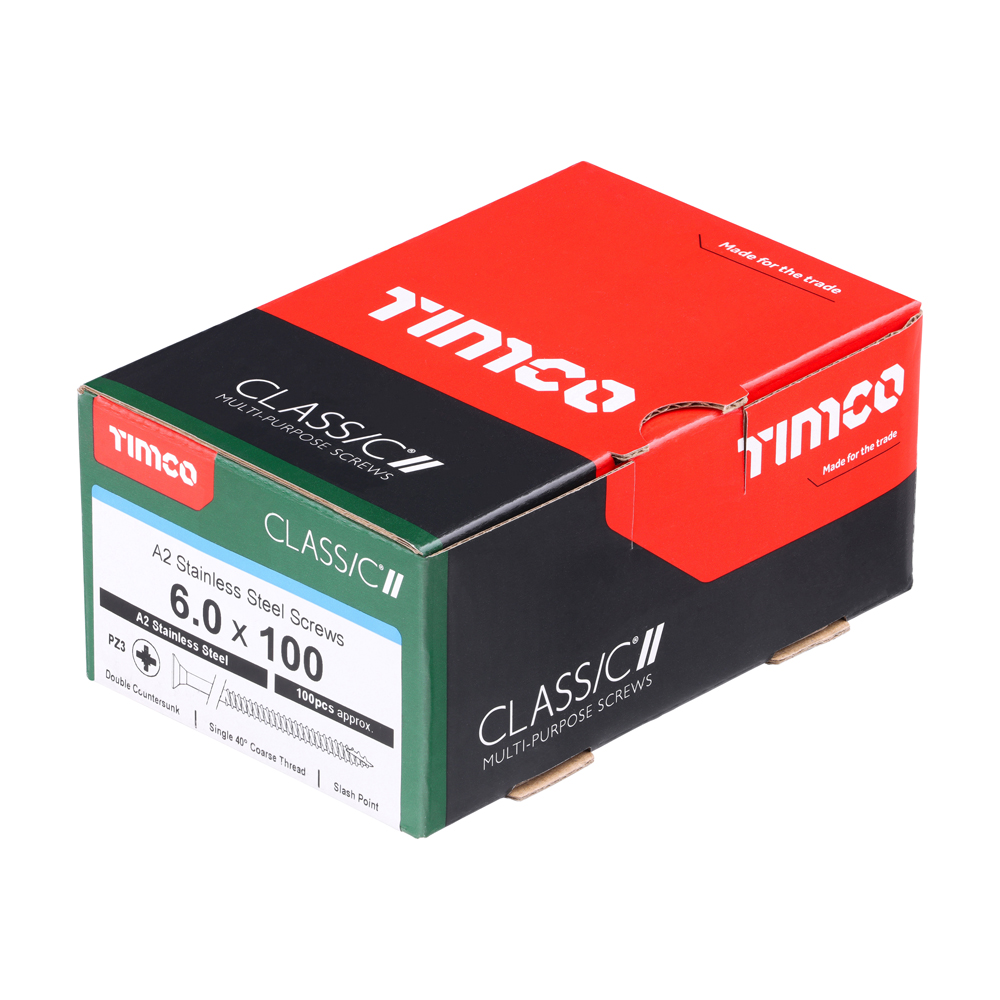

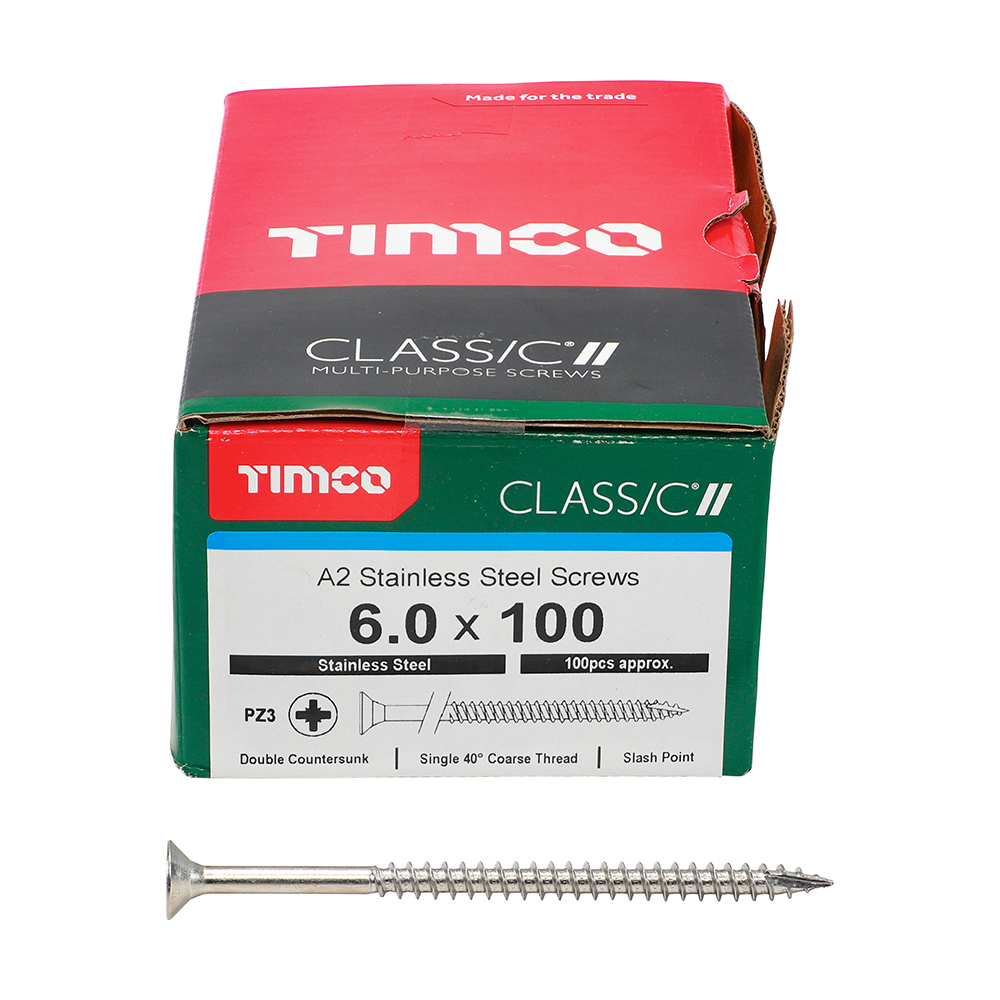

  • Pack Type: Box
  • Pack Quantity: 100
  • Barcode: 5055017524358
