Product Information
Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Single slash from 25mm.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Surface hardened to prevent torque shearing under load and core hardened for improved ductility
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specification
Size mm Assorted
Lubrication Gleitmo
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Pack Dimensions L x W x H mm 42 x 298 x 168
Pack Weight kg 1.82
Carton Qty Packs 6
Pallet Qty Packs 108
CE Standard Web BS EN 14592:2008
Product Code CLASSICTRAY
SKU Barcode 5055331818218
Size imp Assorted
Product Specifications
Finish Zinc & Yellow
Head Type Double Countersunk
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type Pozi
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Contents 3.5 x 16mm (Qty 200), 3.5 x 25mm (Qty 100), 3.5 x 30mm (Qty 100), 4.0 x 20mm (Qty 100), 4.0 x 25mm (Qty 60), 4.0 x 30mm (Qty 50), 4.0 x 40mm (Qty 70), 4.0 x 50mm (Qty 60), 4.0 x 60mm (Qty 50), 5.0 x 40mm (Qty 30), 5.0 x 50mm (Qty 40), 5.0 x 60mm (Qty 35)
Attribute Group 1
Brand TIMCO

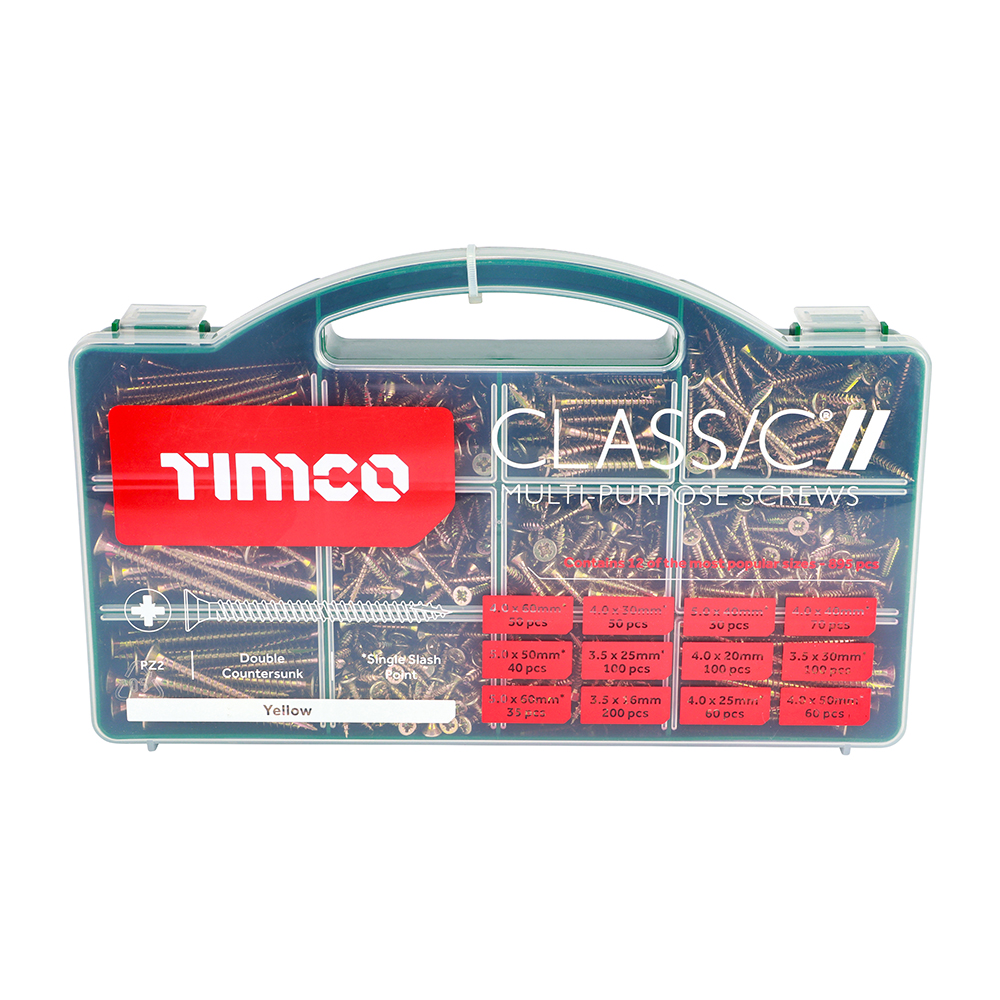

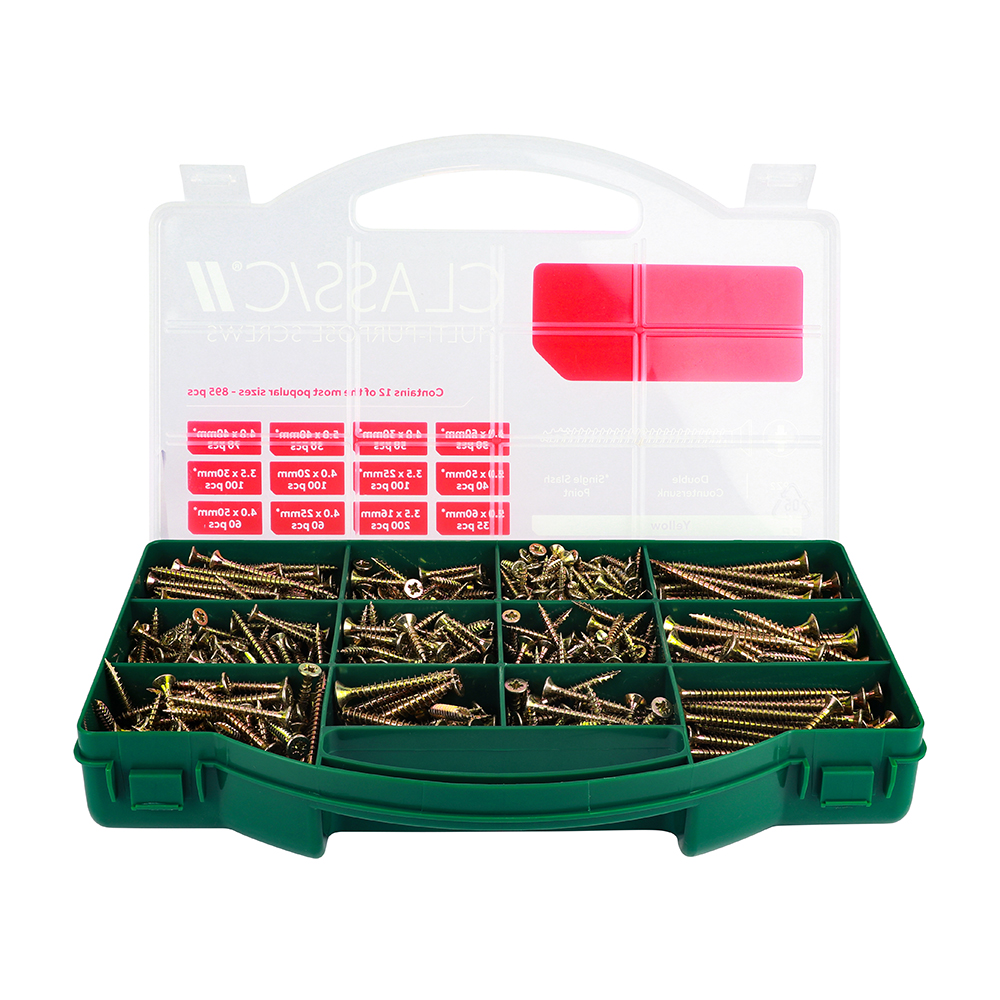

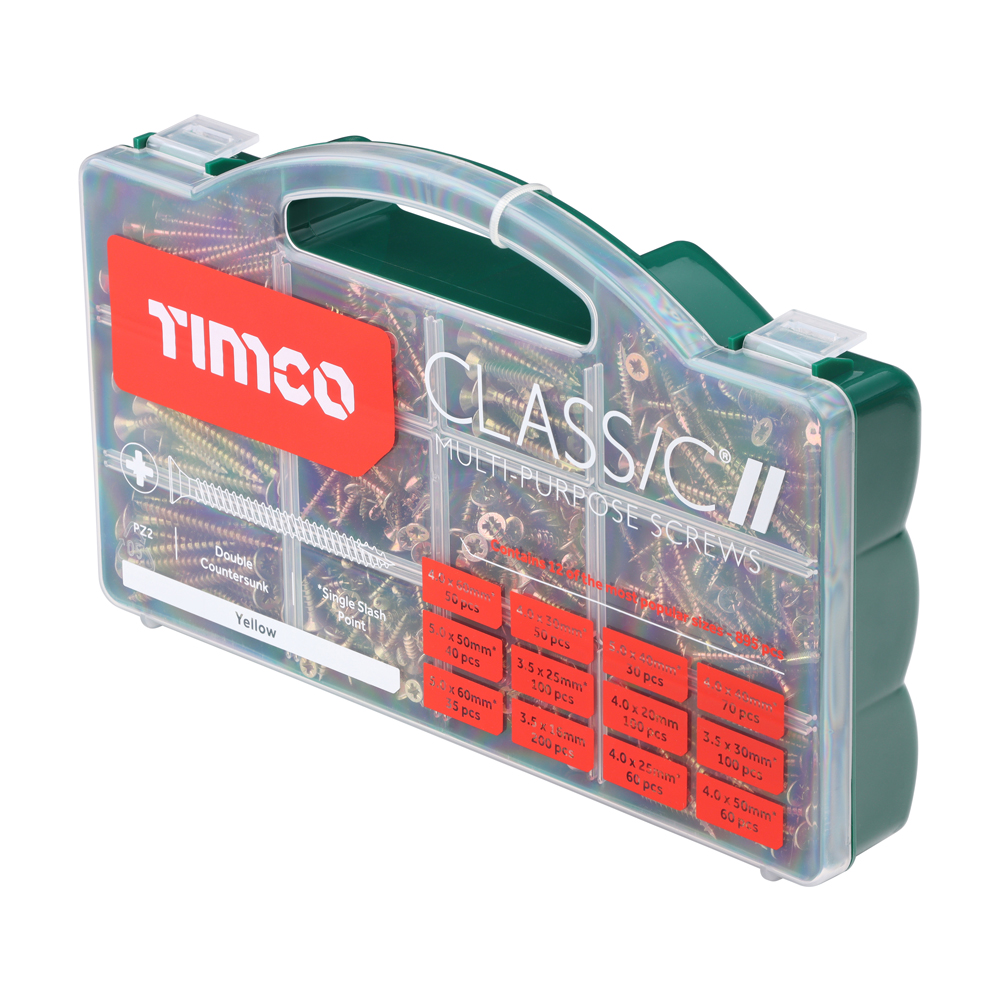

Classic Multi-Purpose Screws - Mixed Tray - PZ - Double Countersunk - Yellow

895pcs

  • Product Code: CLASSICTRAY
  • Pack Type: Tray
  • Pack Quantity: 895
  • Barcode: 5055331818218
