Product Information

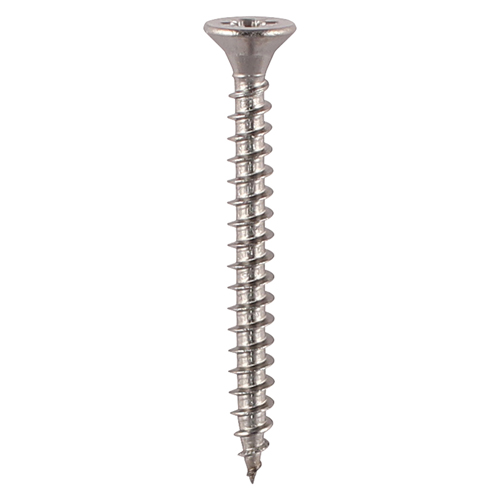

All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. NOTE: Sharp point only.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specification
Length mm Assorted
Diameter mm Assorted
Size mm Assorted
Thread Length mm Assorted
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Pack Dimensions L x W x H mm 42 x 298 x 168
Pack Weight kg 1.75
Carton Qty Packs 6
Pallet Qty Packs 108
CE Standard Web BS EN 14592:2008
Product Code STSTTRAY
SKU Barcode 5055331820150
Size imp Assorted
Thread Dia mm Assorted
Product Specifications
Head Type Double Countersunk
Material Austenitic Stainless Steel (A2-304)
Point Type 25° Sharp
Recess Type Pozi
Thread Type Single Coarse 40°
Driver Bit Size PZ2
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)

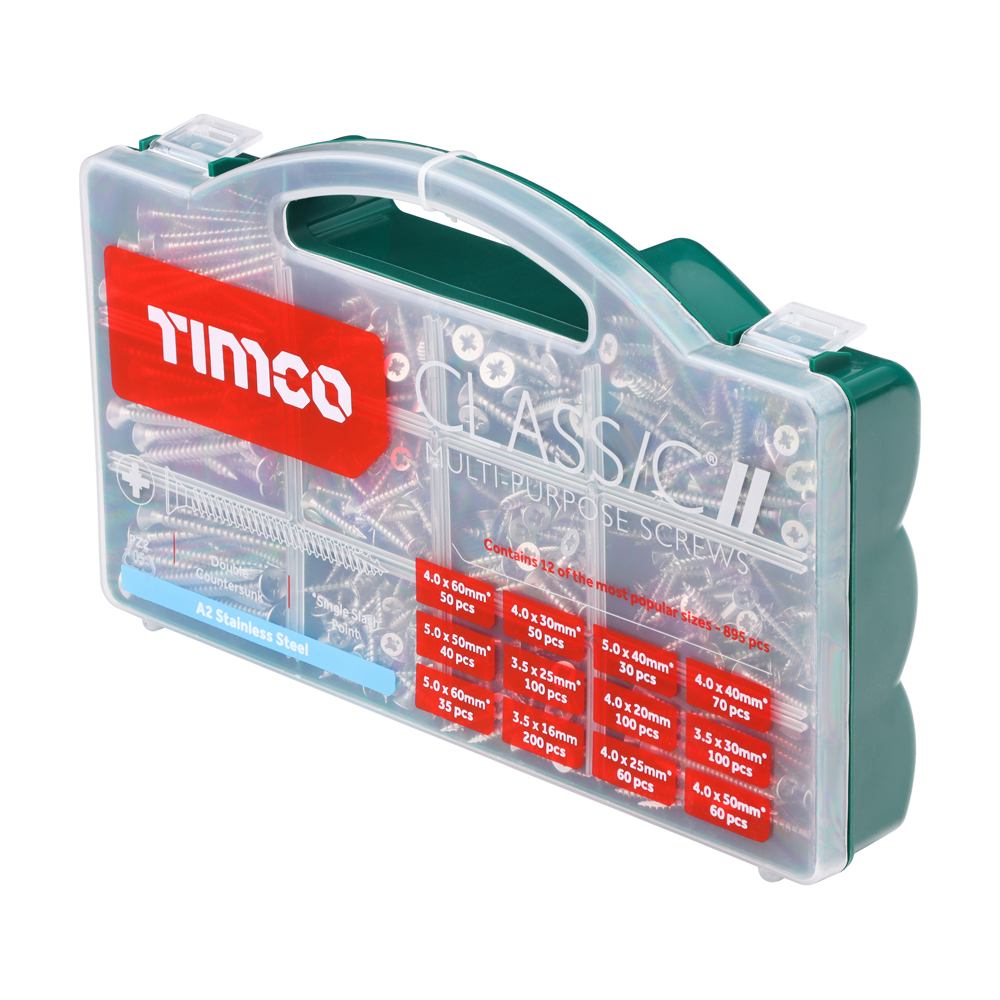

Contents 3.5 x 16mm (Qty 200), 3.5 x 25mm (Qty 100), 3.5 x 30mm (Qty 100), 4.0 x 20mm (Qty 100), 4.0 x 25mm (Qty 60), 4.0 x 30mm (Qty 50), 4.0 x 40mm (Qty 70), 4.0 x 50mm (Qty 60), 4.0 x 60mm (Qty 50), 5.0 x 40mm (Qty 30), 5.0 x 50mm (Qty 40), 5.0 x 60mm (Qty 35)
Attribute Group 1
Brand TIMCO

Classic Multi-Purpose Screws - Mixed Tray - PZ - Double Countersunk - A2 Stainless Steel

895pcs

  • Product Code: STSTTRAY
  • Pack Type: Tray
  • Pack Quantity: 895
  • Barcode: 5055331820150
