Product Information

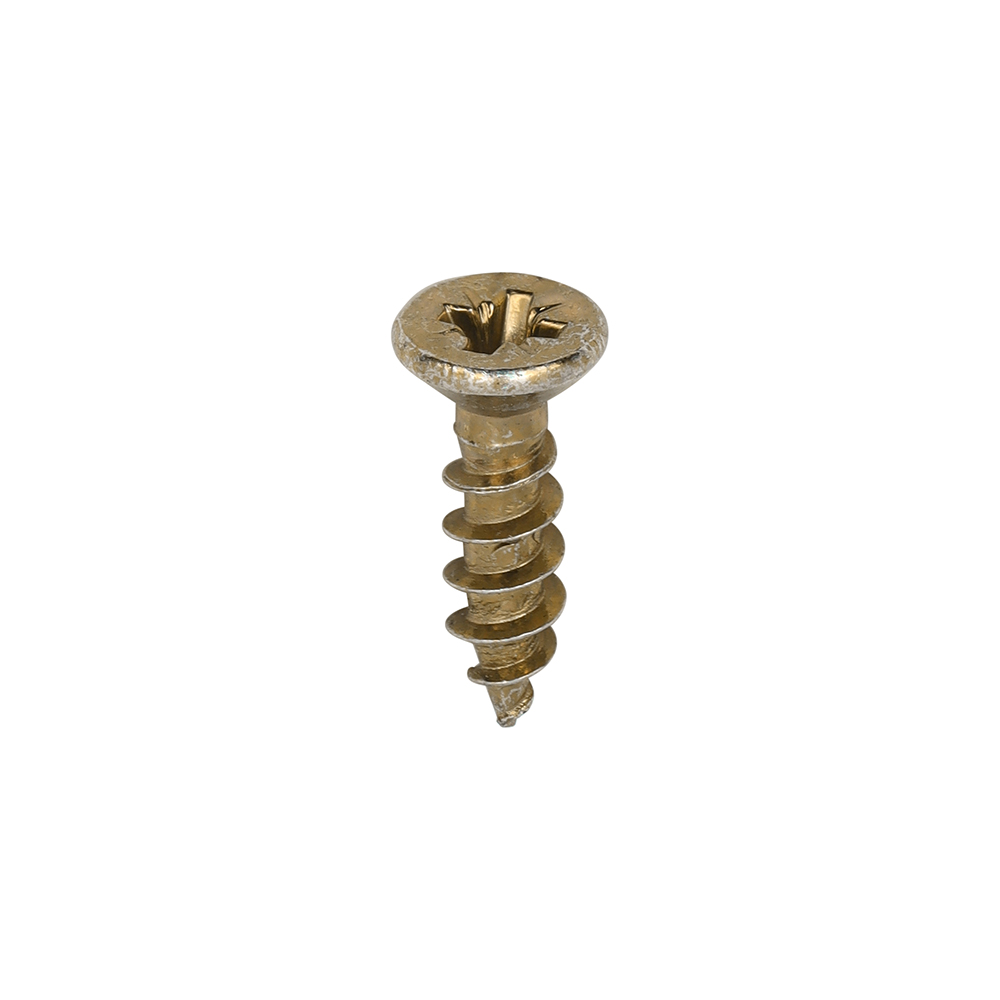

Classic Multi-Purpose Screw featuring a reduced 5mm head for specific use with continuous/piano hinges. NOTE: Sharp point only.
Documents
Technical Specifications
Product Specifications
| Gauge | 4 |
| Finish | Zinc & Yellow |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Single Coarse 40° |
| Driver Bit Size | PZ1 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 1/2 |
| Length mm | 12 |
| Diameter mm | 3.0 |
| Size mm | 3.0 x 12 |
| Thread Length mm | 7 |
| Lubrication | Gleitmo |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Internal |
| Pack Dimensions L x W x H mm | 53 x 40 x 37 |
| Pack Weight kg | 0.076 |
| Carton Qty Packs | 140 |
| Pallet Qty Packs | 5040 |
| CE Standard Web | BS EN 14592:2008 |
| Service Class | 1 |
| Product Code | 30012CLAH |
| SKU Barcode | 5055017508952 |
| Size imp | 4 x 1/2 |
| Thread Dia mm | 3 |
| Inner Thread Dia mm | 2 |
| Head Dia mm | 5.08 |
Attribute Group 1
| Brand | TIMCO |

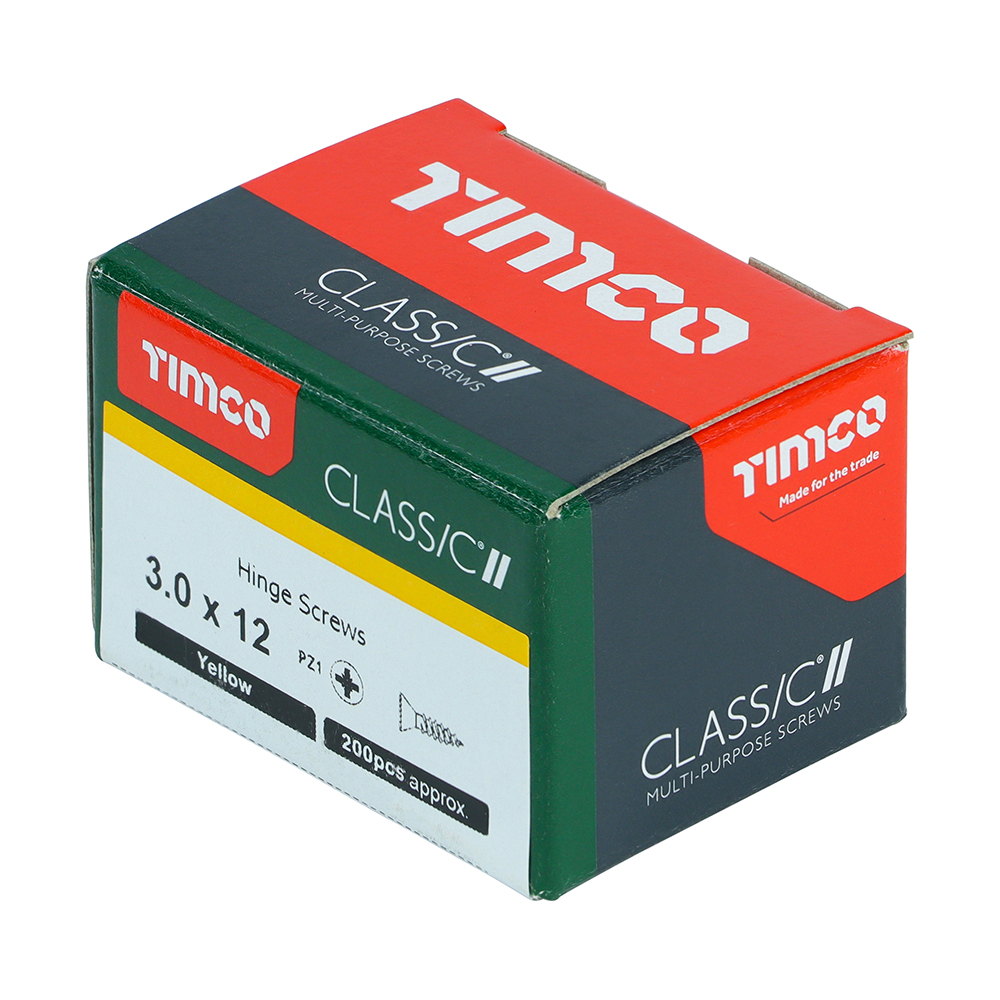

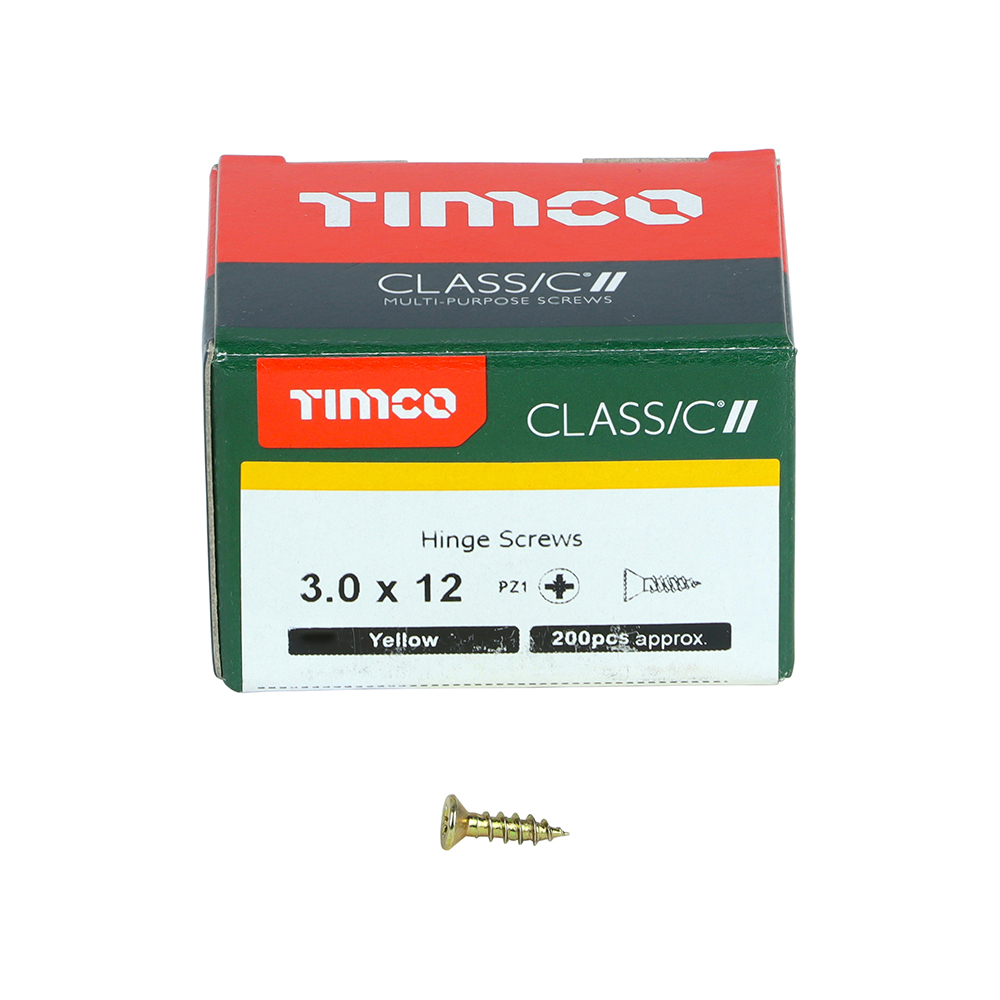

Classic Multi-Purpose Hinge Screws - PZ - Countersunk - Yellow
3.0 x 12
- Product Code: 30012CLAH
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017508952
