Product Information

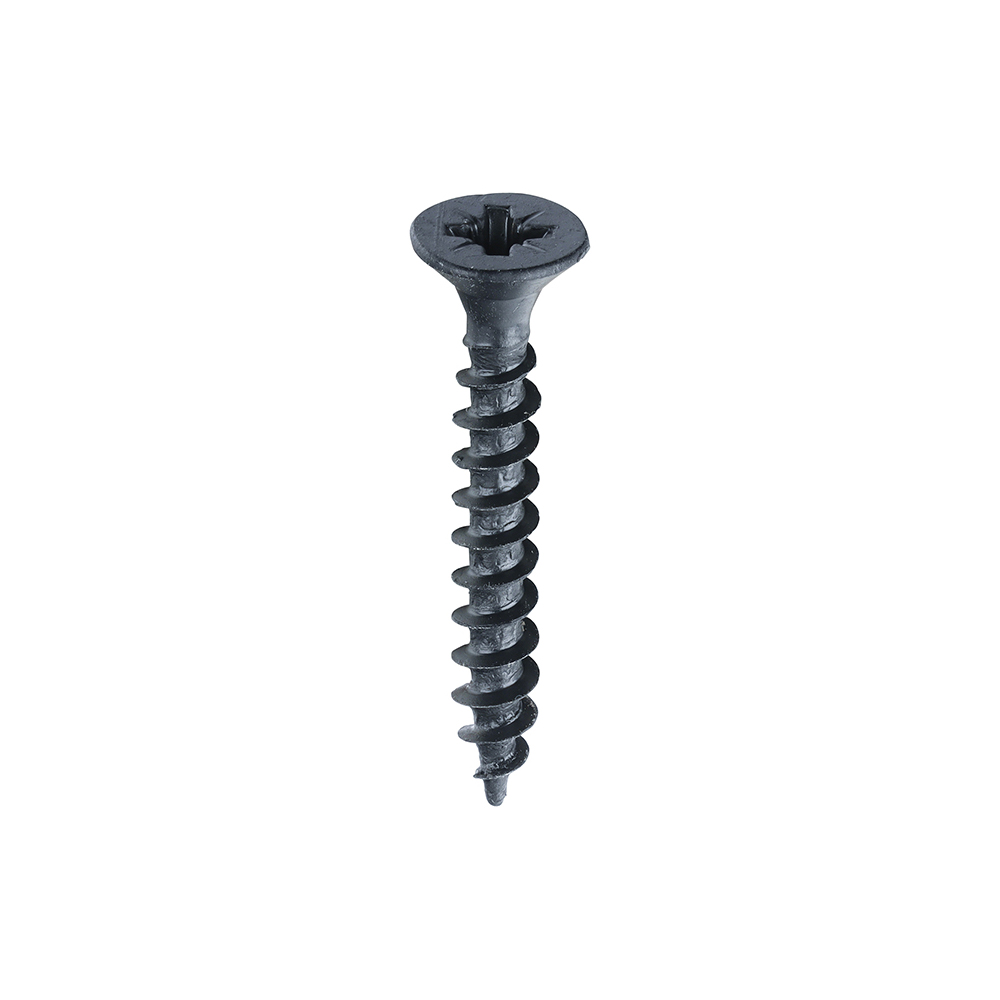

A single thread woodscrew with a black corrosion resistant coating designed to withstand over 500 hours salt spray. Ideal for use with black and black antique ironmongery.
- Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Exterior (Black Organic) |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 40° Single Deep |
| Driver Bit Size | PZ2 |
| Substrates | Timber, Masonry (with plug) |
Product Specification
| Length inch | 11/4 |
| Length mm | 30 |
| Diameter mm | 4.0 |
| Size mm | 4.0 x 30 |
| Thread Length mm | 25 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 110 x 96 x 18 |
| Pack Weight kg | 0.04 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 7200 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 40030CHBP |
| SKU Barcode | 5056110876122 |
| Size imp | 8 x 1 1/4 |
| Thread Dia mm | 4 |
| Inner Thread Dia mm | 2.5 |
| Head Dia mm | 7.62 |
Attribute Group 1
| Brand | TIMCO |

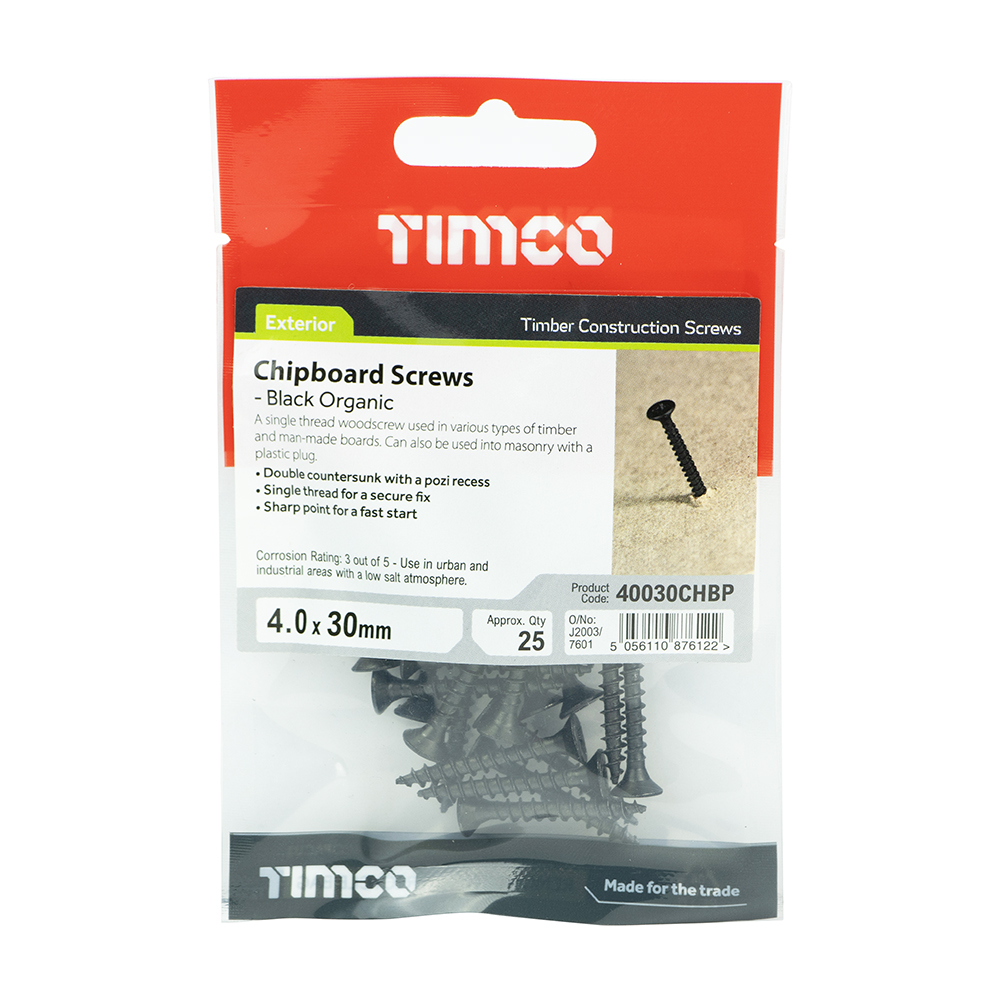

Chipboard Screws - PZ - Double Countersunk - Exterior - Black Organic
4.0 x 30
- Product Code: 40030CHBP
- Pack Type: TIMpac
- Pack Quantity: 25
- Barcode: 5056110876122
