Product Information
Designed for use when fixing with chemical resins. (Nut setter included)
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 130 |
| Nut Size mm | M10 |
| Washer Size mm | M10 |
| Washer Type | Form A |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Hole Depth mm | 90 |
| Max Fixture Thickness mm | 20 |
| Pack Dimensions L x W x H mm | 152 x 36 x 42 |
| Pack Weight kg | 0.78 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | 1040 |
| Product Code | 10130CS |
| SKU Barcode | 5055017564958 |
| Size Thread Dia x L mm | M10 x 130 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 12 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | Chisel |
| Thread Type | Metric |
| Included Items | 7mm Nut Setter (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

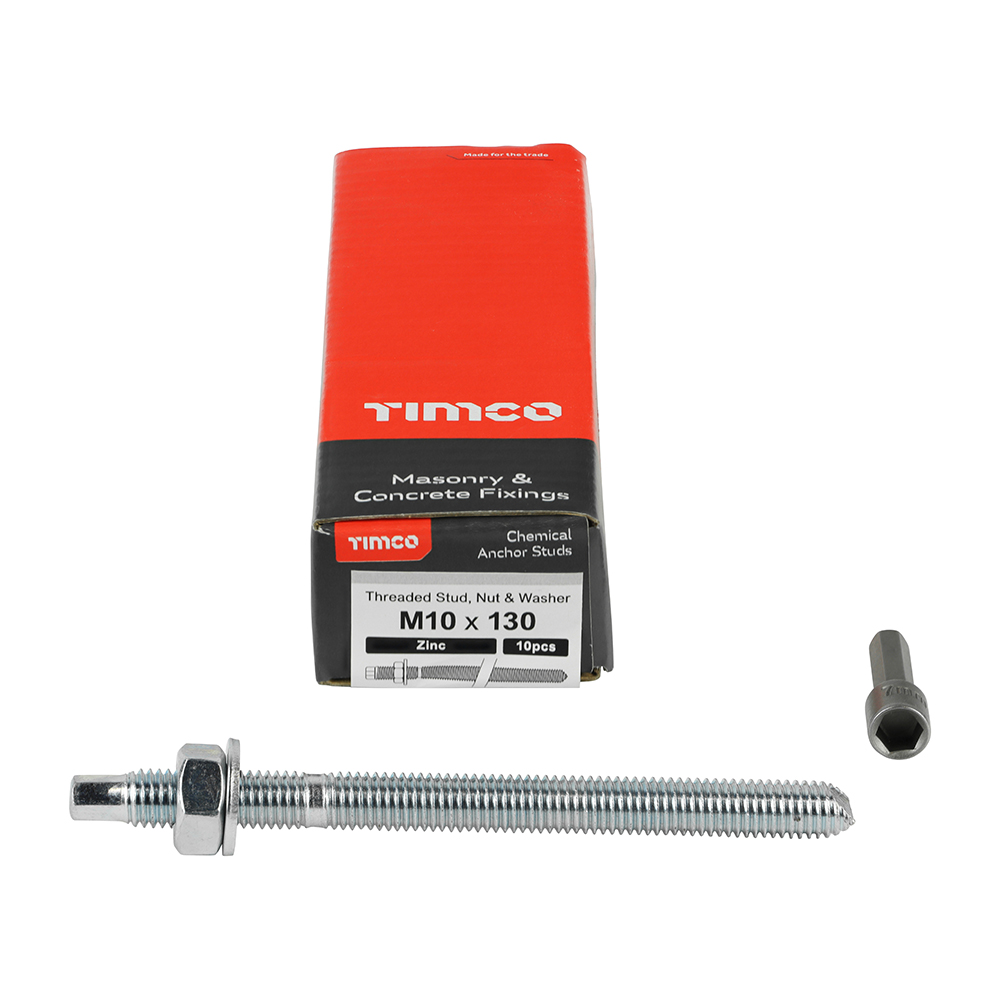

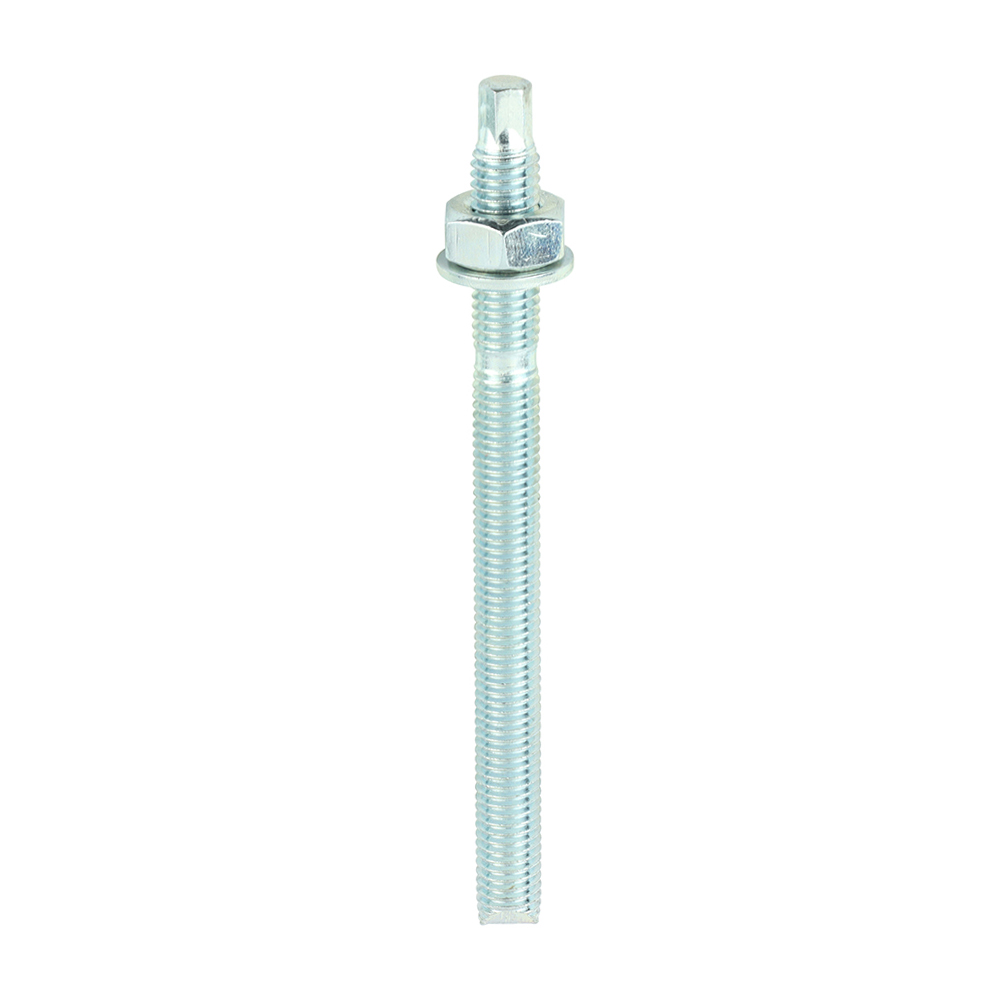

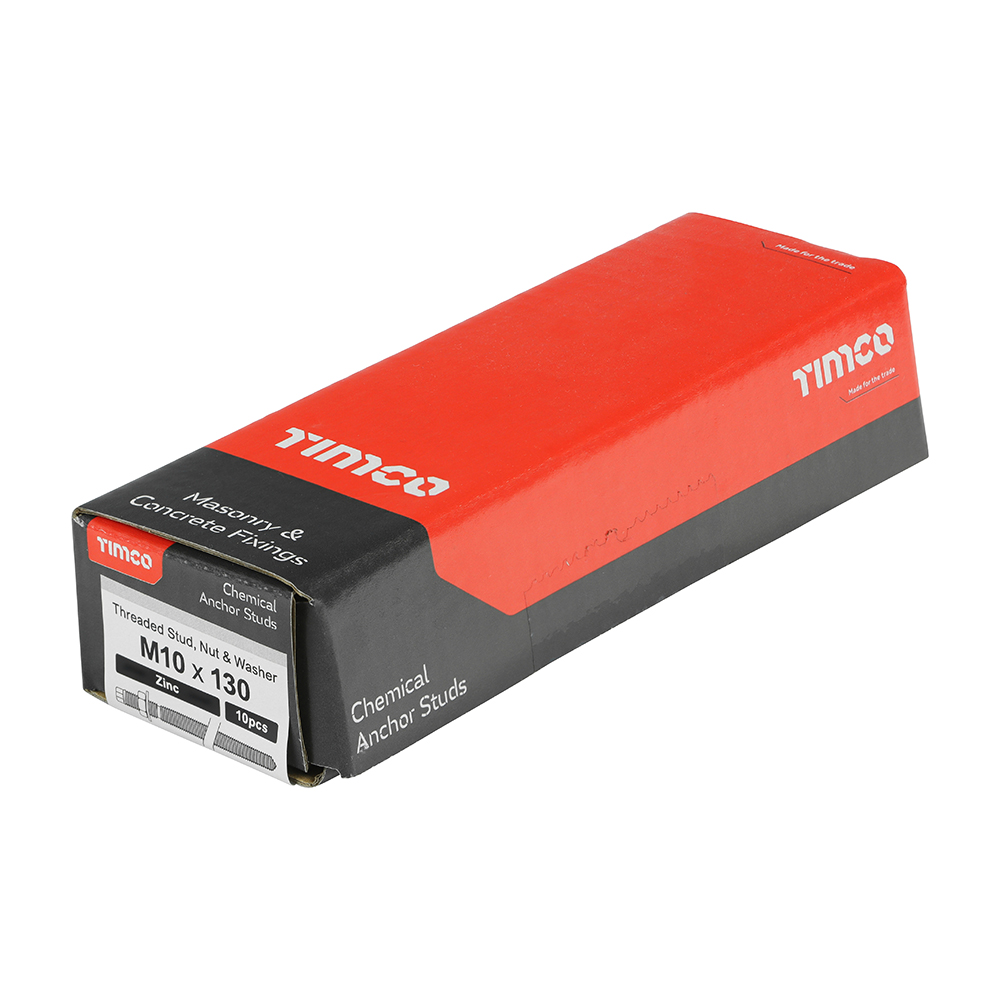

Chemical Anchor Threaded Studs, Nuts & Washers - Zinc
M10 x 130
- Product Code: 10130CS
- Pack Type: Box
- Pack Quantity: 10
- Barcode: 5055017564958
