Product Information
Designed for use when fixing with chemical resins. (Nut setter included)
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 260 |
| Nut Size mm | M20 |
| Washer Size mm | M20 |
| Washer Type | Form A |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 24 |
| Hole Depth mm | 170 |
| Max Fixture Thickness mm | 55 |
| Pack Dimensions L x W x H mm | 278 x 44 x 58 |
| Pack Weight kg | 2.385 |
| Carton Qty Packs | 9 |
| Pallet Qty Packs | 378 |
| Product Code | 20270CS |
| SKU Barcode | 5055331895844 |
| Size Thread Dia x L mm | M20 x 260 |
| Thread Dia mm | M20 |
| Drill Hole Dia mm | 24 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | Chisel |
| Thread Type | Metric |
| Included Items | 12mm Nut Setter (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

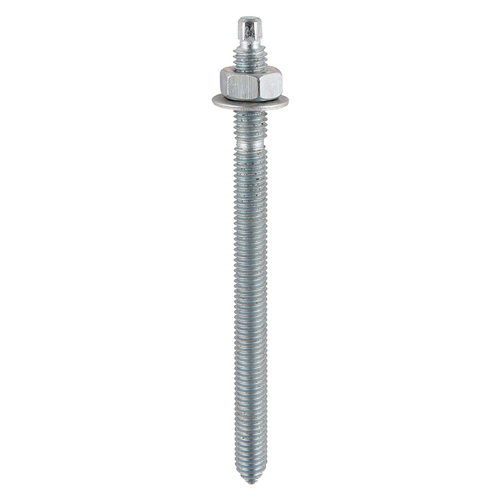

Chemical Anchor Threaded Studs, Nuts & Washers - Zinc
M20 x 260
- Product Code: 20270CS
- Pack Type: Box
- Pack Quantity: 4
- Barcode: 5055331895844
