Product Information
Designed for use when fixing with chemical resins. (Nut setter included)
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 110 |
| Nut Size mm | M8 |
| Washer Size mm | M8 |
| Washer Type | Form A |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Fixture Hole Diameter mm | 10 |
| Hole Depth mm | 80 |
| Max Fixture Thickness mm | 13 |
| Pack Dimensions L x W x H mm | 130 x 42 x 26 |
| Pack Weight kg | 0.41 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | 2400 |
| Product Code | 08110CSG |
| SKU Barcode | 5055017586080 |
| Size Thread Dia x L mm | M8 x 110 |
| Thread Dia mm | M8 |
| Drill Hole Dia mm | 10 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | Chisel |
| Thread Type | Metric |
| Included Items | 5mm Nut Setter (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

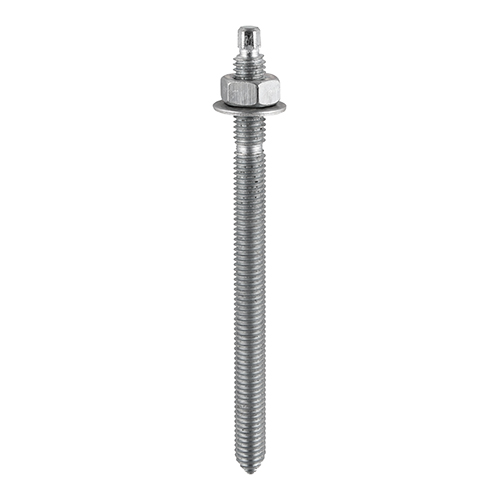

Chemical Anchor Threaded Studs, Nuts & Washers - Hot Dipped Galvanised
M8 x 110
- Product Code: 08110CSG
- Pack Type: Box
- Pack Quantity: 10
- Barcode: 5055017586080
