Product Information
Designed for use when fixing with chemical resins. (Nut setter included)
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 160 |
| Nut Size mm | M12 |
| Washer Size mm | M12 |
| Washer Type | Form A |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Fixture Hole Diameter mm | 14 |
| Hole Depth mm | 110 |
| Max Fixture Thickness mm | 25 |
| Pack Dimensions L x W x H mm | 64 x 42 x 170 |
| Pack Weight kg | 1.405 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 600 |
| Product Code | 12160CSG |
| SKU Barcode | 5055017586103 |
| Size Thread Dia x L mm | M12 x 160 |
| Thread Dia mm | M12 |
| Drill Hole Dia mm | 14 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | Chisel |
| Thread Type | Metric |
| Included Items | 8mm Nut Setter (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

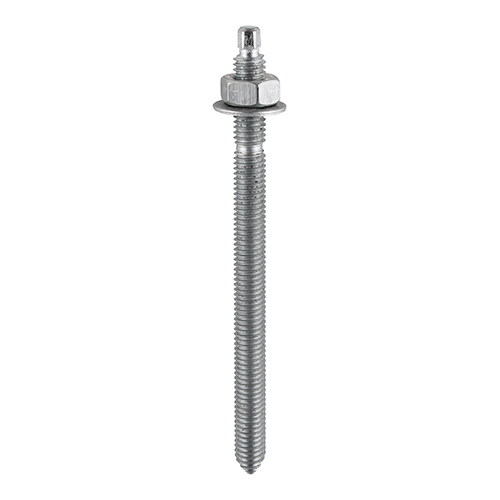

Chemical Anchor Threaded Studs, Nuts & Washers - Hot Dipped Galvanised
M12 x 160
- Product Code: 12160CSG
- Pack Type: Box
- Pack Quantity: 10
- Barcode: 5055017586103
