Product Information
Designed for use when fixing with chemical resins. (Nut setter included)
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 190 |
| Nut Size mm | M16 |
| Washer Size mm | M16 |
| Washer Type | Form A |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Fixture Hole Diameter mm | 18 |
| Hole Depth mm | 125 |
| Max Fixture Thickness mm | 35 |
| Pack Dimensions L x W x H mm | 206 x 80 x 49 |
| Pack Weight kg | 2.853 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 304 |
| Product Code | 16190CSG |
| SKU Barcode | 5055017586110 |
| Size Thread Dia x L mm | M16 x 190 |
| Thread Dia mm | M16 |
| Drill Hole Dia mm | 18 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | Chisel |
| Thread Type | Metric |
| Included Items | 12mm Nut Setter (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

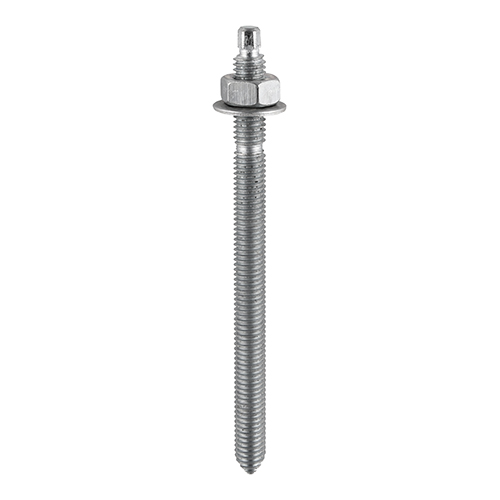

Chemical Anchor Threaded Studs, Nuts & Washers - Hot Dipped Galvanised
M16 x 190
- Product Code: 16190CSG
- Pack Type: Box
- Pack Quantity: 10
- Barcode: 5055017586110
