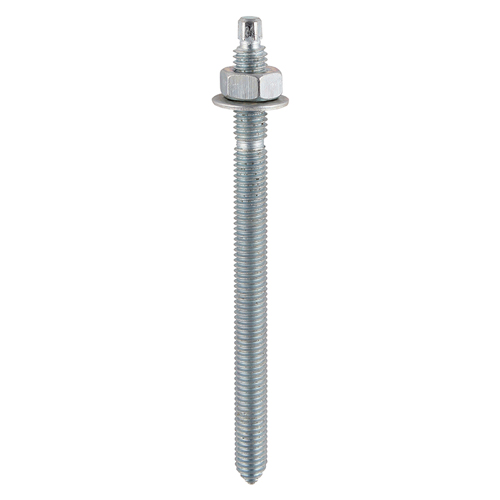

Product Information
Designed for use when fixing with chemical resins.
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 110 |
| Nut Size mm | M8 |
| Washer Size mm | M8 |
| Finish | Zinc |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | Chisel |
| Thread Type | Metric |
| Washer Type | Form A |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 10 |
| Hole Depth mm | 80 |
| Max Fixture Thickness mm | 13 |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.084 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| Product Code | 08110CSP |
| SKU Barcode | 5056110817330 |
| Size Thread Dia x L mm | M8 x 110 |
| Thread Dia mm | M8 |
| Drill Hole Dia mm | 10 |
Attribute Group 1
| Brand | TIMCO |
Chemical Anchor Studs - Zinc
M8 x 110
- Product Code: 08110CSP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5056110817330
