Product Information
Channel nuts are used to secure standard metric threaded fasteners, such as threaded bar into framing channel or strut. A system that is frequently used for hanging cable management trays, ducting systems, electrical panels, air conditioning units, junction boxes or piping clamps.
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Length mm | 35 |
| Size mm | M12 |
| Spring Type | No Spring |
| Thickness mm | 8 |
| Thread Pitch mm | 1.75 |
| Width mm | 19 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| To Suit Channel Size mm | 41 |
| Pack Dimensions L x W x H mm | 100 x 64 x 162 |
| Pack Weight kg | 3.14 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | N/A |
| Product Code | CN12Z |
| SKU Barcode | 5056110842851 |
| Thread Dia mm | M12 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Nut Type | Channel |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |

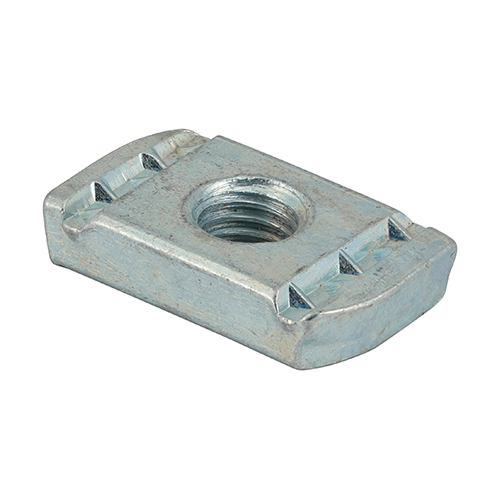

Channel Nuts Without Spring - Zinc
M12
- Product Code: CN12Z
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5056110842851
