Product Information
Commonly used for specialised applications.
- Manufactured from cast iron to match period door ironmongery
- Fixed pin for use with inward and outward opening doors
- Available in self colour and black finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 75 |
| Open Width mm | 50 |
| Size L x W mm | 75 x 50 |
| Thickness mm | 3.5 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.28 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | 2,250 Pairs |
| Pattern | 200 |
| Product Code | 434905 |
| SKU Barcode | 5056110809304 |
| Size imp | 3 |
| Knuckle Dia mm | 12 |
| Hole Dia mm | 4.8 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Iron |
Attribute Group 1
| Brand | TIMCO |

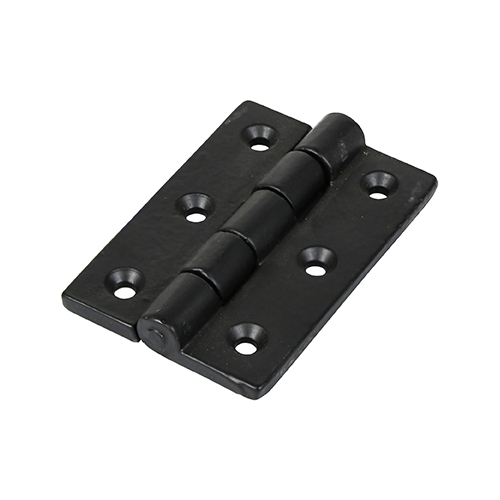

Cast Iron Butt Hinge (200) - Black
75 x 50
- Product Code: 434905
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110809304
