Product Information

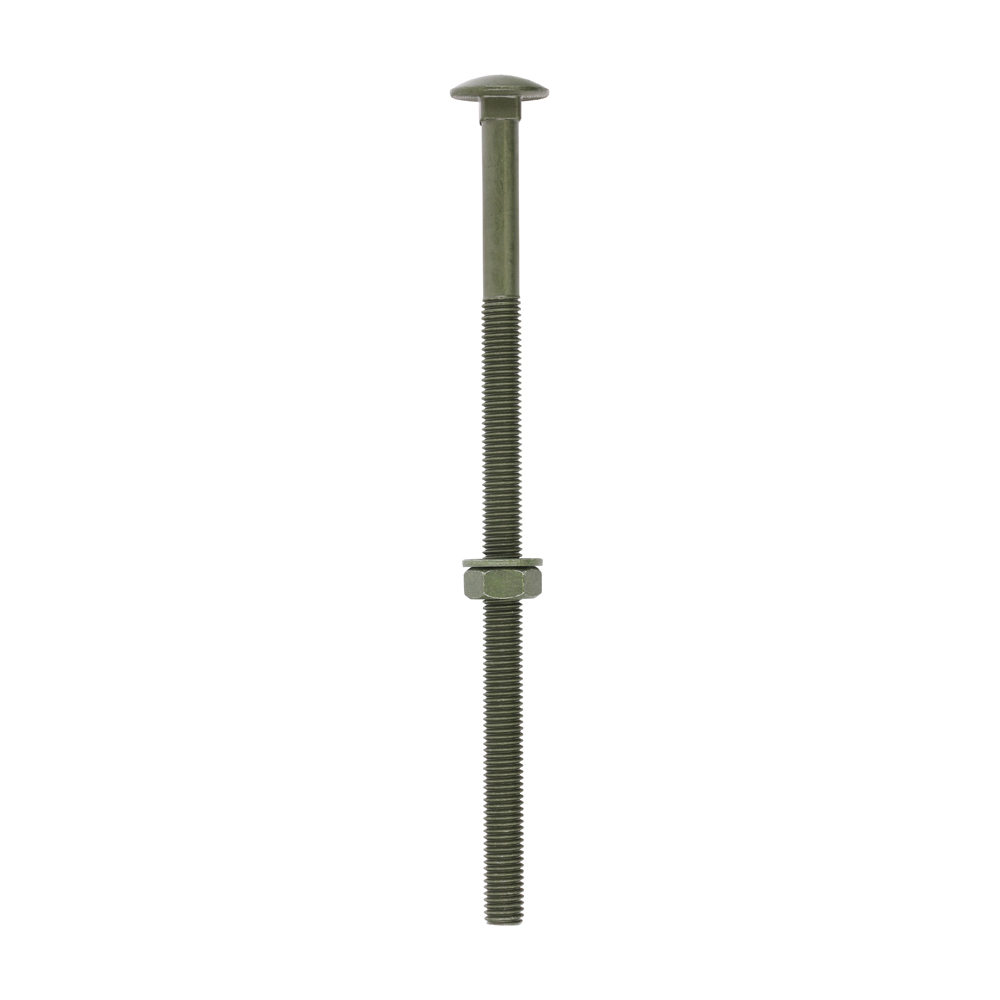

A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber.
Coated with a patented multi-layer corrosion resistant plating to withstand 500 hours salt spray making it ideal for external applications. NOTE: Fully threaded up to and including 150mm, partially threaded thereafter.
- Manufactured to DIN 603, DIN 934 and DIN 125-A
Documents
Technical Specifications
Product Specification
| Length mm | 200 |
| Nut Size mm | M10 |
| Nut Socket Size mm | 17 |
| Size mm | M10 x 200 |
| Thread Pitch mm | 1.5 |
| Washer Size mm | M10 x 21 |
| Washer Type | Form A |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 290 x 133 x 31 |
| Pack Weight kg | 1.254 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 600 |
| CE Standard Web | BS EN 14592:2008 |
| DIN Standard | DIN 125-A, DIN 603, DIN 934 |
| Product Code | 10200INCB |
| SKU Barcode | 5055331892256 |
| Thread Dia mm | M10 |
| Inner Thread Dia mm | 9.8 |
| Head Dia mm | 24 |
Product Specifications
| Colour | Green |
| Finish | Exterior (Green Organic) |
| Head Type | Dome |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | B Point |
| Thread Coverage | Partially Threaded |
| Thread Type | Metric |
| Included Items | M10 Hex Full Nuts & Form A Washers |
| Substrates | Hardwood, Softwood |
Attribute Group 1
| Brand | TIMCO |

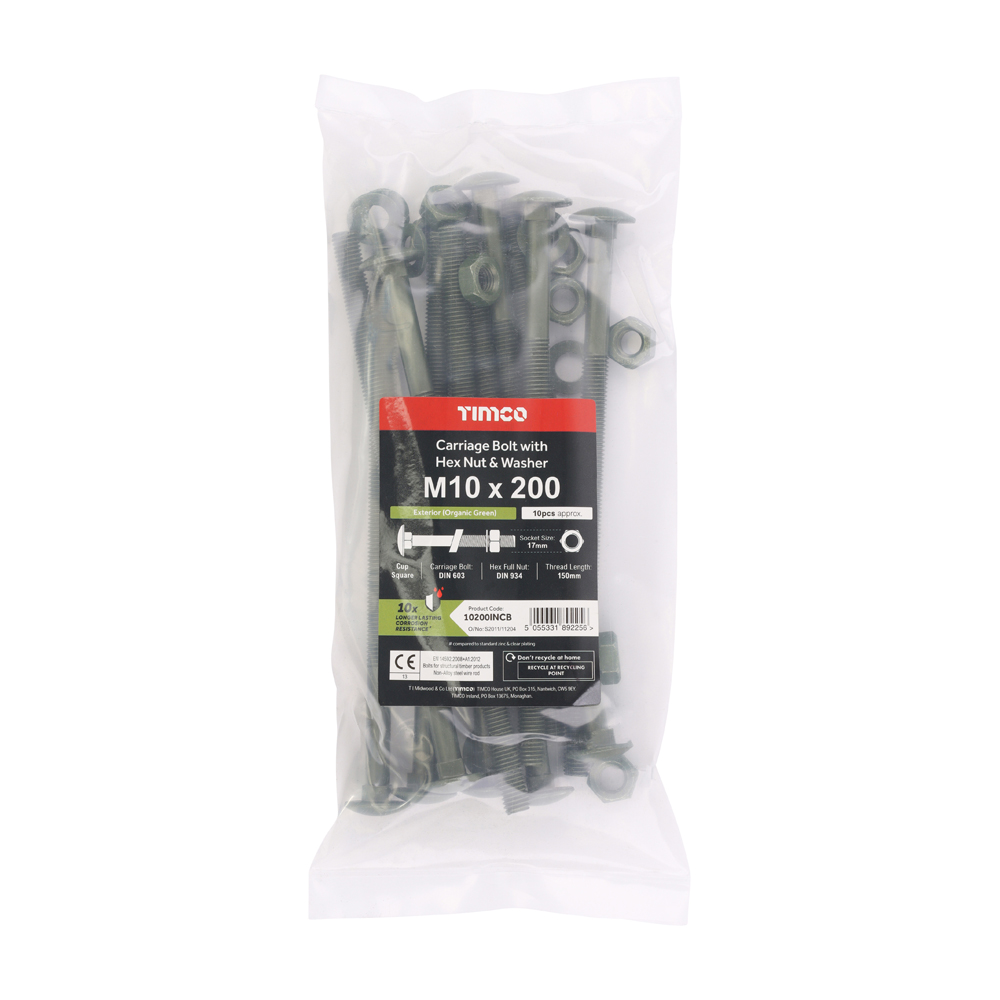

Carriage Bolts Hex Nuts & Form A Washers - Dome - Exterior - Green
M10 x 200
- Product Code: 10200INCB
- Pack Type: Bag
- Pack Quantity: 10
- Barcode: 5055331892256
