Product Information

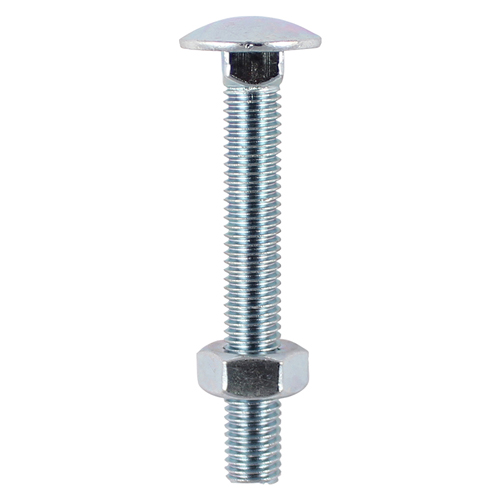

A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber. NOTE: Nuts included and markings visible on the domed head. Fully threaded up to and including 150mm, partially threaded thereafter.
Documents
Technical Specifications
Product Specification
| Length mm | 75 |
| Nut Size mm | M6 |
| Nut Socket Size mm | 10 |
| Size mm | M6 x 75 |
| Thread Pitch mm | 1 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.46 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| CE Standard Web | BS EN 14592:2008 |
| DIN Standard | DIN 603, DIN 934 |
| Product Code | 0675CBB |
| SKU Barcode | 5055893374443 |
| Thread Dia mm | M6 |
| Inner Thread Dia mm | 5.25 |
| Head Dia mm | 16 |
Product Specifications
| Finish | Zinc |
| Head Type | Dome |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M6 Hex Full Nuts |
| Substrates | Hardwood, Softwood |
Attribute Group 1
| Brand | TIMCO |

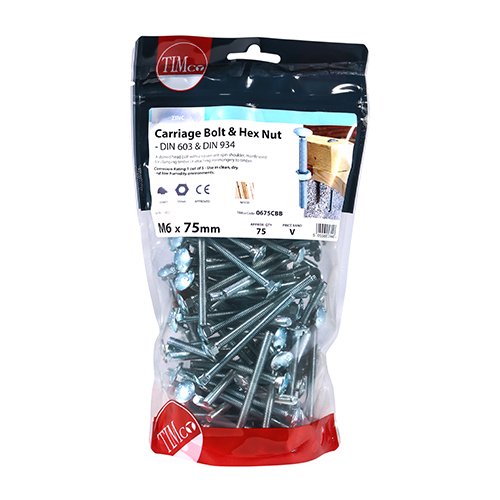

Carriage Bolts & Hex Nuts - Zinc
M6 x 75
- Product Code: 0675CBB
- Pack Type: TIMbag
- Pack Quantity: 75
- Barcode: 5055893374443
