Product Information

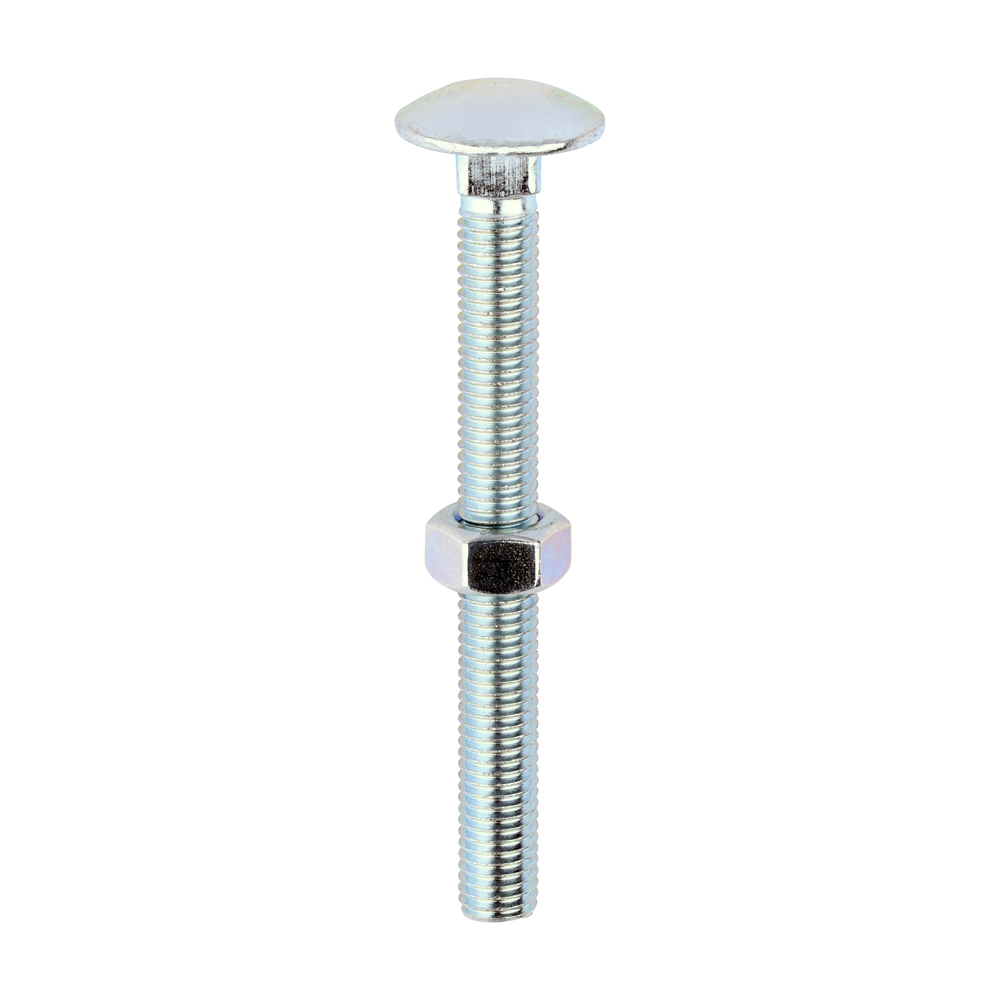

A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber. NOTE: Nuts included and markings visible on the domed head. All sizes up to and including 150mm are fully threaded and lengths 160mm and above all have 150mm thread length.
- Manufactured from grade 4.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 120 |
| Nut Size mm | M12 |
| Nut Socket Size mm | 19 |
| Size mm | M12 x 120 |
| Thread Pitch mm | 1.75 |
| Finish | Zinc |
| Head Type | Dome |
| Material | Carbon Steel |
| Material Grade | 4.8 |
| Nut Type | Hex Full |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Included Items | M12 Hex Full Nuts |
| Substrates | Hardwood, Softwood |
| Pack Dimensions L x W x H mm | 262 x 74 x 60 |
| Pack Weight kg | 1.32 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 320 |
| CE Standard Web | BS EN 14592:2008 |
| DIN Standard | DIN 603, DIN 934 |
| Product Code | 12120CB |
| SKU Barcode | 5055331819222 |
| Thread Dia mm | M12 |
| Inner Thread Dia mm | 11.9 |
| Head Dia mm | 30 |
Attribute Group 1
| Brand | TIMCO |
Carriage Bolts & Hex Nuts - Zinc
M12 x 120
- Product Code: 12120CB
- Pack Type: Box
- Pack Quantity: 10
- Barcode: 5055331819222
