Product Information

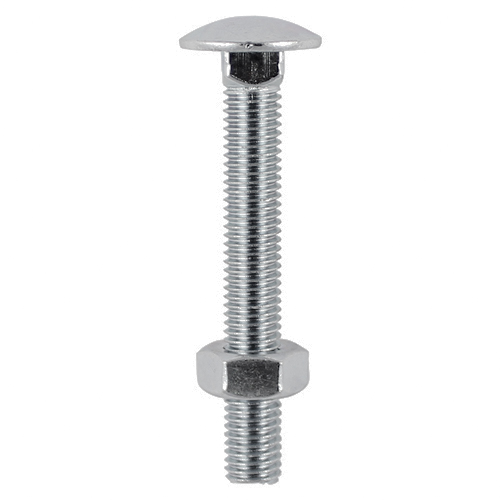

A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. NOTE: Nuts included. Fully threaded up to and including 150mm, partially threaded thereafter.
Documents
Technical Specifications
Product Specification
| Length mm | 150 |
| Nut Size mm | M10 |
| Nut Socket Size mm | 17 |
| Size mm | M10 x 150 |
| Thread Pitch mm | 1.5 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 15 x 90 x 240 |
| Pack Weight kg | 0.2 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 603, DIN 934 |
| Product Code | 10150CBSSP |
| SKU Barcode | 5055893368992 |
| Thread Dia mm | M10 |
Product Specifications
| Head Type | Dome |
| Material | Austenitic Stainless Steel (A2-304) |
| Nut Type | Hex Full |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M10 Hex Full Nuts |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
Attribute Group 1
| Brand | TIMCO |

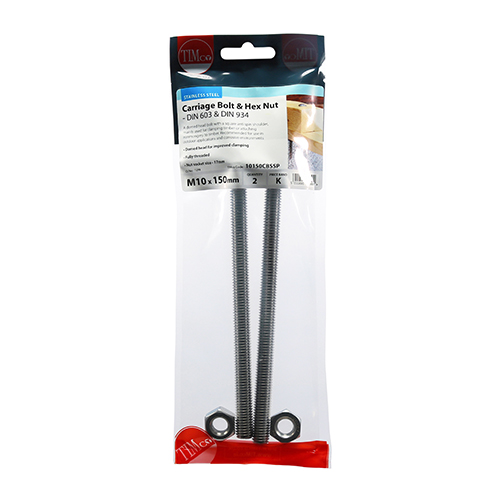

Carriage Bolts & Hex Nuts - Stainless Steel
M10 x 150
- Product Code: 10150CBSSP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5055893368992
