Product Information

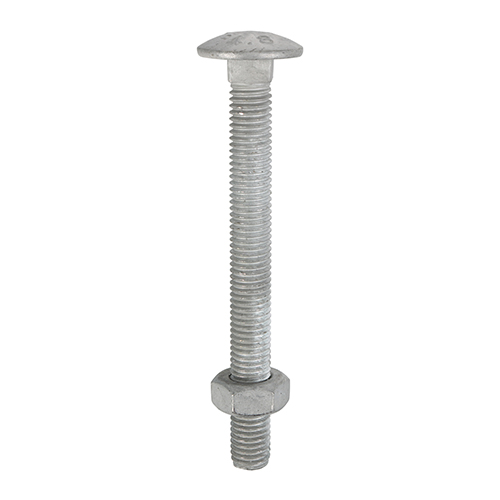

A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber. NOTE: Nuts included. Fully threaded up to and including 150mm, partially threaded thereafter.
- Manufactured from grade 4.8 carbon steel
- Hot dipped galvanised finish to withstand up to 500 hours salt spray
Documents
Technical Specifications
Product Specification
| Length mm | 100 |
| Nut Size mm | M12 |
| Nut Socket Size mm | 19 |
| Size mm | M12 x 100 |
| Thread Pitch mm | 1.75 |
| Material Grade | 4.8 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 184 x 92 x 128 |
| Pack Weight kg | 2.98 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 192 |
| CE Standard Web | BS EN 14592:2008 |
| DIN Standard | DIN 603, DIN 934 |
| Product Code | 12100CBG |
| SKU Barcode | 5056110833231 |
| Thread Dia mm | M12 |
| Inner Thread Dia mm | 11.9 |
| Head Dia mm | 30 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Head Type | Dome |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M12 Hex Full Nuts |
| Substrates | Hardwood, Softwood |
Attribute Group 1
| Brand | TIMCO |
Carriage Bolts & Hex Nuts - Hot Dipped Galvanised
M12 x 100
- Product Code: 12100CBG
- Pack Type: Box
- Pack Quantity: 25
- Barcode: 5056110833231
