Product Information
A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. NOTE: Nuts not included. Fully threaded up to and including 150mm, partially threaded thereafter.
Documents
Technical Specifications
Product Specification
| Length mm | 75 |
| Size mm | M8 x 75 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 170 x 100 x 10 |
| Pack Weight kg | 0.15 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | 3600 |
| DIN Standard | DIN 603 |
| Product Code | 0875CBSSX |
| SKU Barcode | 5055893345252 |
| Thread Dia mm | M8 |
Product Specifications
| Head Type | Dome |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
Attribute Group 1
| Brand | TIMCO |

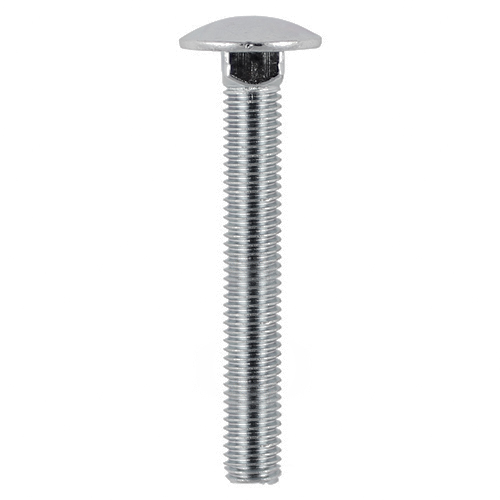

Carriage Bolts - A2 Stainless Steel
M8 x 75
- Product Code: 0875CBSSX
- Pack Type: Bag
- Pack Quantity: 5
- Barcode: 5055893345252
