Product Information
Specifically designed to provide a rapid and secure fixing when erecting cable trays. The fixed washer to flange nut prevents it from falling into the socket driver.
- Flange nut is DIN 6923
Documents
Technical Specifications
Product Specification
| Length mm | 20 |
| Nut Size mm | M6 |
| Nut Socket Size mm | 10 |
| Size mm | M6 x 20 |
| Thread Pitch mm | 1 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.96 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 384 |
| DIN Standard | DIN 6923 |
| Product Code | CTB620 |
| SKU Barcode | 5055331893925 |
| Thread Dia mm | M6 |
Product Specifications
| Finish | Zinc |
| Head Type | Dome |
| Material | Carbon Steel |
| Nut Type | Hex Serrated Flange |
| Point Type | B Point |
| Recess Type | Combi |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Driver Bit Size | PZ3 |
| Included Items | M6 Hex Serrated Flange Nuts, 25mm PZ3 Driver Bit |
| Substrates | Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |

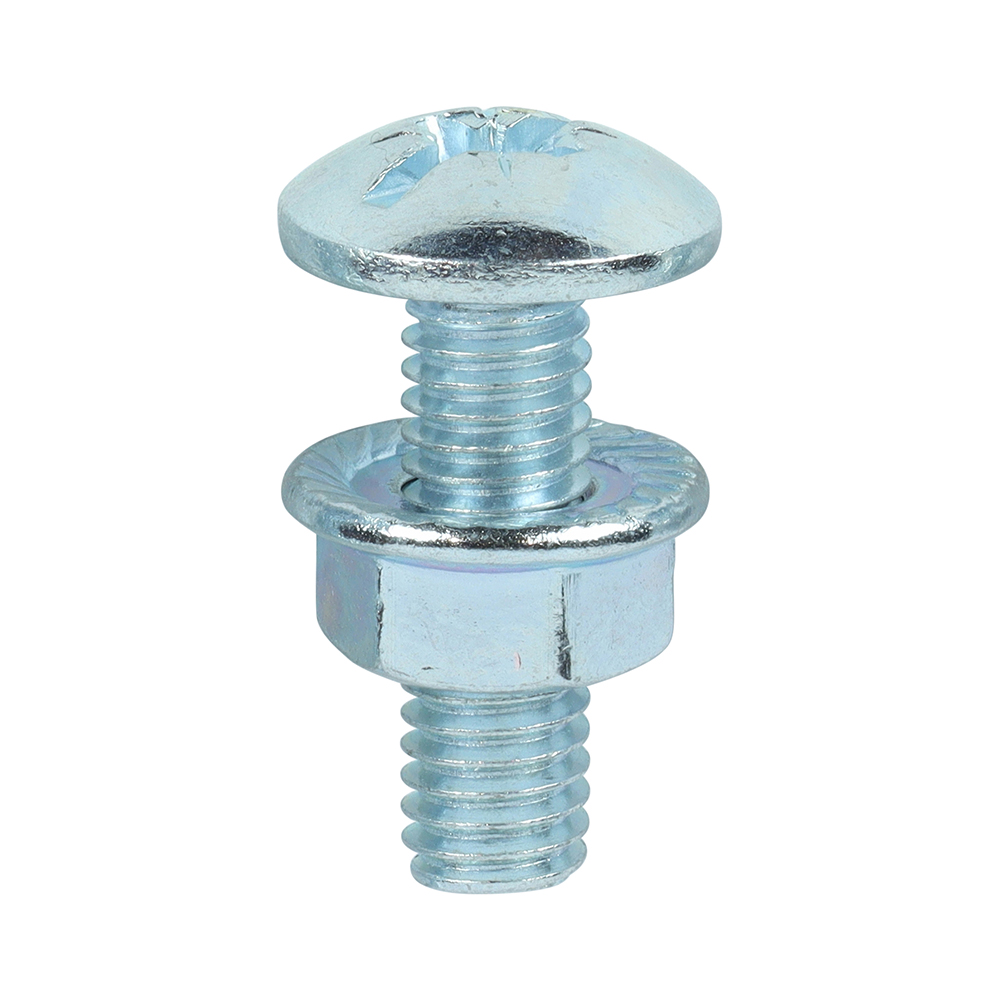

Cable Tray Bolts with Flange Nuts - Zinc
M6 x 20
- Product Code: CTB620

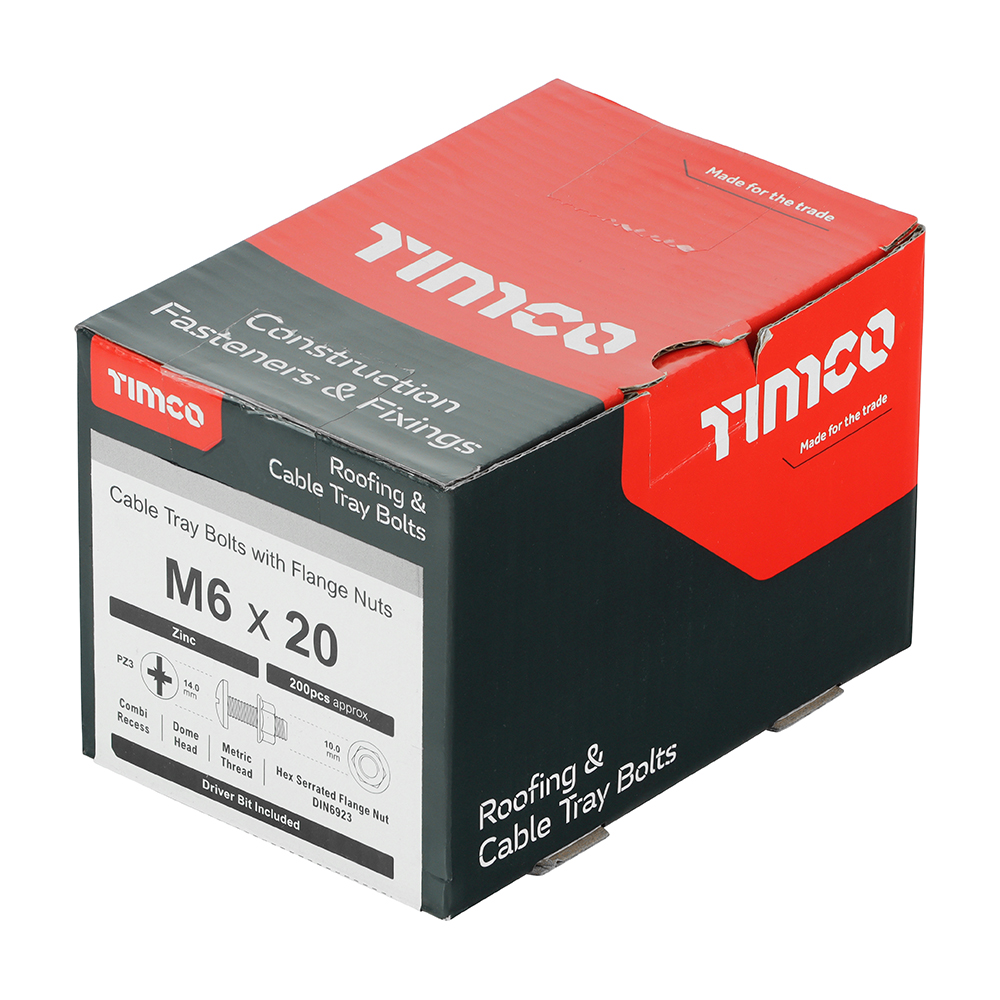

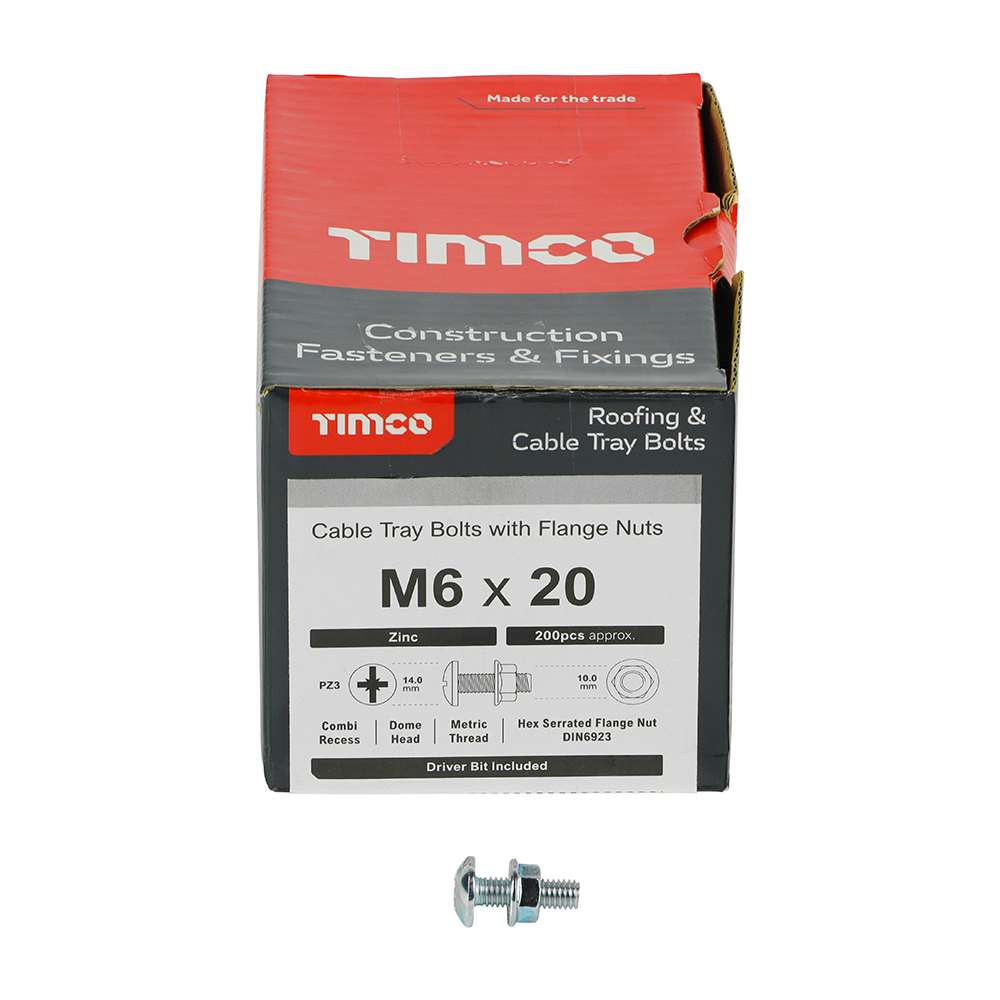

- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055331893925
