Product Information

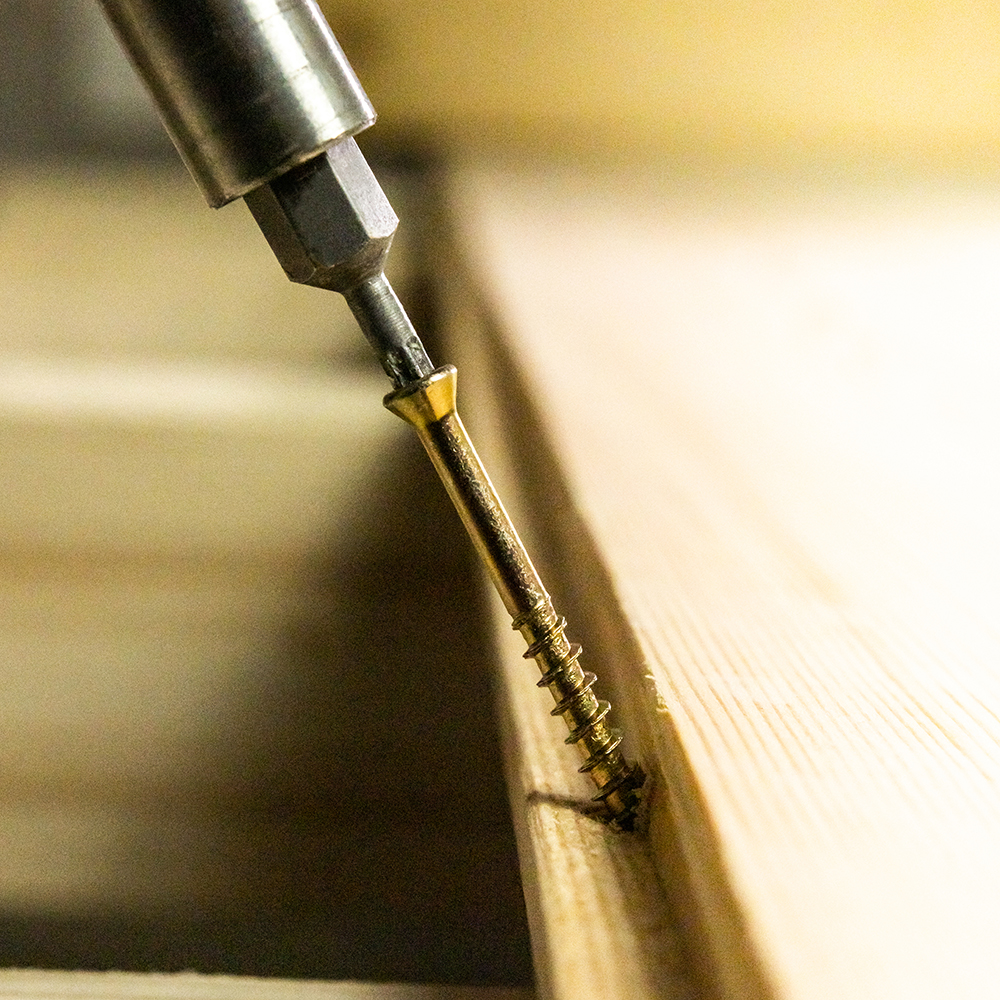

A specialised fastener for fixing tongue and groove floorboards and panelling. It creates a secure and hidden fixture, allowing for a flush fit with the next board.C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting.
  • Reduced head for concealed countersinking
  • Plain shank for pulling the two substrates together without manual clamping
  • Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
  • Dual angle thread for ultimate performance and exceptionally high pull-out resistance
  • Patented twin cut technology for rapid "pick-up" and reduces timber splitting
Documents
Technical Specifications
Product Specifications
Gauge 6
Colour Yellow
Finish Zinc & Yellow
Head Type Reduced Countersunk
Material Hardened Steel
Point Type Twin-Cut
Recess Type TX Drive
Thread Coverage Partially Threaded
Thread Type 40° Single
Application Tongue and Groove Boards and Panelling
Driver Bit Size TX10
Included Items TX10 25mm Bit (Qty 1)
Resistant Type Corrosion-Resistant
Substrates Hardwood, Softwood, Chipboard
Product Specification
Length inch 1 3/4
Length mm 45
Diameter mm 3.5
Size mm 3.5 x 45
Thread Length mm 30
Lubrication Gleitmo
Shank Type Plain
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Indoor Outdoor Usage Indoor, Covered Outdoor
Pack Dimensions L x W x H mm 144 x 112 x 111
Pack Weight kg 0.636
Carton Qty Packs 20
Pallet Qty Packs 600
CE Standard Web BS EN 14592:2008
Offers Clearance
Product Code 35045C2TG
SKU Barcode 5055893315132
Size imp 6 x 1 3/4
Thread Dia mm 3.5
Inner Thread Dia mm 2.22
Head Dia mm 4.66
Attribute Group 1
Brand TIMCO

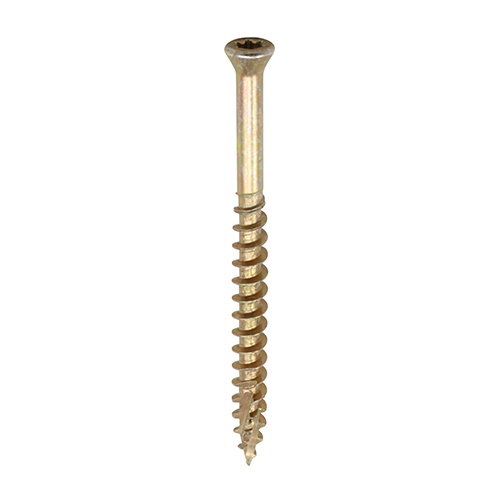

C2 Tongue-Fix - TX - Reduced Countersunk - Twin-Cut - Yellow

3.5 x 45

  • Product Code: 35045C2TG

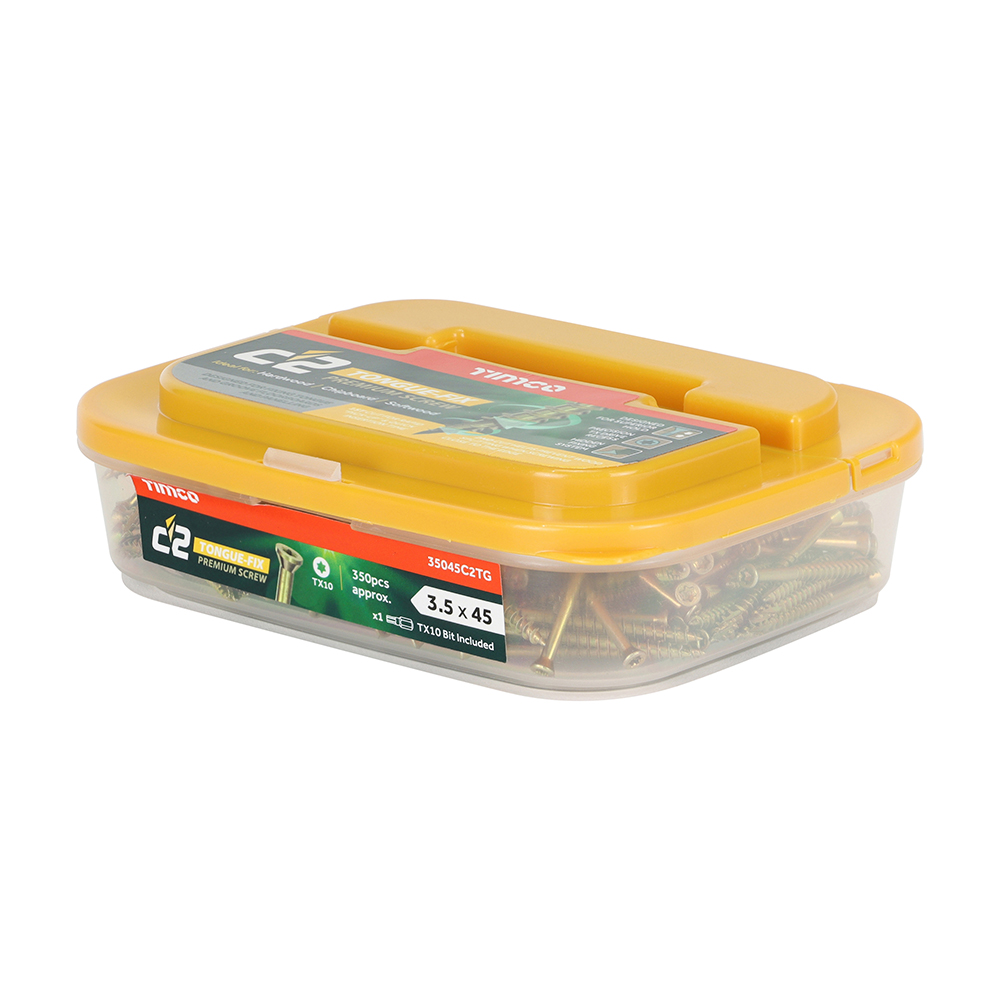

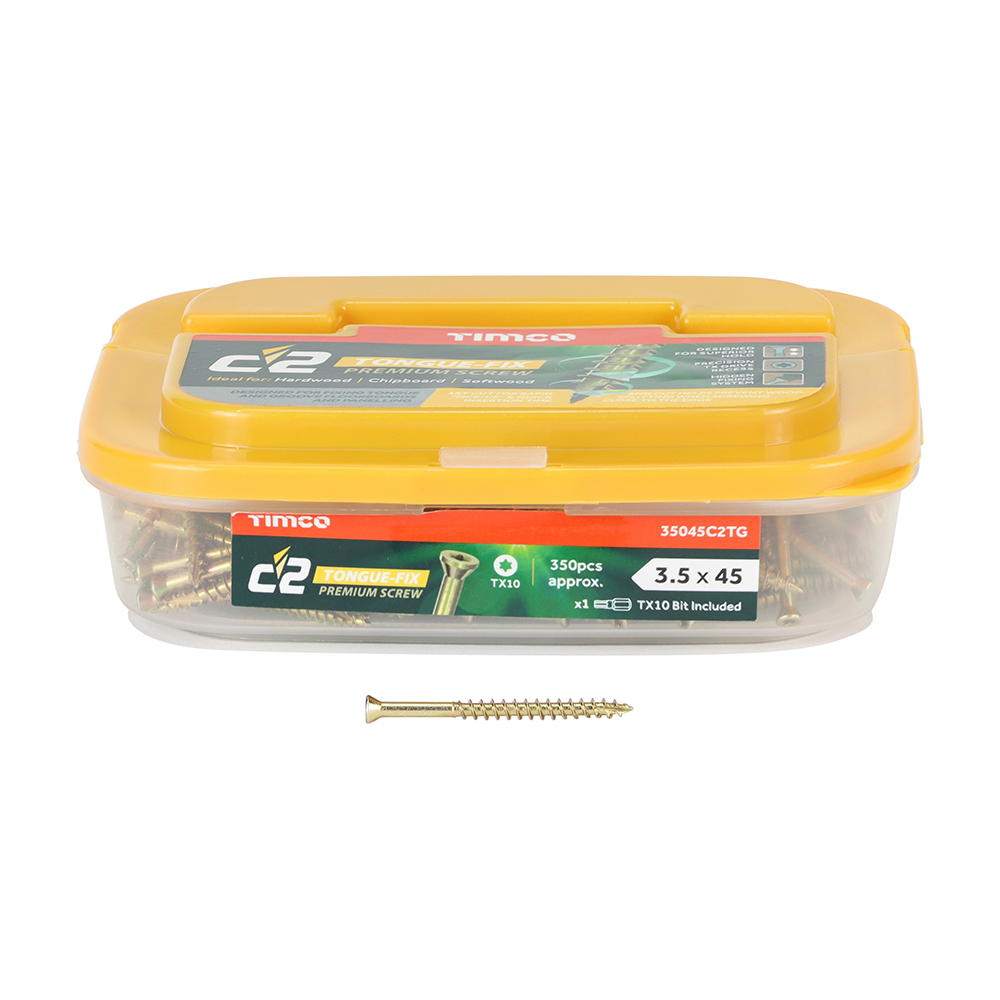

  • Pack Type: Tub
  • Pack Quantity: 350
  • Barcode: 5055893315132
