Product Information
C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.

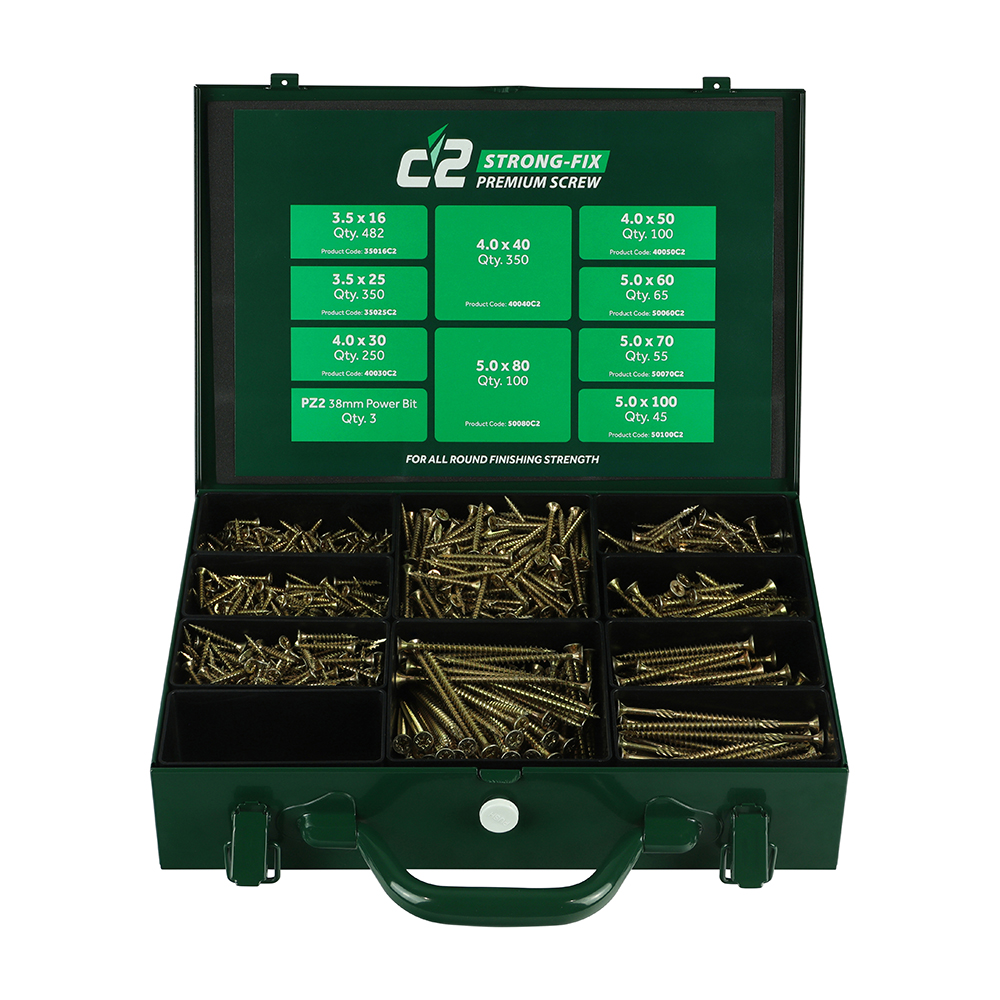

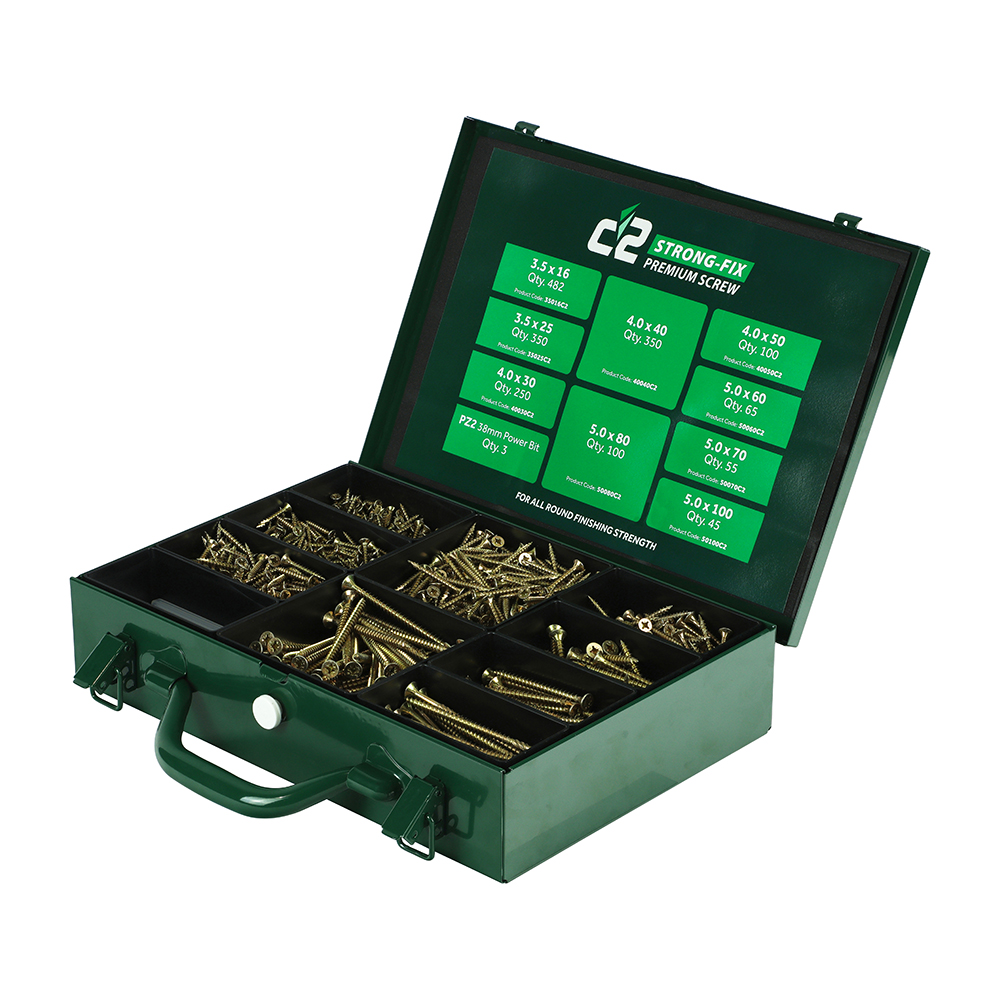

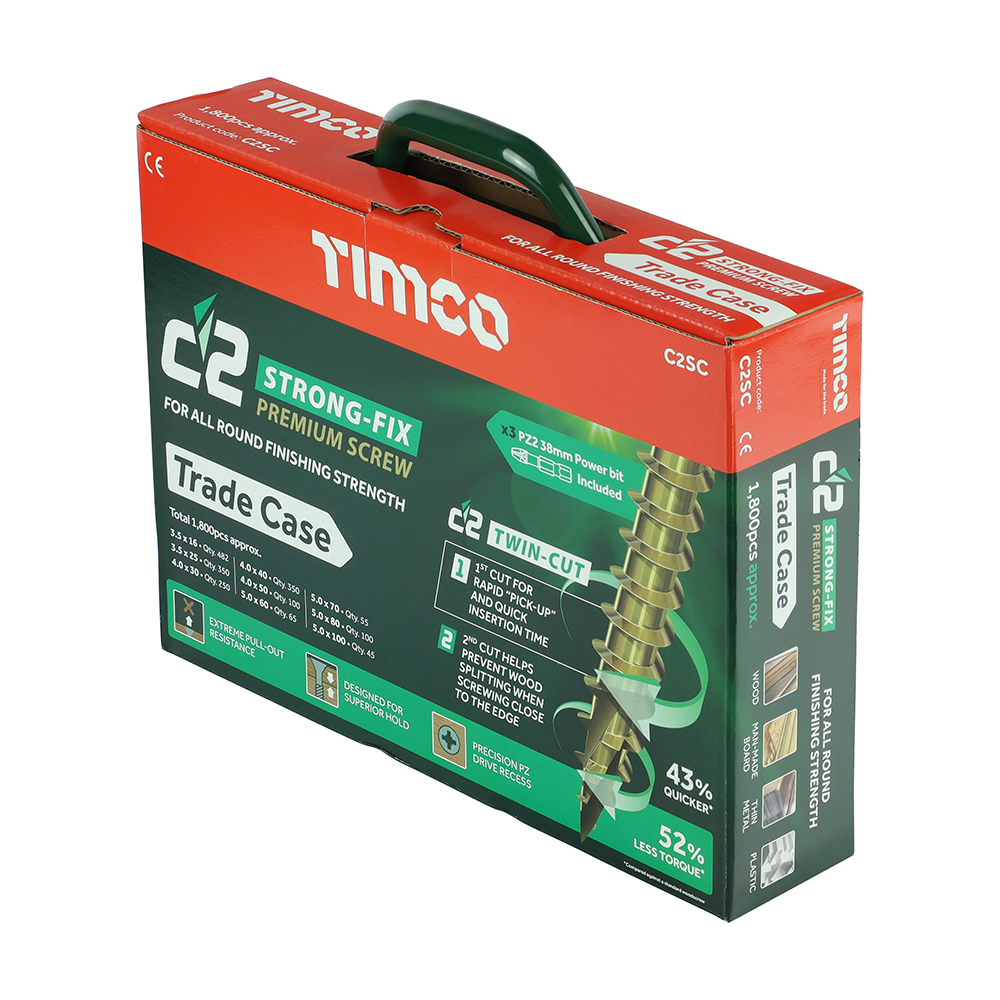

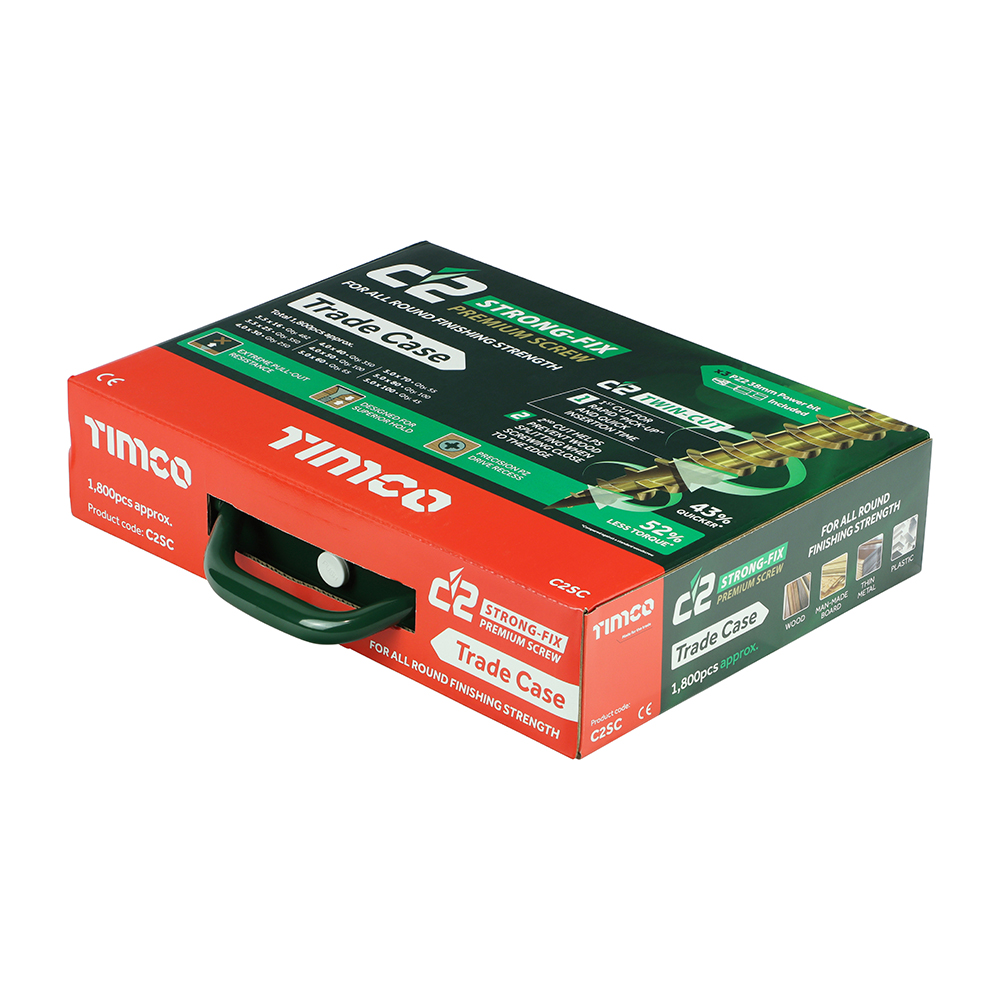

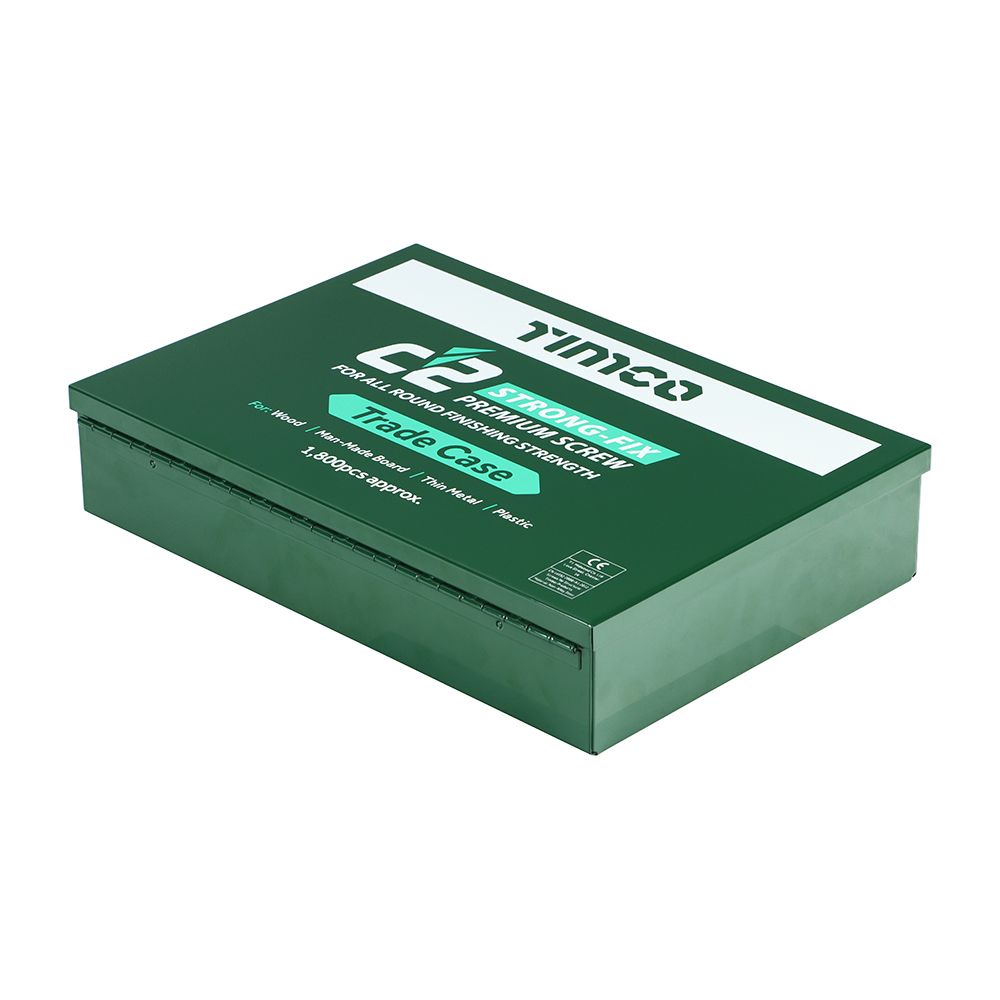

Available in a convenient trade case for easy storage and organization. Containing a variety of popular screw sizes and impact driver bits.
- Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
- Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
- Dual angle thread for ultimate performance and exceptionally high pull-out resistance
- Patented twin cut technology for rapid "pick-up" and reduces timber splitting
- Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specification
| Length mm | Assorted |
| Diameter mm | Assorted |
| Size mm | Assorted |
| Thread Length mm | Assorted |
| Lubrication | Gleitmo |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Indoor, Covered Outdoor |
| Pack Dimensions L x W x H mm | 343 x 290 x 111 |
| Pack Weight kg | 5.968 |
| Carton Qty Packs | N/A |
| Pallet Qty Packs | 77 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | C2SC |
| SKU Barcode | 5055893307366 |
| Size imp | Assorted |
| Thread Dia mm | Assorted |
Product Specifications
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk |
| Material | Hardened Steel |
| Point Type | Twin-Cut |
| Recess Type | Pozi |
| Thread Type | 40° Single |
| Application | Joinery, Carpentry, Timber Construction, Furniture Manufacturing |
| Driver Bit Size | PZ2 |
| Resistant Type | Corrosion-Resistant |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
| Contents | 3.5 x 16mm (Qty 480), 3.5 x 25mm (Qty 350), 4.0 x 30mm (Qty 250), 4.0 x 40mm (Qty 350), 4.0 x 50mm (Qty 100), 5.0 x 60mm (Qty 65), 5.0 x 70mm (Qty 55), 5.0 x 80mm (Qty 100), 5.0 x 100mm (Qty 45), PZ2 38mm Power Bit (Qty 3) |
Attribute Group 1
| Brand | TIMCO |
C2 Strong-Fix Trade Case - PZ - Double Countersunk - Yellow
1,798pcs
- Product Code: C2SC
- Pack Type: Case
- Pack Quantity: 1798
- Barcode: 5055893307366
