Product Information

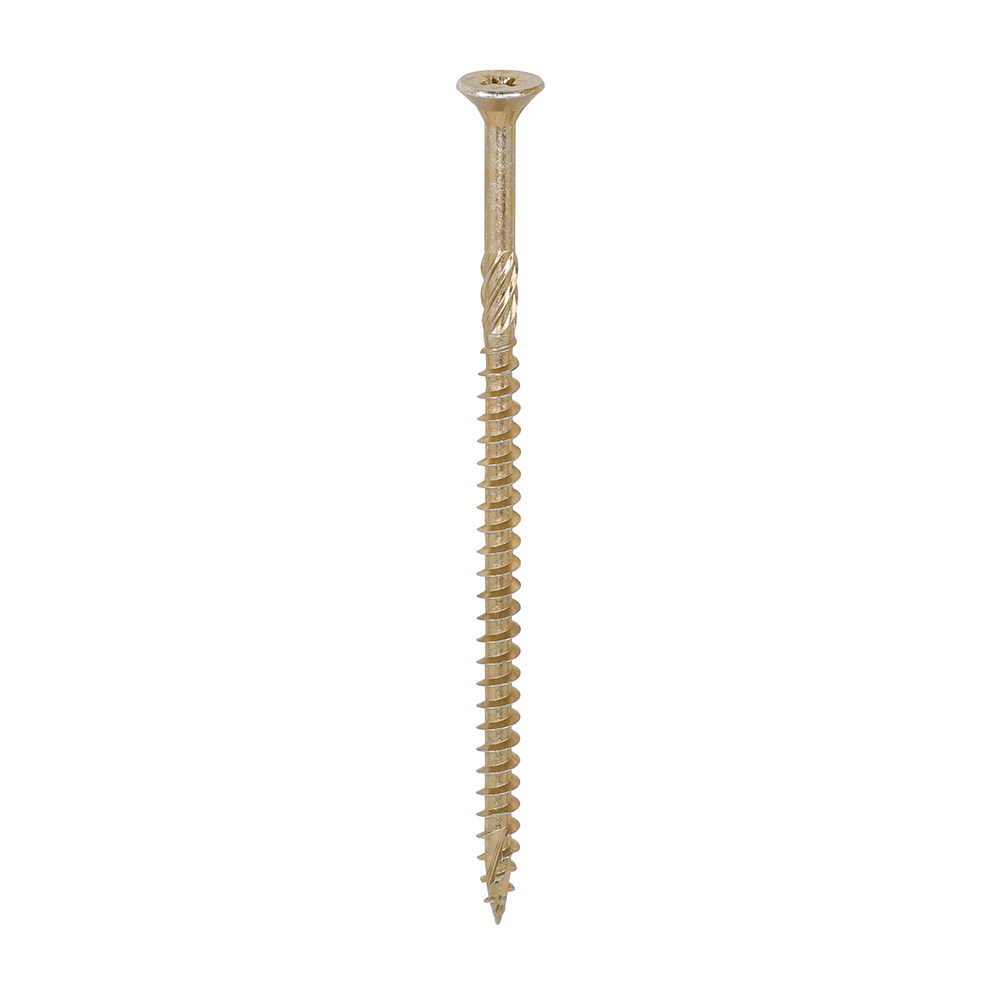

C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
  • Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
  • Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
  • Dual angle thread for ultimate performance and exceptionally high pull-out resistance
  • Patented twin cut technology for rapid "pick-up" and reduces timber splitting
  • Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  • Helix shank for removing debris and to improve clamping
Documents
Technical Specifications
Product Specifications
Gauge 10
Colour Yellow
Finish Zinc & Yellow
Head Type Double Countersunk
Material Hardened Steel
Point Type Twin-Cut
Recess Type Pozi
Thread Coverage Partially Threaded
Thread Type 40° Single
Application Joinery, Carpentry, Timber Construction, Furniture Manufacturing
Driver Bit Size PZ2

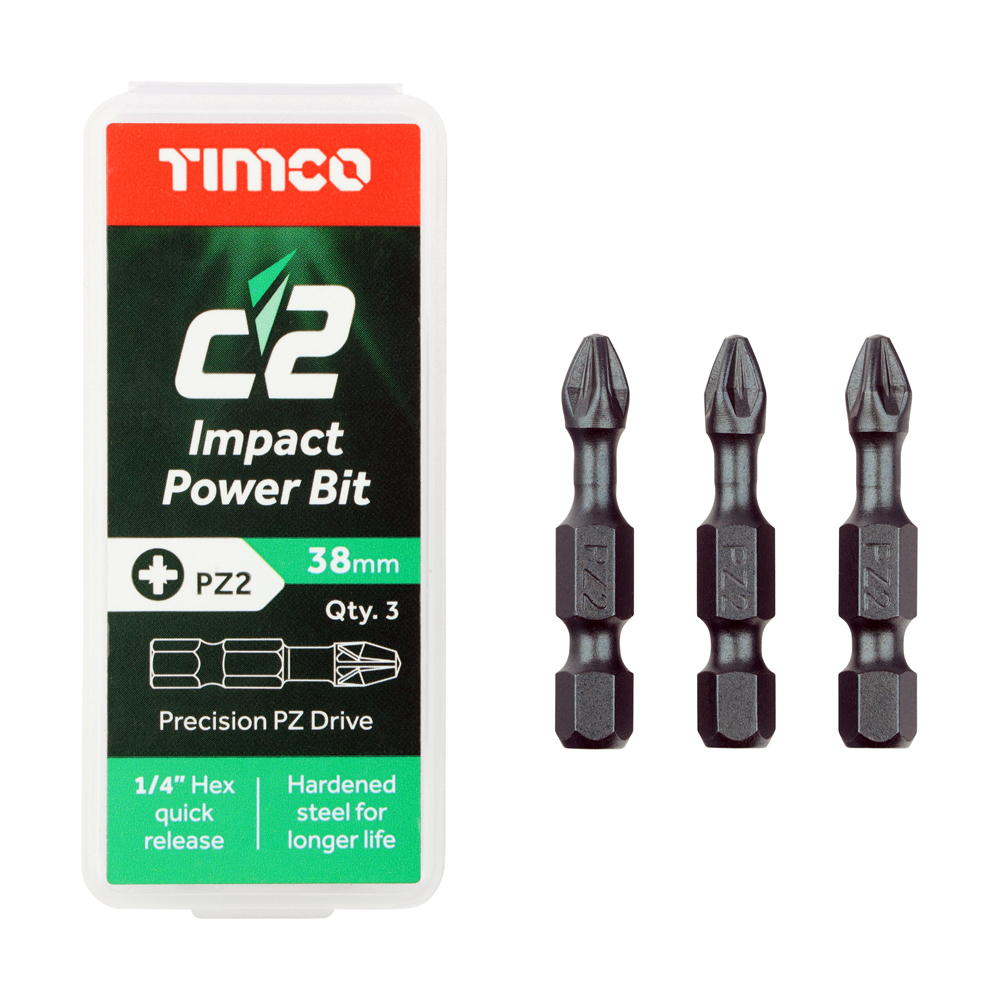

Included Items PZ2 38mm Impact Power Bit (Qty 3)
Resistant Type Corrosion-Resistant
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Product Specification
Length inch 4
Length mm 100
Diameter mm 5.0
Size mm 5.0 x 100
Thread Length mm 70
Lubrication Gleitmo
Shank Type Helix
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Indoor Outdoor Usage Indoor, Covered Outdoor
Pack Dimensions L x W x H mm 169 x 151 x 118
Pack Weight kg 2.584
Carton Qty Packs 4
Pallet Qty Packs 180
CE Standard Web BS EN 14592:2008
Product Code 50100C2TUB
SKU Barcode 5055331896421
Size imp 10 x 4
Thread Dia mm 5
Inner Thread Dia mm 2.95
Head Dia mm 9.7
Attribute Group 1
Brand TIMCO

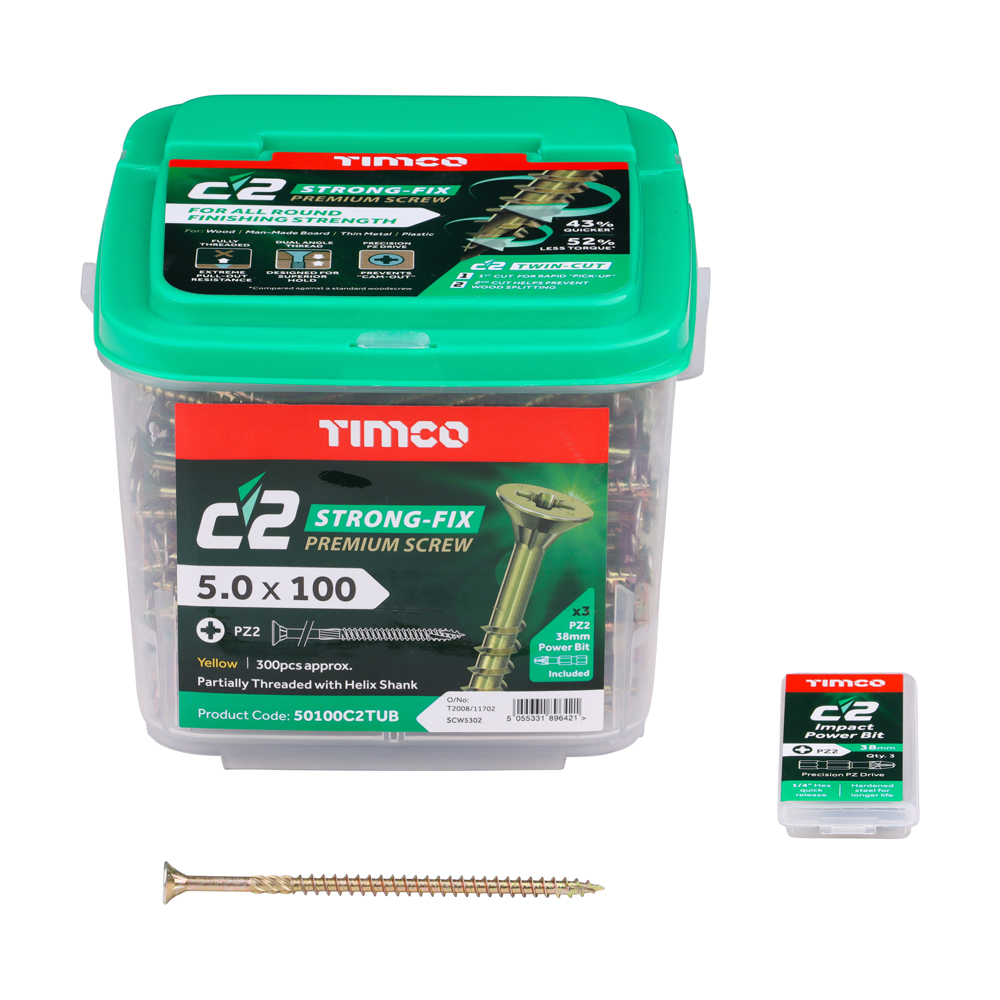

C2 Strong-Fix - PZ - Double Countersunk - Twin-Cut - Yellow

5.0 x 100

  • Product Code: 50100C2TUB

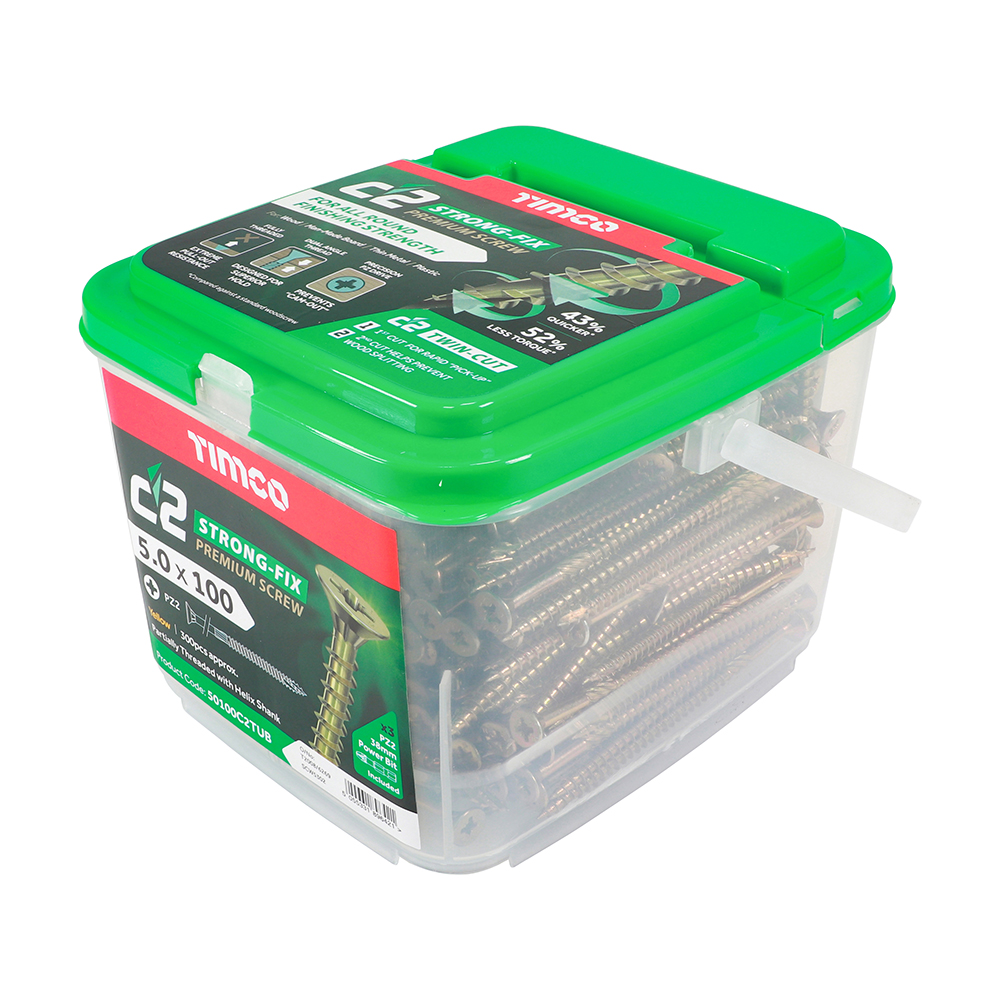

  • Pack Type: Tub
  • Pack Quantity: 300
  • Barcode: 5055331896421
