Product Information

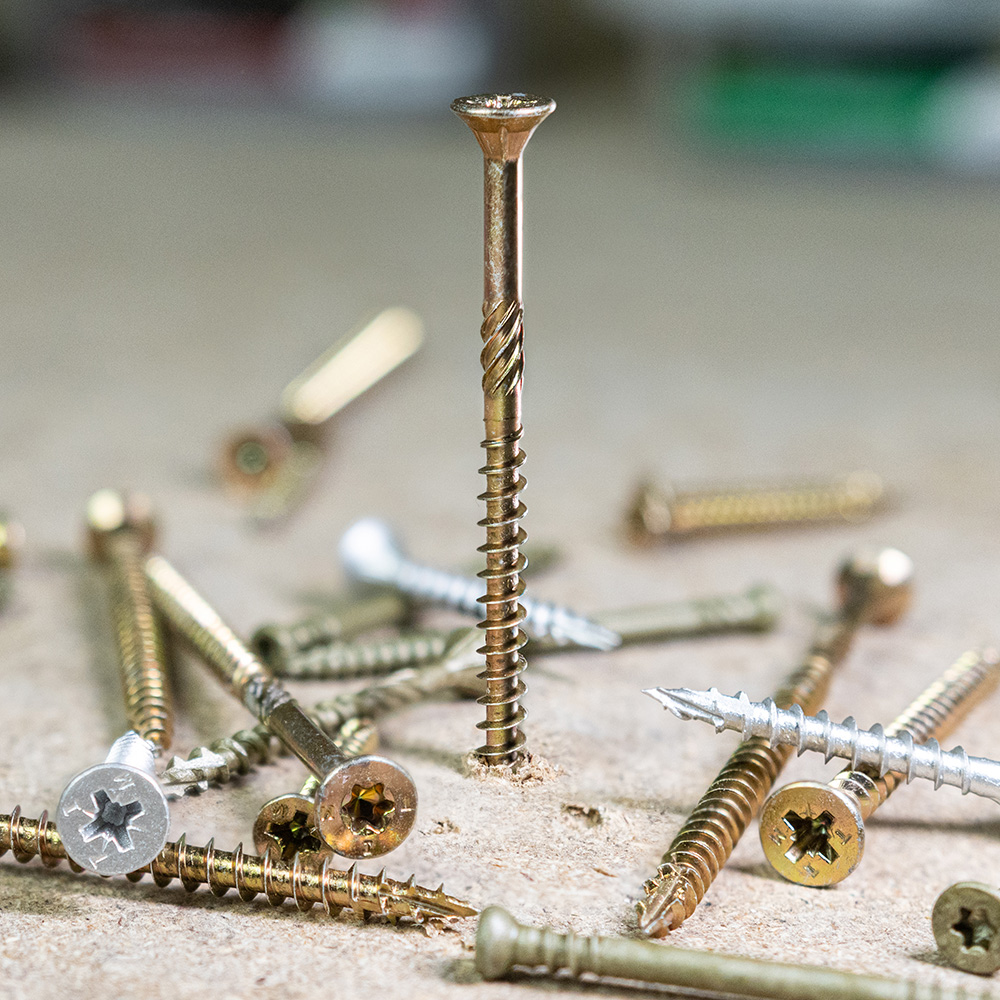

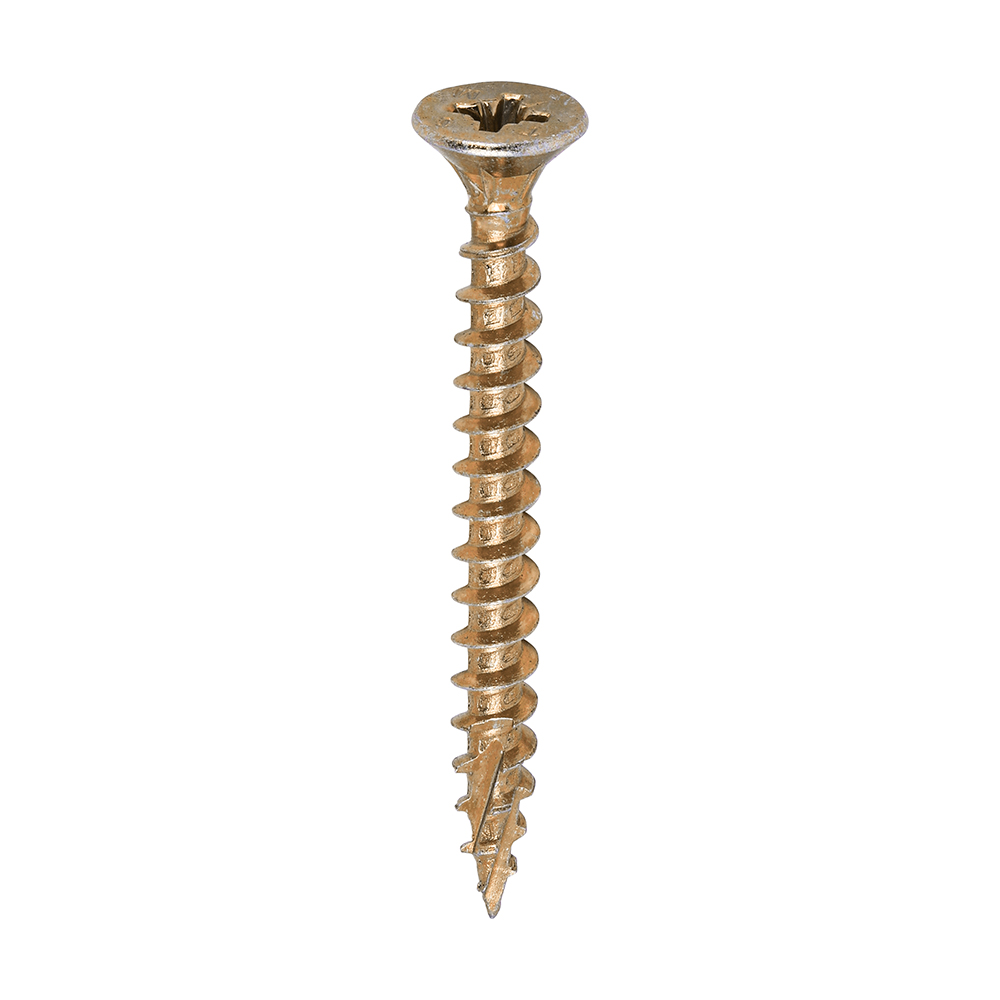

C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
  • Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
  • Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
  • Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
  • Dual angle thread for ultimate performance and exceptionally high pull-out resistance
  • Patented twin cut technology for rapid "pick-up" and reduces timber splitting
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 10
Colour Yellow
Finish Zinc & Yellow
Head Type Double Countersunk
Material Hardened Steel
Point Type Twin-Cut
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type 40° Single Deep
Application Joinery, Carpentry, Timber Construction, Furniture Manufacturing
Driver Bit Size PZ2
Resistant Type Corrosion-Resistant
Substrates Hardwood, Softwood, Chipboard, Plastic, Thin Sheet Metal
Product Specification
Length inch 2
Length mm 50
Diameter mm 5.0
Size mm 5.0 x 50
Thread Length mm 45
Lubrication Gleitmo
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Indoor Outdoor Usage Indoor, Covered Outdoor
Pack Dimensions L x W x H mm 191 x 138 x 127
Pack Weight kg 4.376
Carton Qty Packs 6
Pallet Qty Packs 144
CE Standard Web BS EN 14592:2008
Product Code 50050C2IND
SKU Barcode 5056110874548
Size imp 10 x 2
Thread Dia mm 5
Inner Thread Dia mm 2.95
Head Dia mm 9.7
Attribute Group 1
Brand TIMCO

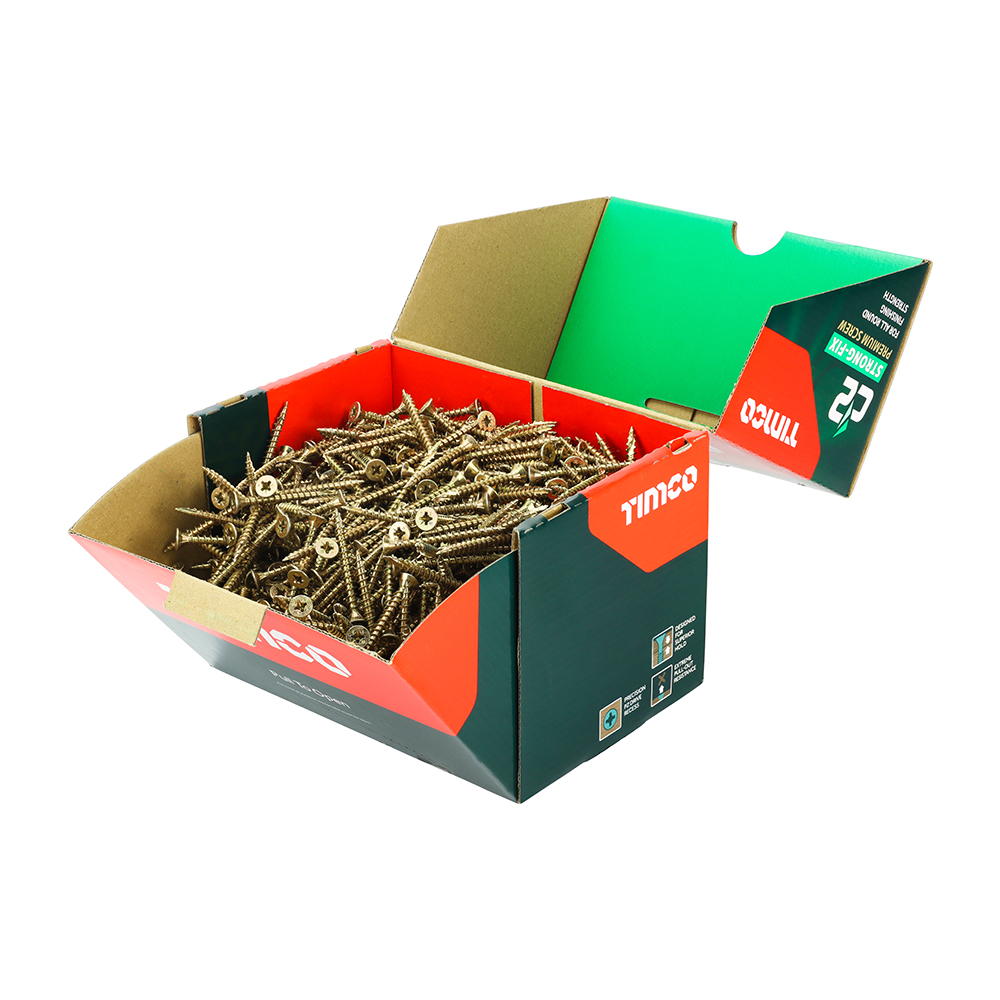

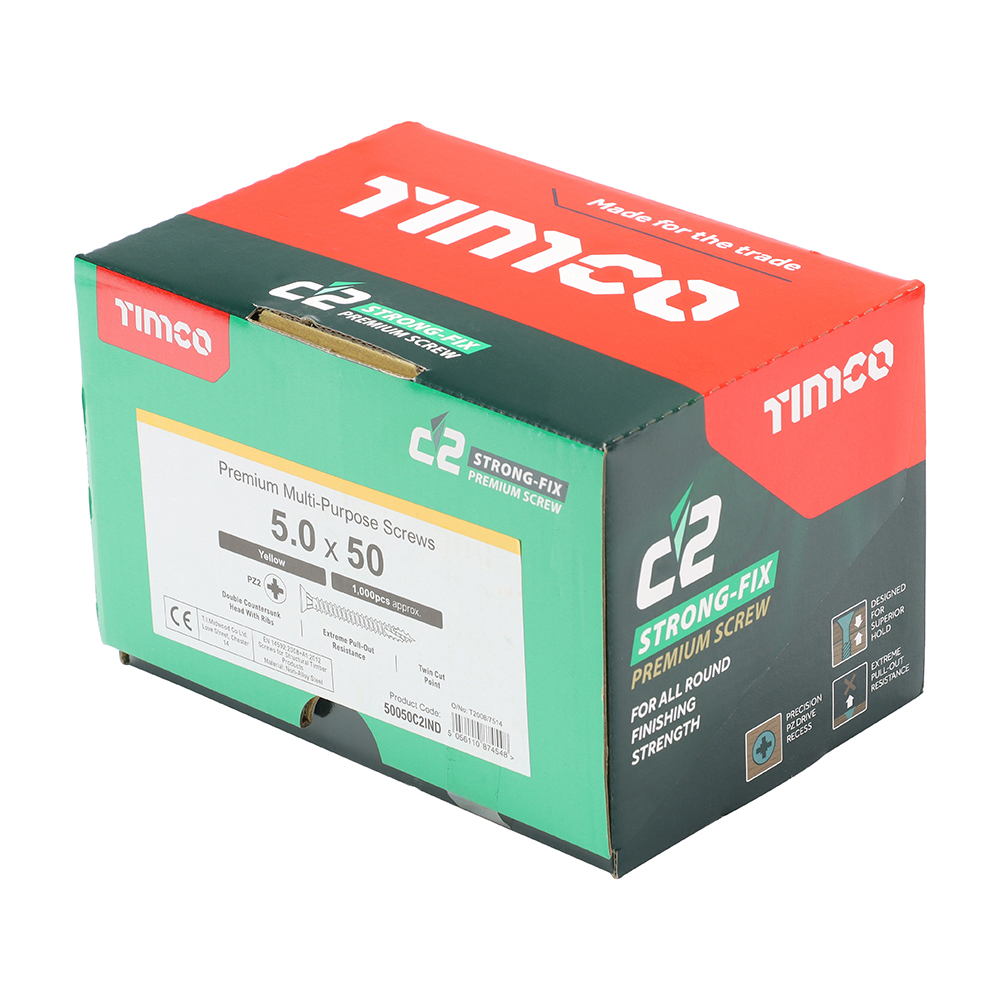

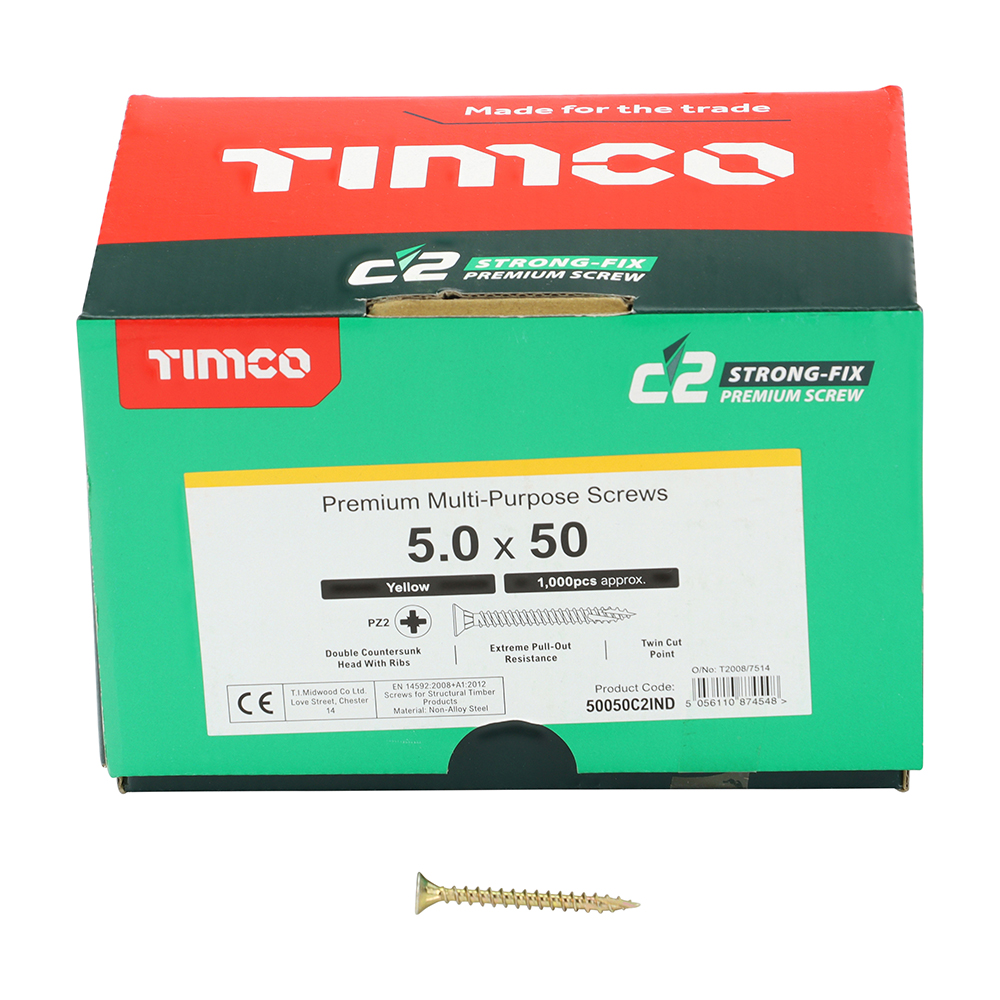

C2 Strong-Fix - PZ - Double Countersunk - Twin-Cut - Yellow

5.0 x 50

  • Product Code: 50050C2IND
  • Pack Type: Box
  • Pack Quantity: 1000
  • Barcode: 5056110874548
