Product Information

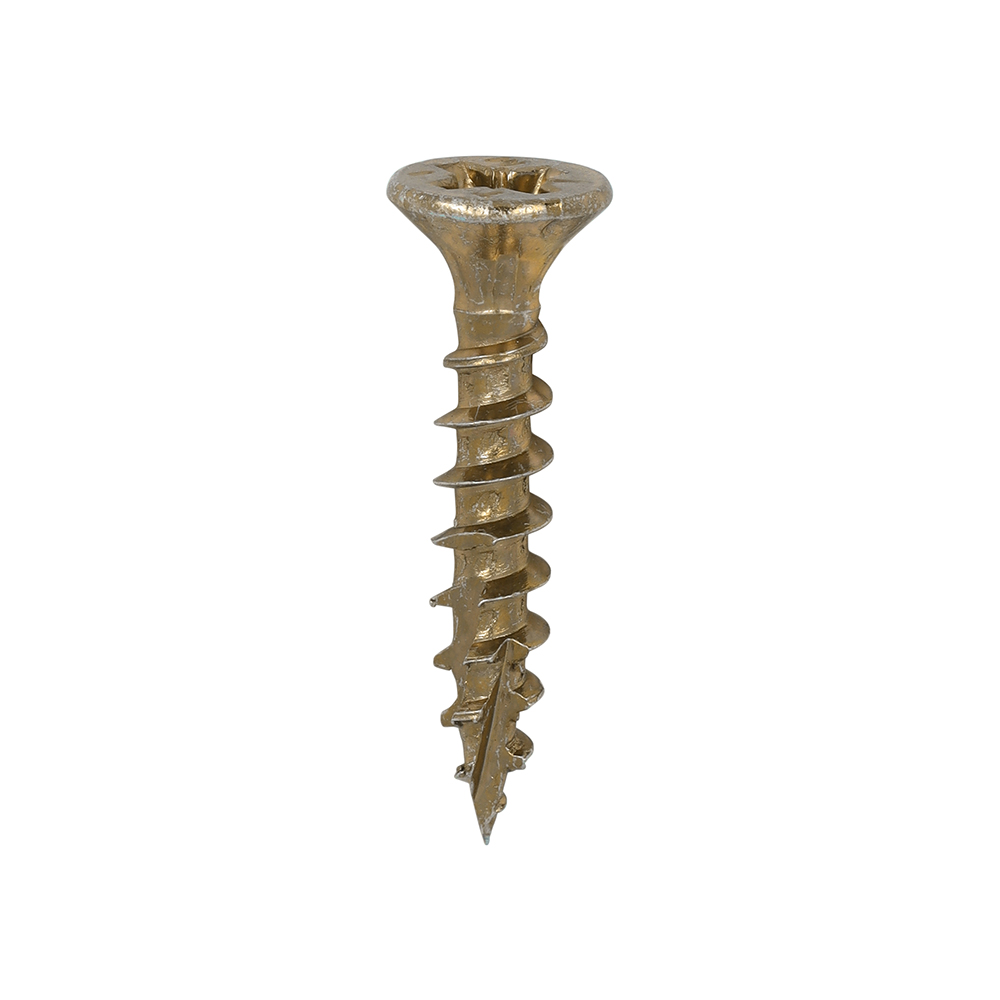

C2 is a revolutionary high-performance screw designed using modern manufacturing methods. Its superior holding strength in a wide variety of materials provides ultimate performance.
- Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
- Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
- Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
- Dual angle thread for ultimate performance and exceptionally high pull-out resistance
- Patented twin cut technology for rapid "pick-up" and reduces timber splitting
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 6 |
| Colour | Yellow |
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk |
| Material | Hardened Steel |
| Point Type | Twin-Cut |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 40° Single |
| Application | Joinery, Carpentry, Timber Construction, Furniture Manufacturing |
| Driver Bit Size | PZ2 |
| Resistant Type | Corrosion-Resistant |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 3/4 |
| Length mm | 20 |
| Diameter mm | 3.5 |
| Size mm | 3.5 x 20 |
| Thread Length mm | 15 |
| Lubrication | Gleitmo |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Internal |
| Pack Dimensions L x W x H mm | 72 x 60 x 34 |
| Pack Weight kg | 0.18 |
| Carton Qty Packs | 75 |
| Pallet Qty Packs | 2700 |
| CE Standard Web | BS EN 14592:2008 |
| Service Class | 1 |
| Product Code | 35020C2 |
| SKU Barcode | 5055893311110 |
| Size imp | 6 x 3/4 |
| Thread Dia mm | 3.5 |
| Inner Thread Dia mm | 2.15 |
| Head Dia mm | 6.6 |
Attribute Group 1
| Brand | TIMCO |

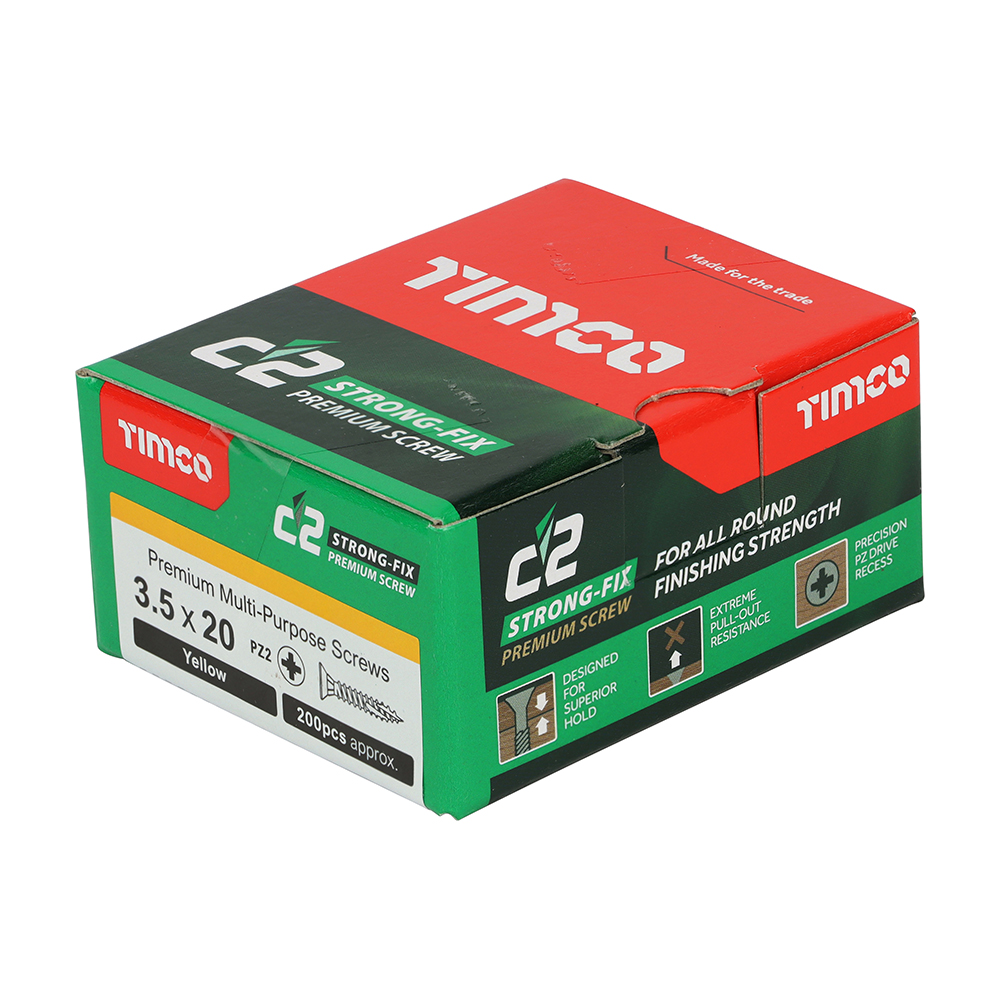

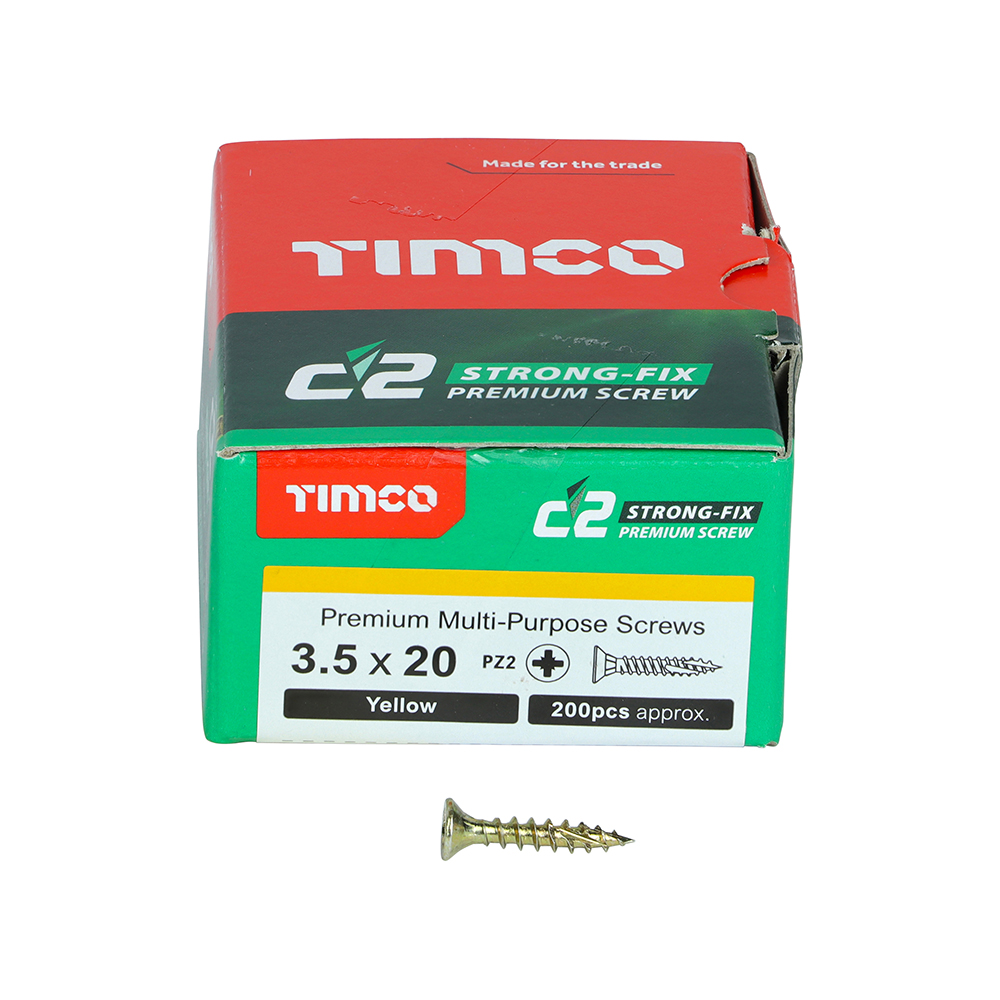

C2 Strong-Fix - PZ - Double Countersunk - Sharp Point - Yellow
3.5 x 20
- Product Code: 35020C2
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055893311110
