Product Information

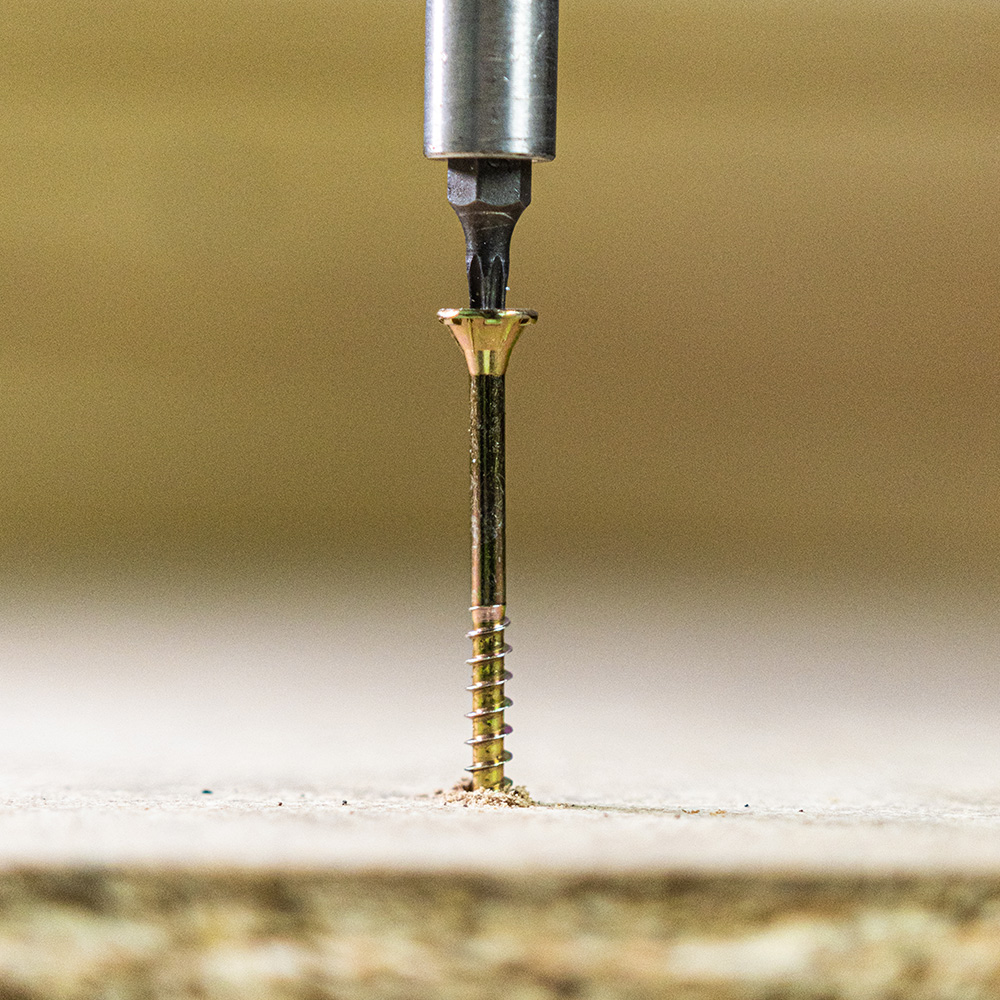

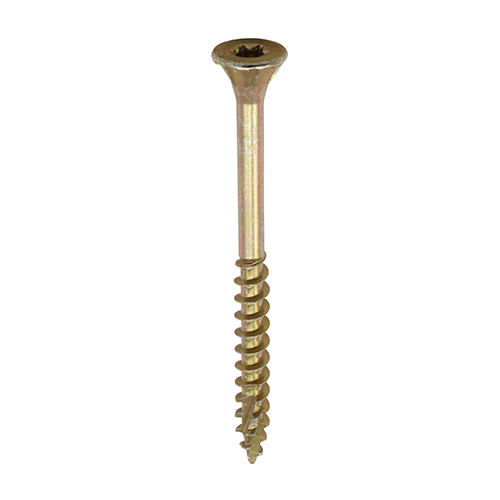

A specialised fastener designed to securely fix and clamp floorboards to joists.
C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting.
- Specifically Designed Dual Action Head - with finishing teeth and self-countersinking ribs ensures a flush finish.
- Plain shank for pulling the two substrates together without manual clamping
- Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
- Dual angle thread for ultimate performance and exceptionally high pull-out resistance
- Patented twin cut technology for rapid "pick-up" and reduces timber splitting
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Colour | Yellow |
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk with Ribs |
| Material | Hardened Steel |
| Point Type | Twin-Cut |
| Recess Type | TX Drive |
| Thread Coverage | Partially Threaded |
| Thread Type | 40° Single |
| Application | Flooring Installation |
| Driver Bit Size | TX20 |
| Included Items | TX20 25mm Bit (Qty 1) |
| Resistant Type | Corrosion-Resistant |
| Substrates | Hardwood, Softwood, Chipboard, MDF |
Product Specification
| Length inch | 2 1/4 |
| Length mm | 55 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 55 |
| Thread Length mm | 30 |
| Lubrication | Gleitmo |
| Shank Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Indoor, Covered Outdoor |
| Pack Dimensions L x W x H mm | 145 x 112 x 111 |
| Pack Weight kg | 0.896 |
| Carton Qty Packs | 12 |
| Pallet Qty Packs | 360 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Clearance |
| Product Code | 42055C2MDF |
| SKU Barcode | 5055893317617 |
| Size imp | 8 x 2 1/4 |
| Thread Dia mm | 4.2 |
| Inner Thread Dia mm | 2.5 |
| Head Dia mm | 8.2 |
Attribute Group 1
| Brand | TIMCO |
C2 Floor-Fix - TX - Double Countersunk with Ribs - Twin-Cut - Yellow
4.2 x 55
- Product Code: 42055C2MDF

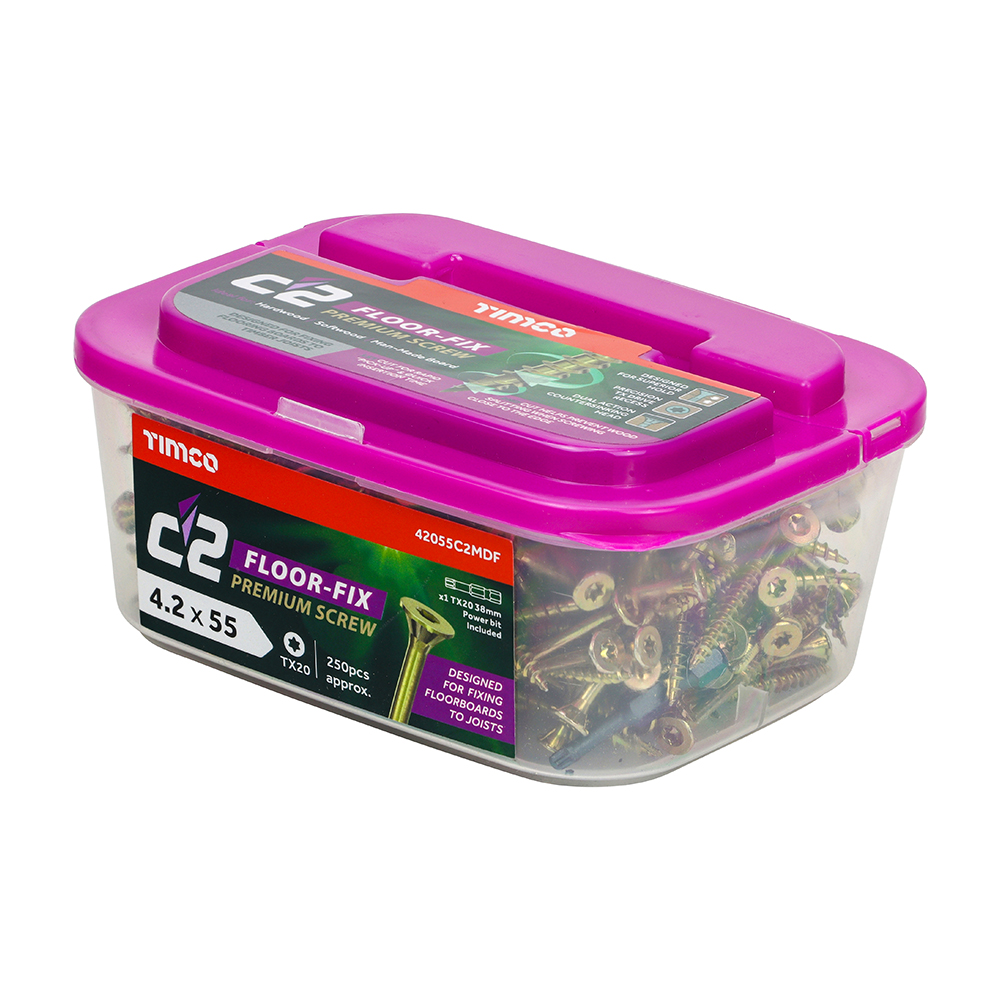

- Pack Type: Tub
- Pack Quantity: 250
- Barcode: 5055893317617
