Product Information

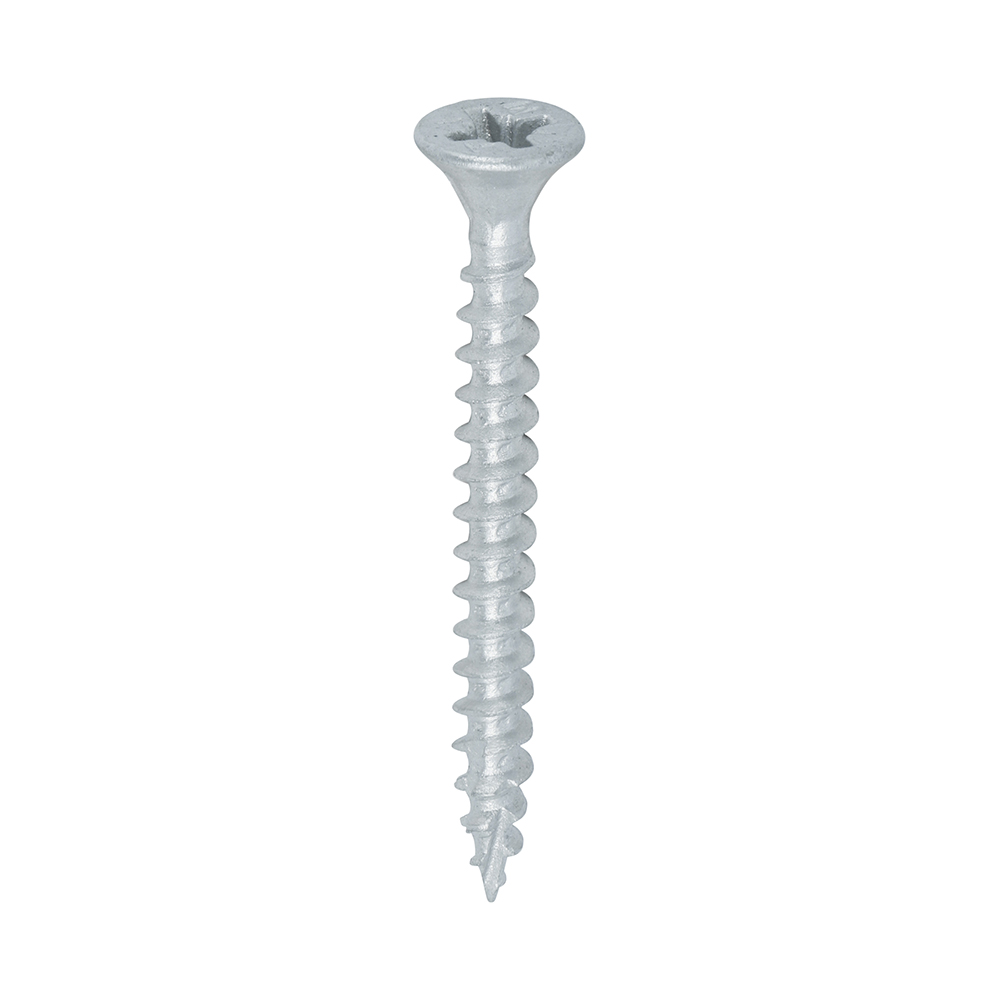

The silver organic coated C2 Exterior Strong-Fix provides exceptional corrosion resistance for use in harsh environments. C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
  • Ribs under head for improved countersinking
  • Special plating to give 1,000 hours salt spray resistance
  • Multi-layer coating consisting of organic top coat barrier and a zinc base layer
  • Dual angle thread for ultimate performance and exceptionally high pull-out resistance
  • Patented twin cut technology for rapid "pick-up" and reduces timber splitting
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 8
Colour Silver
Finish Exterior (Silver Organic)
Head Type Double Countersunk with Ribs
Material Hardened Steel
Point Type Twin-Cut
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type 40° Single
Application Decking, Landscaping, Outdoor Structures (i.e. Pergolas, Fences, Sheds), General External Applications, External Ironmongery
Driver Bit Size PZ2
Resistant Type Corrosion-Resistant
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Product Specification
Length inch 1 1/2
Length mm 40
Diameter mm 4.0
Size mm 4.0 x 40
Thread Length mm 35
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Indoor Outdoor Usage Outdoor
Pack Dimensions L x W x H mm 94 x 76 x 58
Pack Weight kg 0.44
Carton Qty Packs 50
Pallet Qty Packs 1200
CE Standard Web BS EN 14592:2008
Product Code 40040C2SBX
SKU Barcode 5056110896052
Size imp 8 x 1 1/2
Thread Dia mm 4
Inner Thread Dia mm 2.35
Head Dia mm 7.7
Attribute Group 1
Brand TIMCO

C2 Exterior Strong-Fix - PZ - Double Countersunk with Ribs - Twin-Cut - Silver

4.0 x 40

  • Product Code: 40040C2SBX

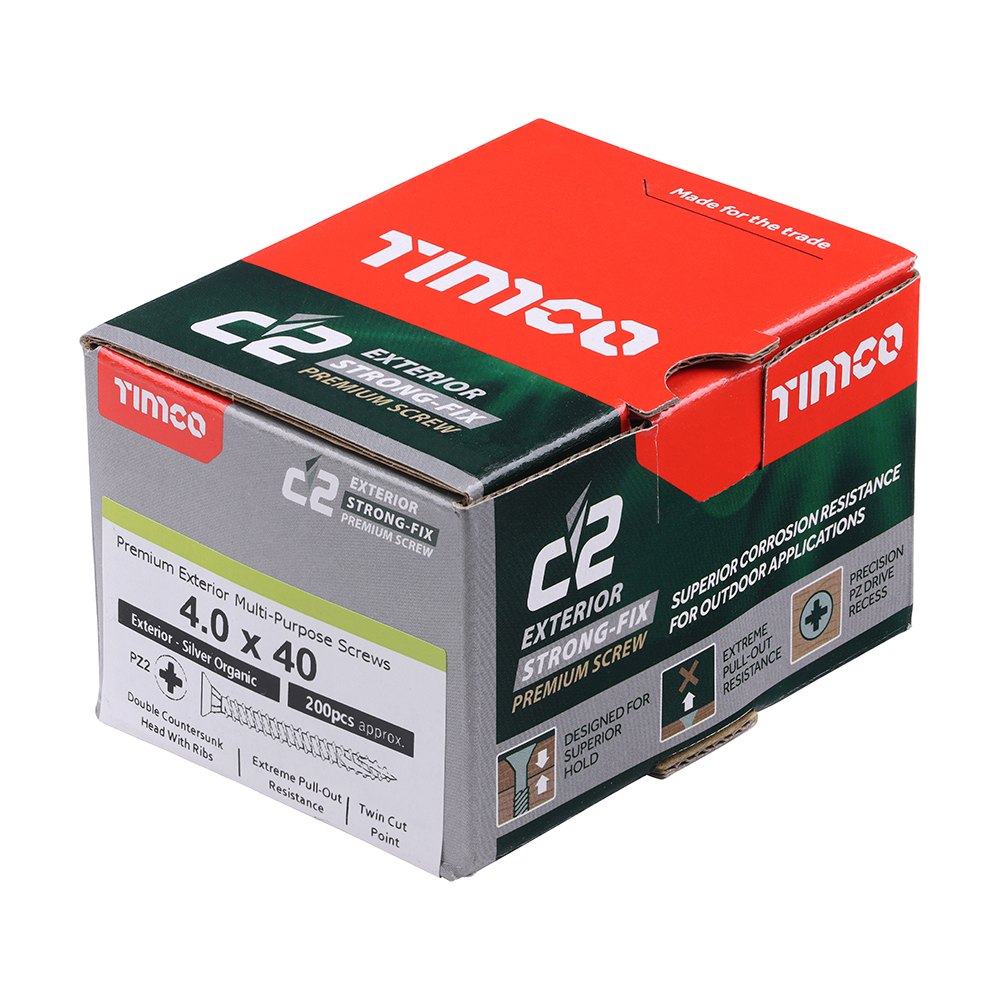

  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5056110896052
