Product Information
The silver organic coated C2 Exterior Strong-Fix provides exceptional corrosion resistance for use in harsh environments.
C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
- Ribs under head for improved countersinking
- Special plating to give 1,000 hours salt spray resistance
- Multi-layer coating consisting of organic top coat barrier and a zinc base layer
- Dual angle thread for ultimate performance and exceptionally high pull-out resistance
- Patented twin cut technology for rapid "pick-up" and reduces timber splitting
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Colour | Silver |
| Finish | Exterior (Silver Organic) |
| Head Type | Double Countersunk with Ribs |
| Material | Hardened Steel |
| Point Type | Twin-Cut |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 40° Single |
| Application | Decking, Landscaping, Outdoor Structures (i.e. Pergolas, Fences, Sheds), General External Applications, External Ironmongery |
| Driver Bit Size | PZ2 |
| Resistant Type | Corrosion-Resistant |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 2 3/4 |
| Length mm | 70 |
| Diameter mm | 5.0 |
| Size mm | 5.0 x 70 |
| Thread Length mm | 65 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Indoor Outdoor Usage | Outdoor |
| Pack Dimensions L x W x H mm | 138 x 94 x 94 |
| Pack Weight kg | 1.16 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 384 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 50070C2SBX |
| SKU Barcode | 5056110896120 |
| Size imp | 10 x 2 '3/4 |
| Thread Dia mm | 5 |
| Inner Thread Dia mm | 2.95 |
| Head Dia mm | 9.7 |
Attribute Group 1
| Brand | TIMCO |

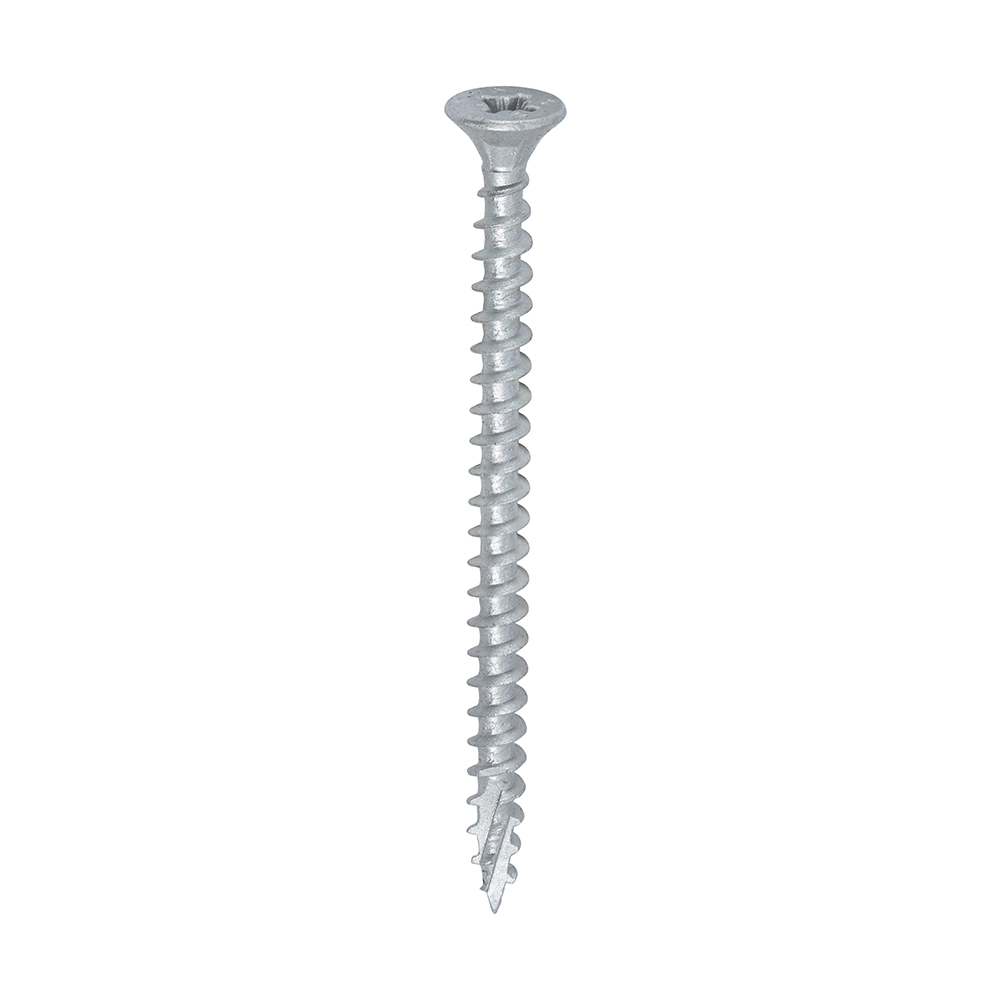

C2 Exterior Strong-Fix - PZ - Double Countersunk with Ribs - Twin-Cut - Silver
5.0 x 70
- Product Code: 50070C2SBX

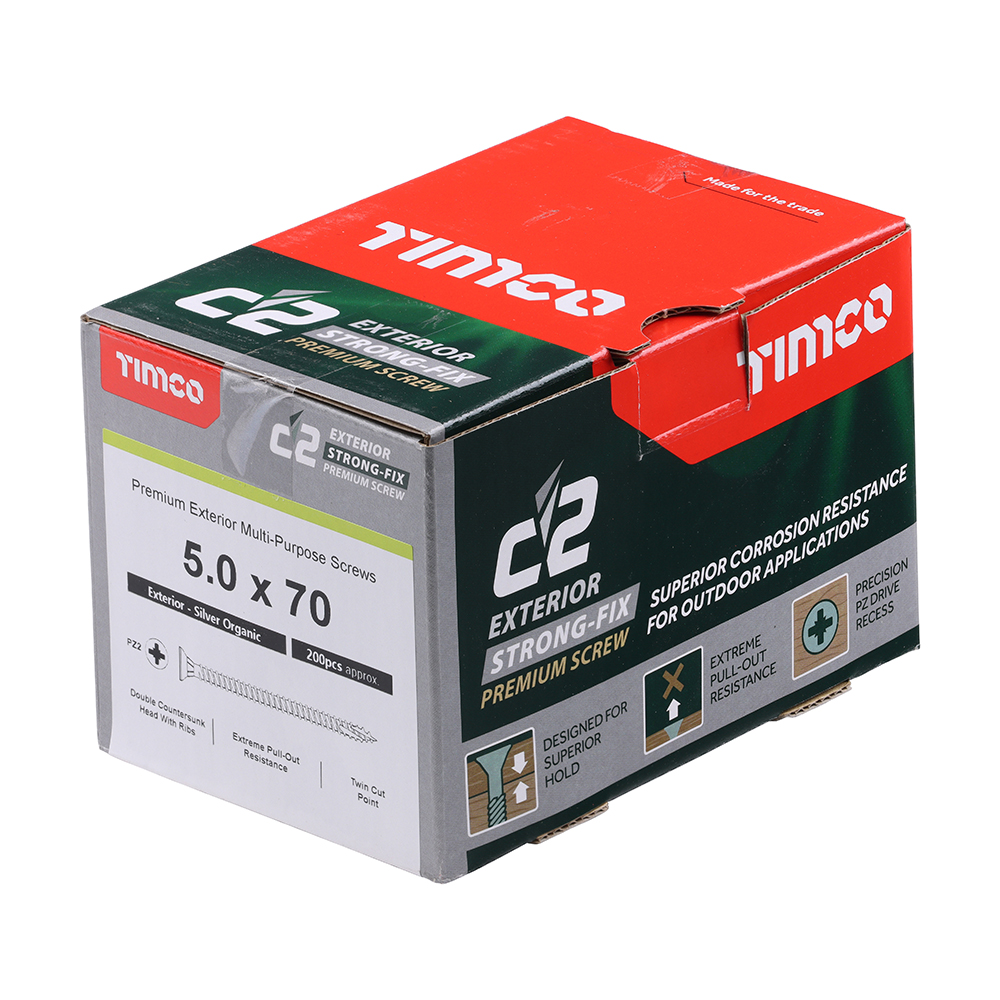

- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5056110896120
