Product Information
The silver organic coated C2 Exterior Strong-Fix provides exceptional corrosion resistance for use in harsh environments. C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
  • Ribs under head for improved countersinking
  • Special plating to give 1,000 hours salt spray resistance
  • Multi-layer coating consisting of organic top coat barrier and a zinc base layer
  • Dual angle thread for ultimate performance and exceptionally high pull-out resistance
  • Patented twin cut technology for rapid "pick-up" and reduces timber splitting
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
Gauge 10
Colour Silver
Finish Exterior (Silver Organic)
Head Type Double Countersunk with Ribs
Material Hardened Steel
Point Type Twin-Cut
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type 40° Single
Application Decking, Landscaping, Outdoor Structures (i.e. Pergolas, Fences, Sheds), General External Applications, External Ironmongery
Driver Bit Size PZ2
Resistant Type Corrosion-Resistant
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Product Specification
Length inch 3
Length mm 80
Diameter mm 5.0
Size mm 5.0 x 80
Thread Length mm 70
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Indoor Outdoor Usage Outdoor
Pack Dimensions L x W x H mm 136 x 96 x 94
Pack Weight kg 1.34
Carton Qty Packs 16
Pallet Qty Packs 384
CE Standard Web BS EN 14592:2008
Product Code 50080C2SBX
SKU Barcode 5056110896137
Size imp 10 x 3
Thread Dia mm 5
Inner Thread Dia mm 2.95
Head Dia mm 9.7
Attribute Group 1
Brand TIMCO

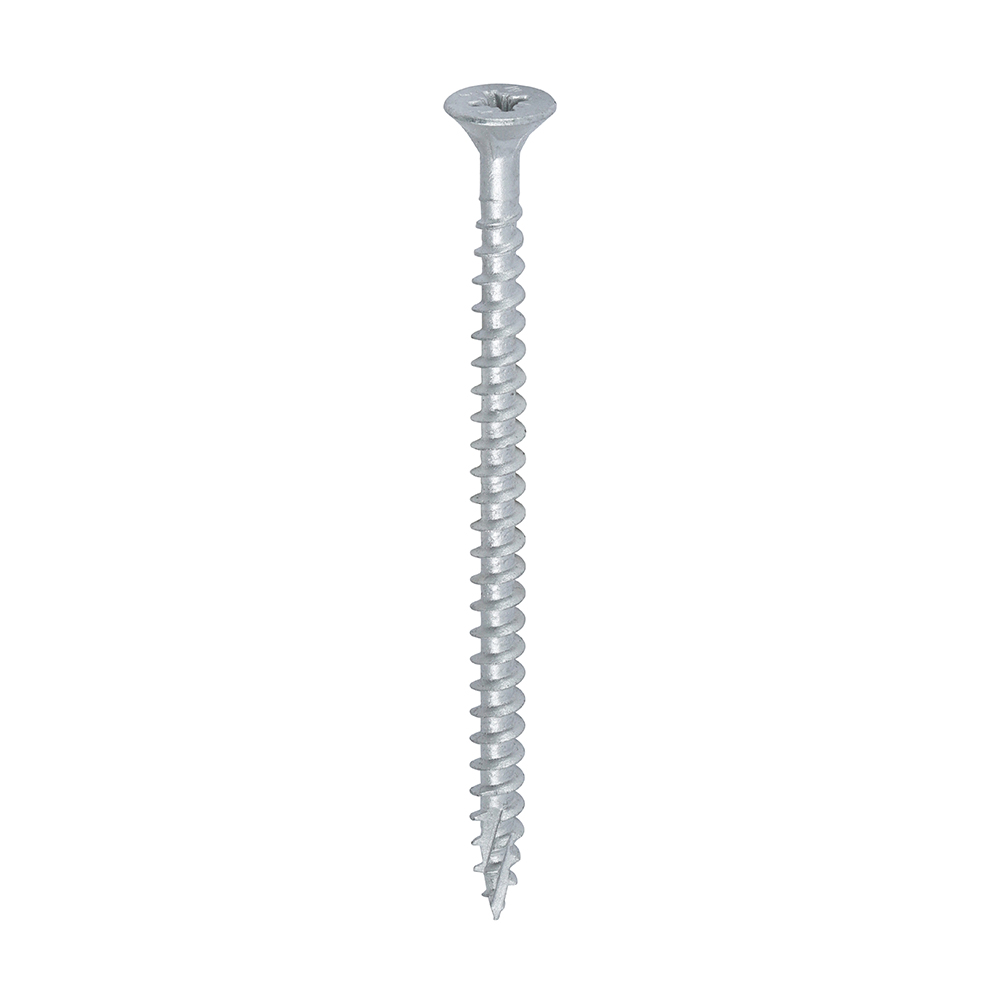

C2 Exterior Strong-Fix - PZ - Double Countersunk with Ribs - Twin-Cut - Silver

5.0 x 80

  • Product Code: 50080C2SBX

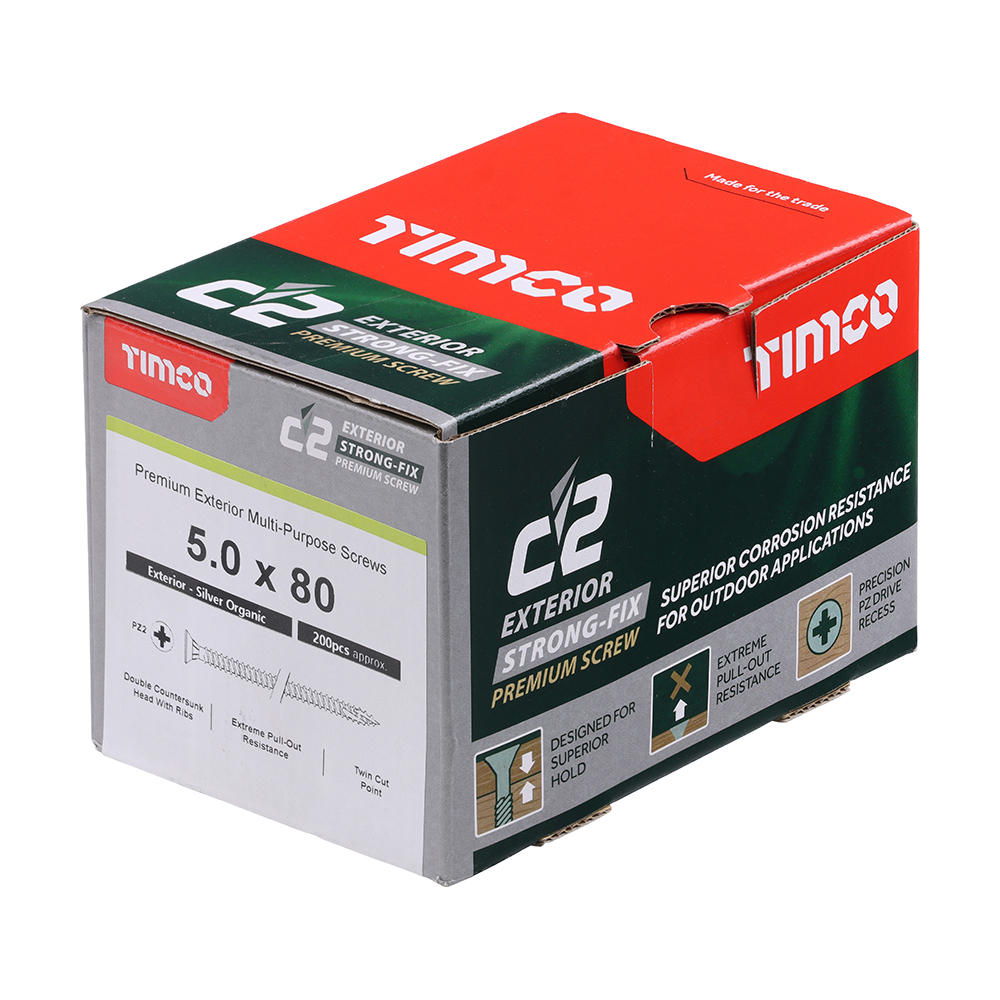

  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5056110896137
