Product Information
The silver organic coated C2 Exterior Strong-Fix provides exceptional corrosion resistance for use in harsh environments. C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
  • Ribs under head for improved countersinking
  • Special plating to give 1,000 hours salt spray resistance
  • Multi-layer coating consisting of organic top coat barrier and a zinc base layer
  • Dual angle thread for ultimate performance and exceptionally high pull-out resistance
  • Patented twin cut technology for rapid "pick-up" and reduces timber splitting
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  • Helix shank for removing debris and to improve clamping
Documents
Technical Specifications
Product Specification
Gauge 12
Length inch 4
Length mm 100
Diameter mm 6.0
Size mm 6.0 x 100
Thread Length mm 70
Colour Silver
Finish Exterior (Silver Organic)
Head Type Double Countersunk with Ribs
Material Hardened Steel
Point Type Twin-Cut
Recess Type Pozi
Shank Type Helix
Thread Coverage Partially Threaded
Thread Type 40° Single
Application Decking, Landscaping, Outdoor Structures (i.e. Pergolas, Fences, Sheds), General External Applications, External Ironmongery
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Driver Bit Size PZ3
Indoor Outdoor Usage Outdoor
Resistant Type Corrosion-Resistant
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Pack Dimensions L x W x H mm 138 x 92 x 64
Pack Weight kg 1.2
Carton Qty Packs 15
Pallet Qty Packs 540
CE Standard Web BS EN 14592:2008
Product Code 60100C2SBX
SKU Barcode 5056110896182
Size imp 12 x 4
Thread Dia mm 6
Inner Thread Dia mm 3.65
Head Dia mm 11.65
Attribute Group 1
Brand TIMCO

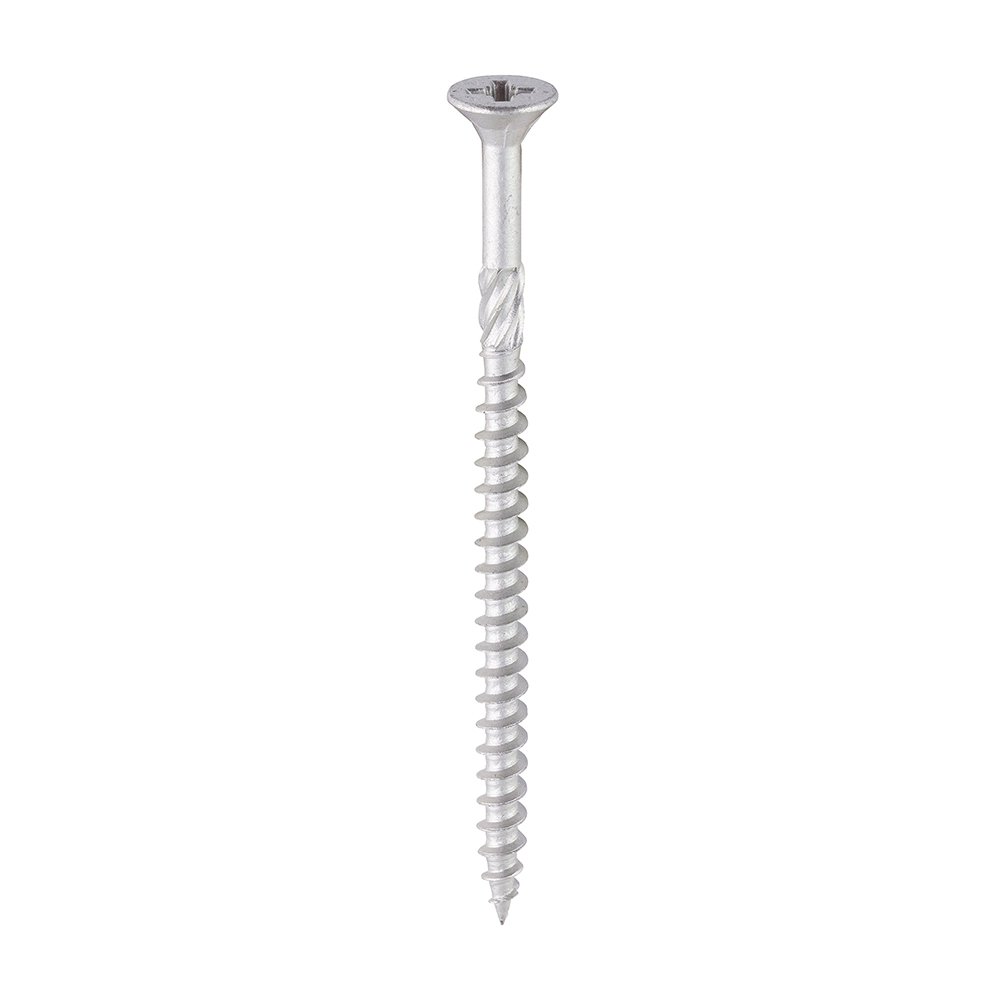

C2 Exterior Strong-Fix - PZ - Double Countersunk with Ribs - Twin-Cut - Silver

6.0 x 100

  • Product Code: 60100C2SBX
  • Pack Type: Box
  • Pack Quantity: 100
  • Barcode: 5056110896182
