Product Information

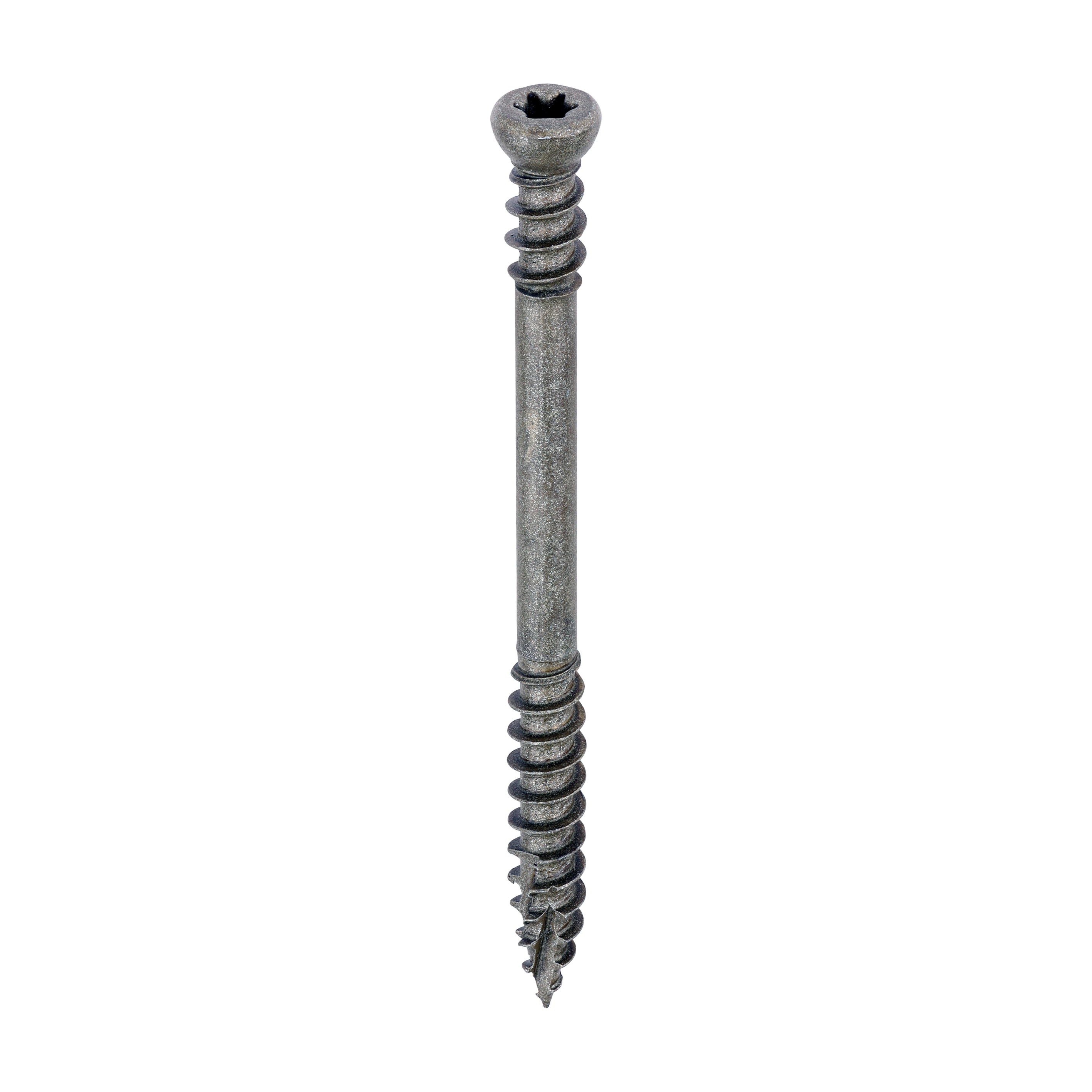

The C2 Deck-Fix features a reduced cylindrical head to provide a discrete finish for use in timber and composite decking.
C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a variety of decking materials providing an ultimate performance.
- Reduced cylindrical head gives a concealed finish
- Upper thread clamps decking boards to joists
- Patented twin cut tip, 1st cut for rapid "pick-up", 2nd cut prevents splitting
- Ideal for composite decking
Documents
Technical Specifications
Product Specifications
| Gauge | 9 |
| Colour | Green |
| Finish | Exterior (Green Organic) |
| Head Type | Cylinder |
| Material | Hardened Steel |
| Point Type | Twin-Cut |
| Recess Type | TX Drive |
| Thread Coverage | Partially Threaded |
| Thread Type | 40° Single Deep |
| Application | Decking |
| Driver Bit Size | TX15 |
| Included Items | TX15 25mm Bit (Qty 1) |
| Resistant Type | Corrosion-Resistant |
Product Specification
| Length inch | 2 1/2 |
| Length mm | 60 |
| Diameter mm | 4.5 |
| Size mm | 4.5 x 60 |
| Thread Length mm | Top - 8mm, Bottom - 25mm |
| Shank Type | Split Thread |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Indoor Outdoor Usage | Outdoor |
| Pack Dimensions L x W x H mm | 186 x 94 x 64 |
| Pack Weight kg | 1.08 |
| Carton Qty Packs | 18 |
| Pallet Qty Packs | 432 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 433209BX |
| SKU Barcode | 5056601904938 |
| Size imp | 9 x 2'1/2 |
| Thread Dia mm | 4.5 |
| Inner Thread Dia mm | 3.1 |
| Head Dia mm | 6.13 |
Attribute Group 1
| Brand | TIMCO |
C2 Deck-Fix - TX - Cylinder - Twin-Cut - Green
4.5 x 60
- Product Code: 433209BX

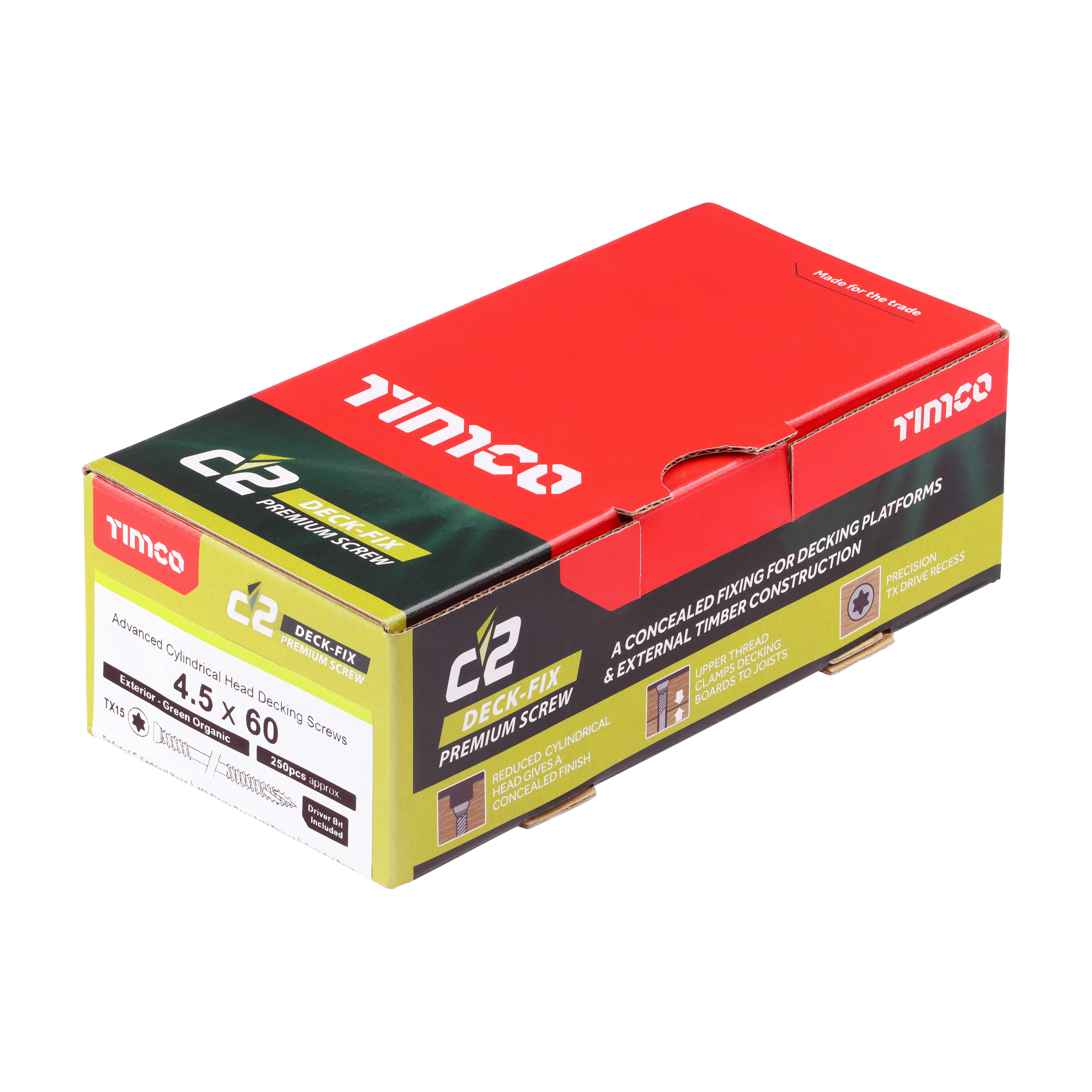

- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5056601904938
