Product Information

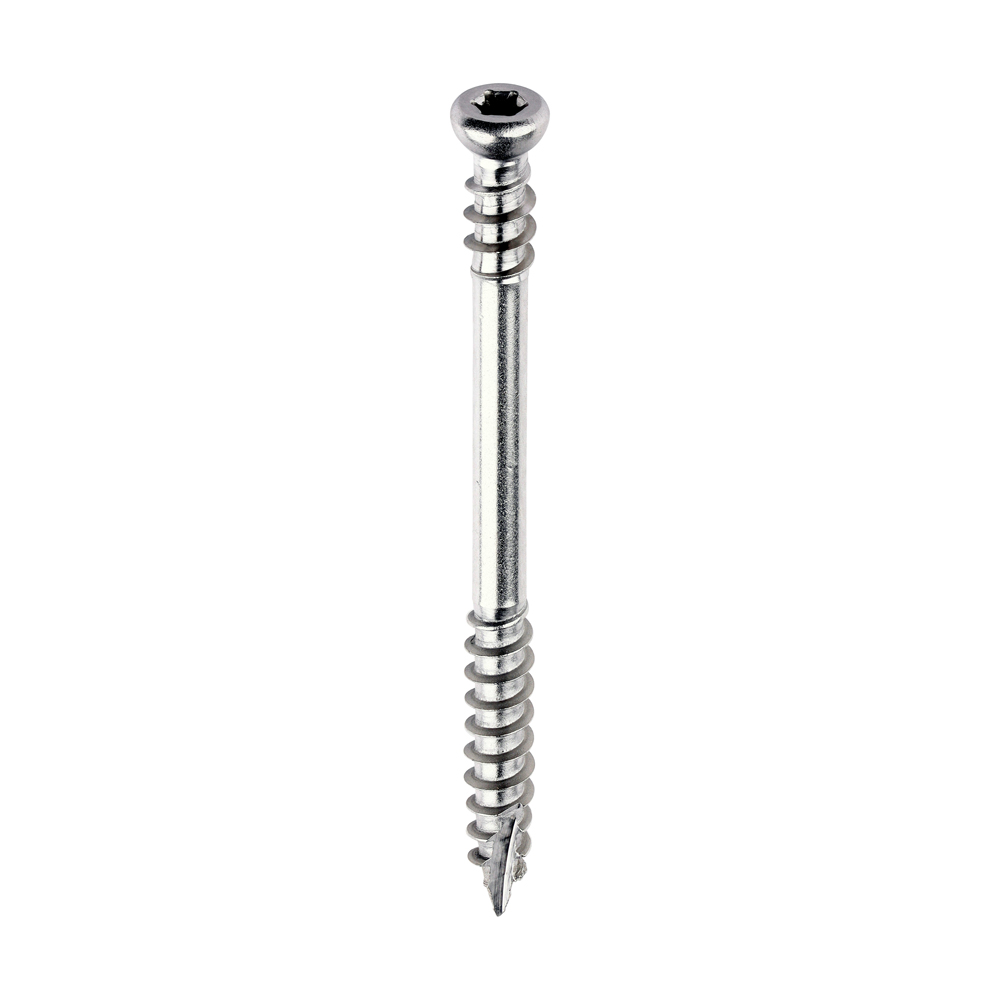

A premium quality fastener that features a reduced cylindrical head to provide a concealed finish. This screw is a top choice for decking and outdoor wood projects, as it ensures a seamless finish without compromising on strength and durability.
- Reduced cylindrical head gives a concealed finish
- Upper thread clamps decking boards to joists
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- Ideal for composite decking
Documents
Technical Specifications
Product Specifications
| Gauge | 9 |
| Colour | Silver |
| Head Type | Cylinder |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | Single Slash |
| Recess Type | TX Drive |
| Thread Coverage | Partially Threaded |
| Thread Type | 40° Single Deep |
| Application | Decking |
| Driver Bit Size | TX15 |
| Included Items | TX15 25mm Bit (Qty 1) |
| Resistant Type | Corrosion-Resistant |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
Product Specification
| Length inch | 2 1/2 |
| Length mm | 60 |
| Diameter mm | 4.5 |
| Size mm | 4.5 x 60 |
| Thread Length mm | Top - 8mm, Bottom - 25mm |
| Shank Type | Split Thread |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Indoor Outdoor Usage | Outdoor |
| Pack Dimensions L x W x H mm | 182 x 92 x 62 |
| Pack Weight kg | 1.08 |
| Carton Qty Packs | 18 |
| Pallet Qty Packs | 432 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 433187BX |
| SKU Barcode | 5056601904945 |
| Size imp | 9 x 2'1/2 |
| Thread Dia mm | 4.5 |
| Inner Thread Dia mm | 3.03 |
| Head Dia mm | 5.08 |
Attribute Group 1
| Brand | TIMCO |
C2 Deck-Fix - TX - Cylinder - Single Slash - Stainless Steel
4.5 x 60
- Product Code: 433187BX
- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5056601904945
