Product Information

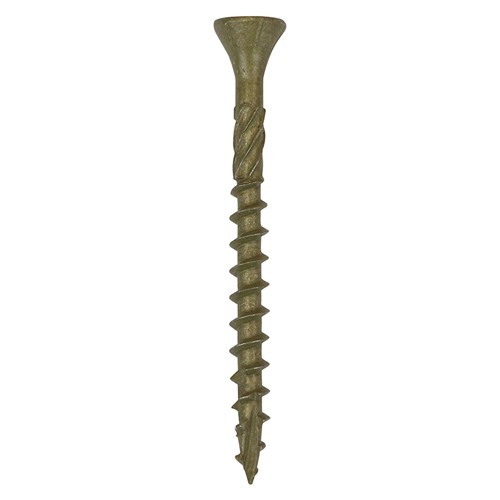

The C2 Deck-Fix with a green organic coating ideal for outdoor projects.
C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a variety of timber providing an ultimate performance.
- Strengthened head to prevent shearing when installed with an impact tool
- Ribs under the head for improved countersinking
- Helix shank for removing debris and to improve clamping
- Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray
- Patented twin cut technology for rapid "pick-up" and reduces timber splitting
Documents
Technical Specifications
Product Specifications
| Gauge | 9 |
| Colour | Green |
| Finish | Exterior (Green Organic) |
| Head Type | Countersunk with Ribs |
| Material | Hardened Steel |
| Point Type | Twin-Cut |
| Recess Type | TX Drive |
| Thread Coverage | Partially Threaded |
| Thread Type | 40° Single Deep |
| Application | Decking, Landscaping, Outdoor Structures (i.e. Pergolas, Fences, Sheds) |
| Driver Bit Size | TX20 |
| Included Items | TX20 25mm Bit (Qty 1) |
| Resistant Type | Corrosion-Resistant |
Product Specification
| Length inch | 2 1/2 |
| Length mm | 65 |
| Diameter mm | 4.5 |
| Size mm | 4.5 x 65 |
| Thread Length mm | 42 |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Indoor Outdoor Usage | Outdoor |
| Pack Dimensions L x W x H mm | 180 x 90 x 60 |
| Pack Weight kg | 1.08 |
| Carton Qty Packs | 18 |
| Pallet Qty Packs | 432 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 65C2D250BX |
| SKU Barcode | 5056110838991 |
| Size imp | 9 x 2 1/2 |
| Thread Dia mm | 4.5 |
| Inner Thread Dia mm | 2.7 |
| Head Dia mm | 7.98 |
Attribute Group 1
| Brand | TIMCO |
C2 Deck-Fix - TX - Countersunk with Ribs - Twin-Cut - Green
4.5 x 65
- Product Code: 65C2D250BX
- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5056110838991
