Product Information

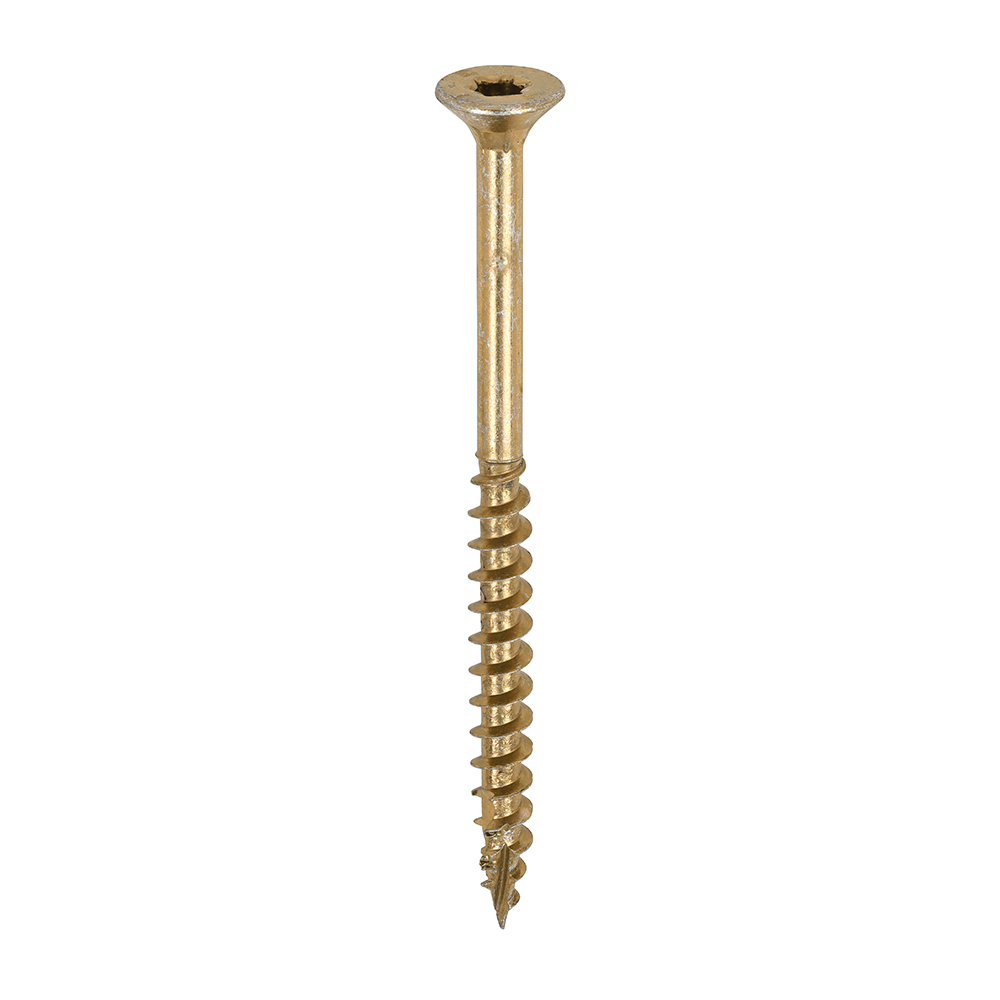

The C2 Clamp-Fix provides a high performance clamping solution that is specifically designed to prevent timber "jacking”. Ideal for timber-to-timber applications where a secure and stable connection is required.
C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
- Precision TX drive recess to prevent 'cam-out', giving a precise and positive drive control on every screw
- Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
- Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
- Dual angle thread for ultimate performance and exceptionally high pull-out resistance
- Patented twin cut technology for rapid "pick-up" and reduces timber splitting
- Partially threaded from 40mm
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Colour | Yellow |
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk with Ribs |
| Material | Hardened Steel |
| Point Type | Twin-Cut |
| Recess Type | TX Drive |
| Thread Coverage | Partially Threaded |
| Thread Type | 40° Single |
| Application | Joinery, Carpentry, Timber Construction, Furniture Manufacturing |
| Driver Bit Size | TX25 |

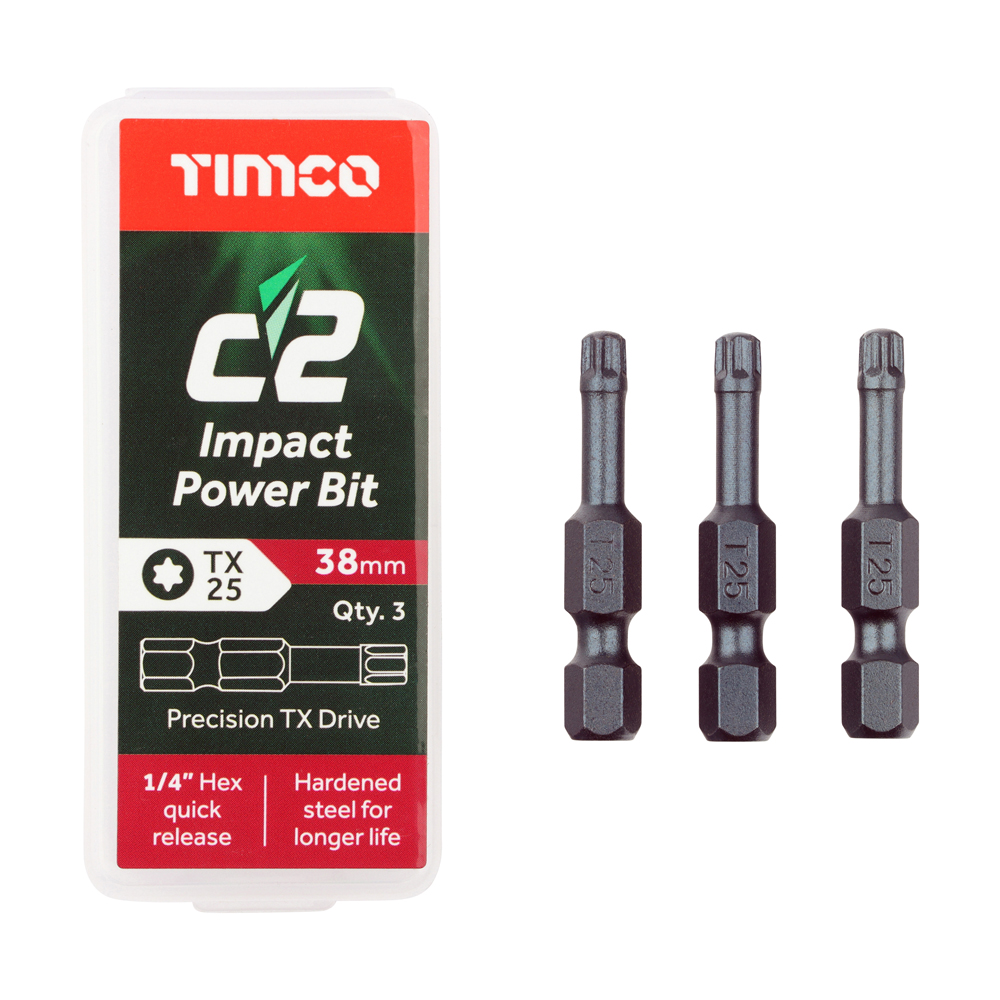

| Included Items | TX25 38mm Impact Power Bit (Qty 3) |
| Resistant Type | Corrosion-Resistant |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 2 3/4 |
| Length mm | 70 |
| Diameter mm | 5.0 |
| Size mm | 5.0 x 70 |
| Thread Length mm | 40 |
| Lubrication | Gleitmo |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Indoor |
| Max Clamping Fixture Thickness mm | 30 |
| Pack Dimensions L x W x H mm | 160 x 140 x 118 |
| Pack Weight kg | 2.374 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 180 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 50070C2CTUB |
| SKU Barcode | 5056110825045 |
| Size imp | 10 x 2 3/4 |
| Thread Dia mm | 5 |
| Inner Thread Dia mm | 2.95 |
| Head Dia mm | 9.7 |
Attribute Group 1
| Brand | TIMCO |

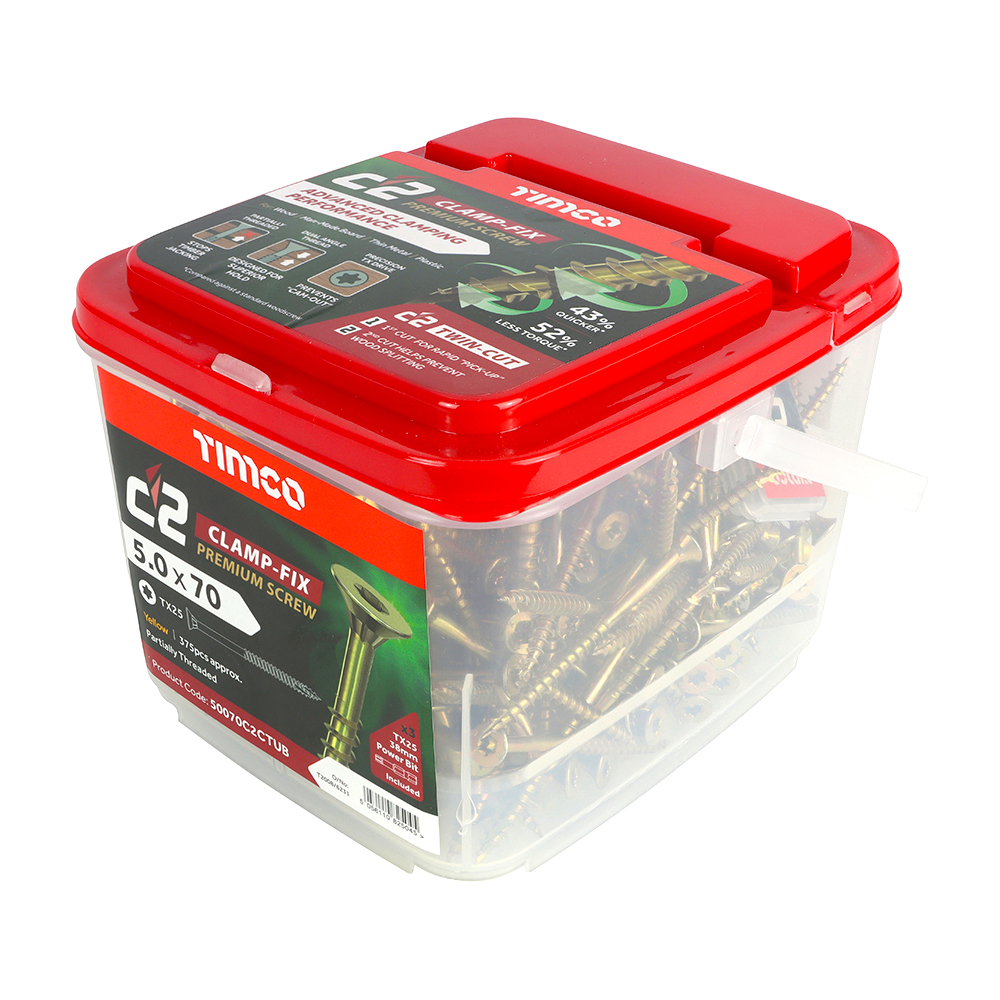

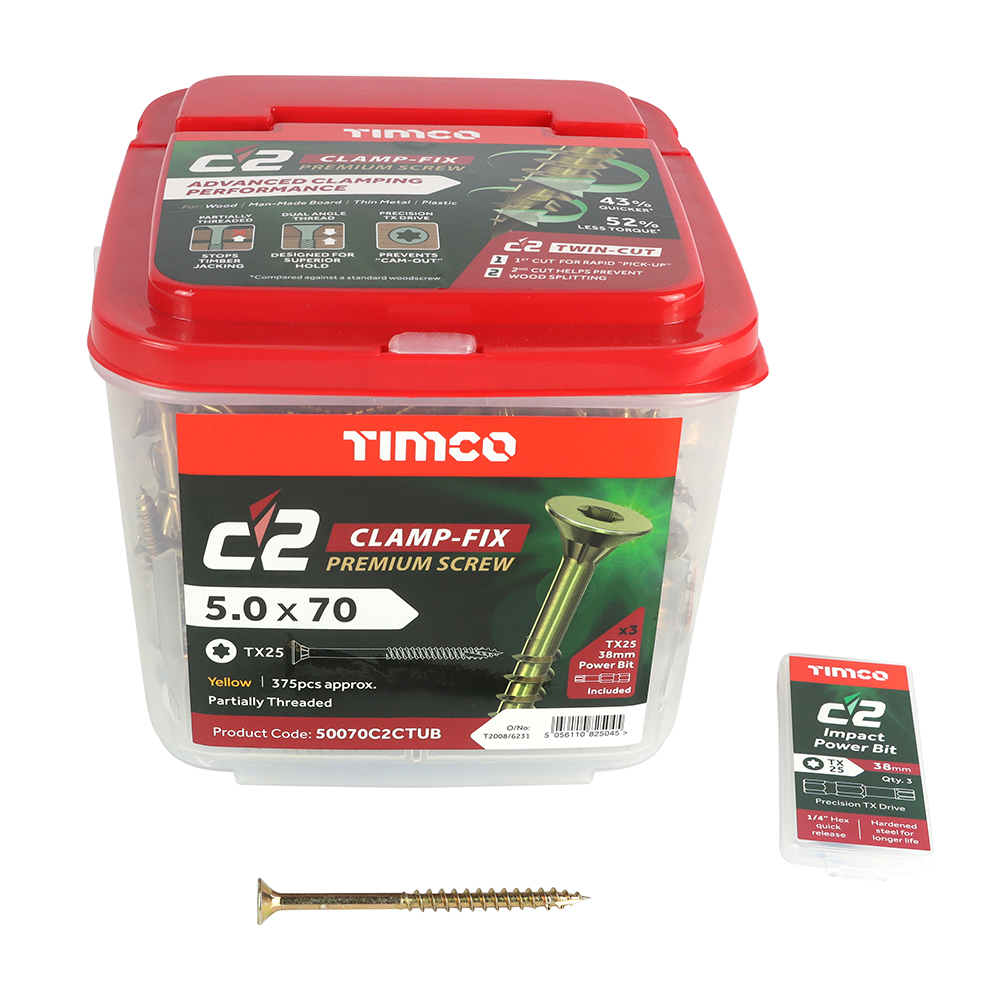

C2 Clamp-Fix - TX - Double Countersunk with Ribs - Twin-Cut - Yellow
5.0 x 70
- Product Code: 50070C2CTUB
- Pack Type: Tub
- Pack Quantity: 375
- Barcode: 5056110825045
