Product Information
Manufactured from a high grade M2 tool steel for drilling heavy gauge non-alloy materials, with magnetic drills. Pilot rod must be used to prevent drifting.
- High grade M2 HSS (High Speed Steel) body
- Broaching cutter supplied complete with pilot pin
Documents
Technical Specifications
Product Specification
| Cutting Depth mm | 30 |
| Size mm | 19.0 x 30 |
| Total Length mm | 63 |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 30 x 30 x 115 |
| Pack Weight kg | 0.14 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | N/A |
| Product Code | BCS19 |
| SKU Barcode | 5055017570287 |
| Cutter Dia mm | 19 |
Product Specifications
| Material | M2 Grade HSS Steel |
| Included Items | Pilot Pin (Qty 1) |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |

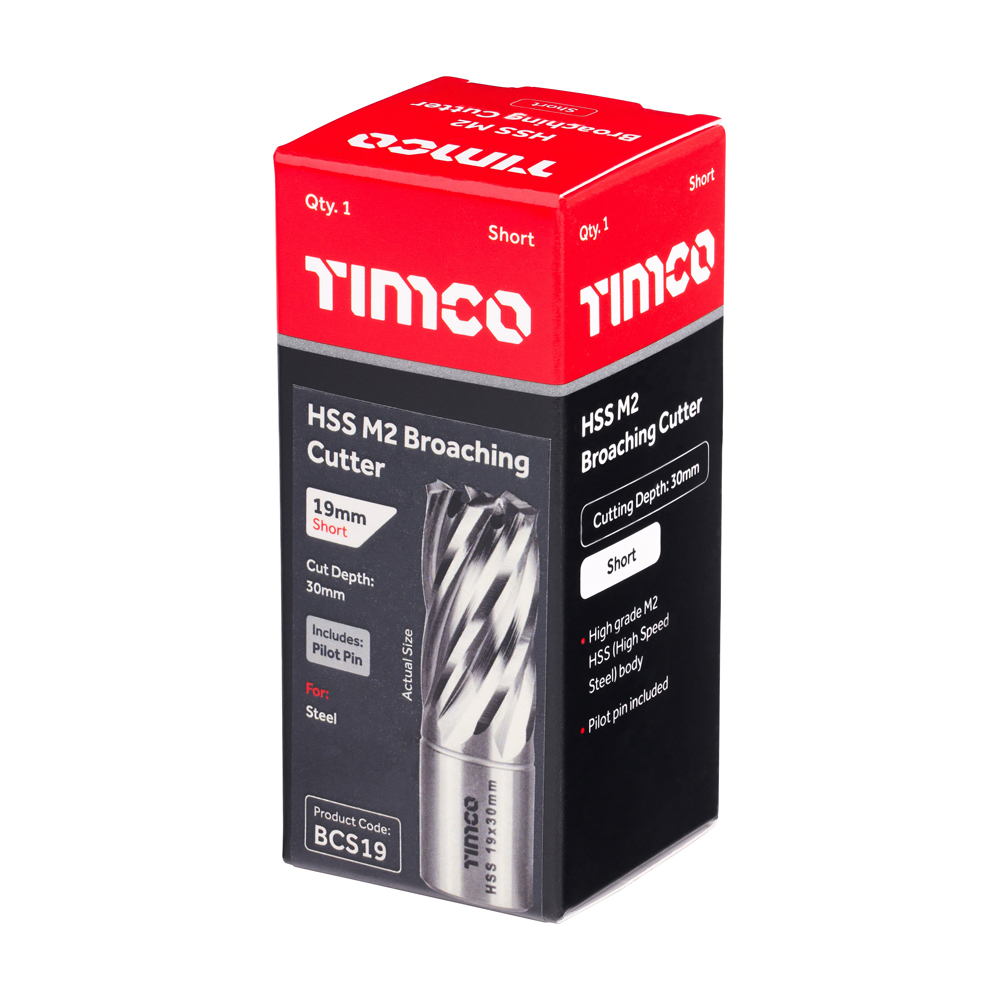

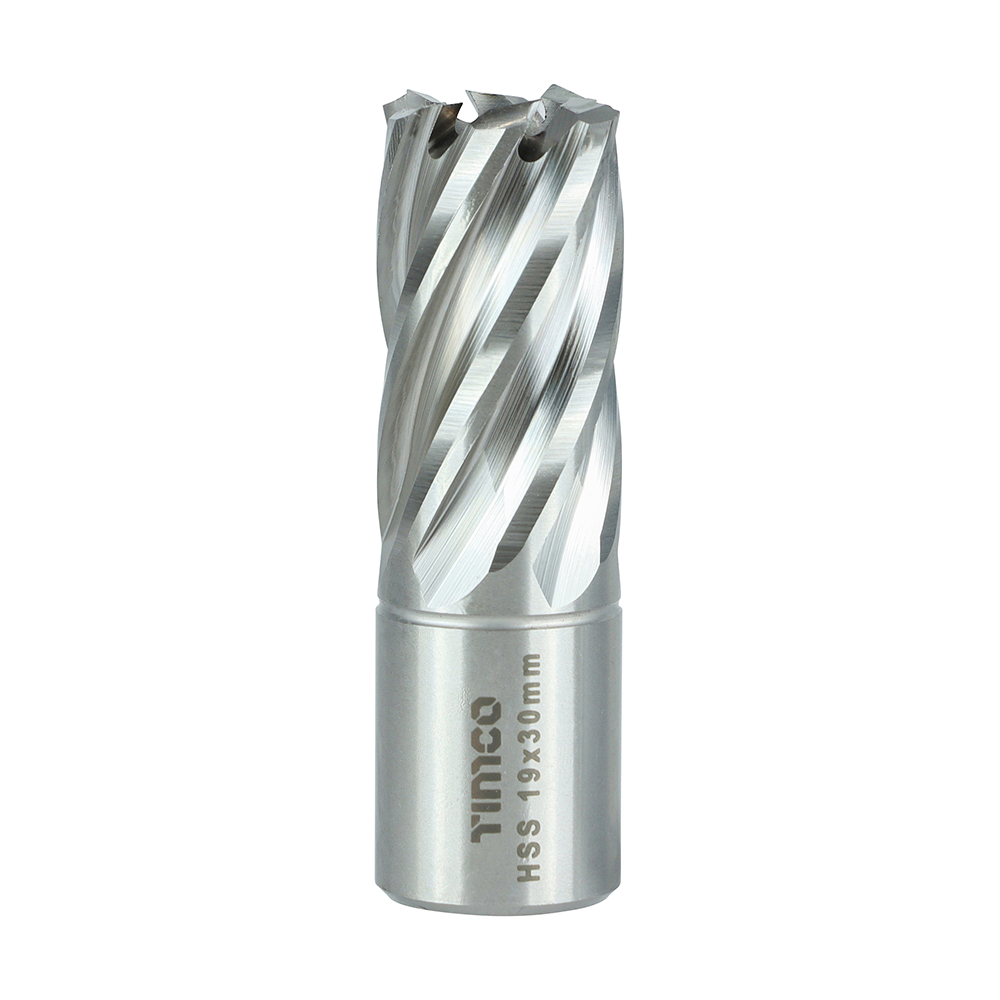

Broaching Cutter - Short
19 x 30
- Product Code: BCS19
- Pack Type: Tube
- Pack Quantity: 1
- Barcode: 5055017570287
