Product Information
Brenton padbolts are used for securing flush mounted gates and shed doors in domestic and light commercial applications. They are pad-lockable and fixed with carriage bolts for added security. Fixings not included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 8 |
| Bolt Length mm | 200 |
| Bolt Throw mm | 45 |
| Plate Size L x W mm | 225 x 45 |
| Staple Keep Size L x W mm | 56 x 33 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Padlock Shackle Diameter mm | 12 |
| Pack Dimensions L x W x H mm | 160 x 20 x 290 |
| Pack Weight kg | 0.41 |
| Carton Qty Packs | 40 |
| Pallet Qty Packs | N/A |
| Product Code | BP8GB |
| SKU Barcode | 5055893355695 |
| Bolt Dia mm | 12 |
| Rec Screw Dia mm | 4.0 |
| To Fit Carriage Bolt Dia mm | M6 |
| No of Bolt Holes | 4 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

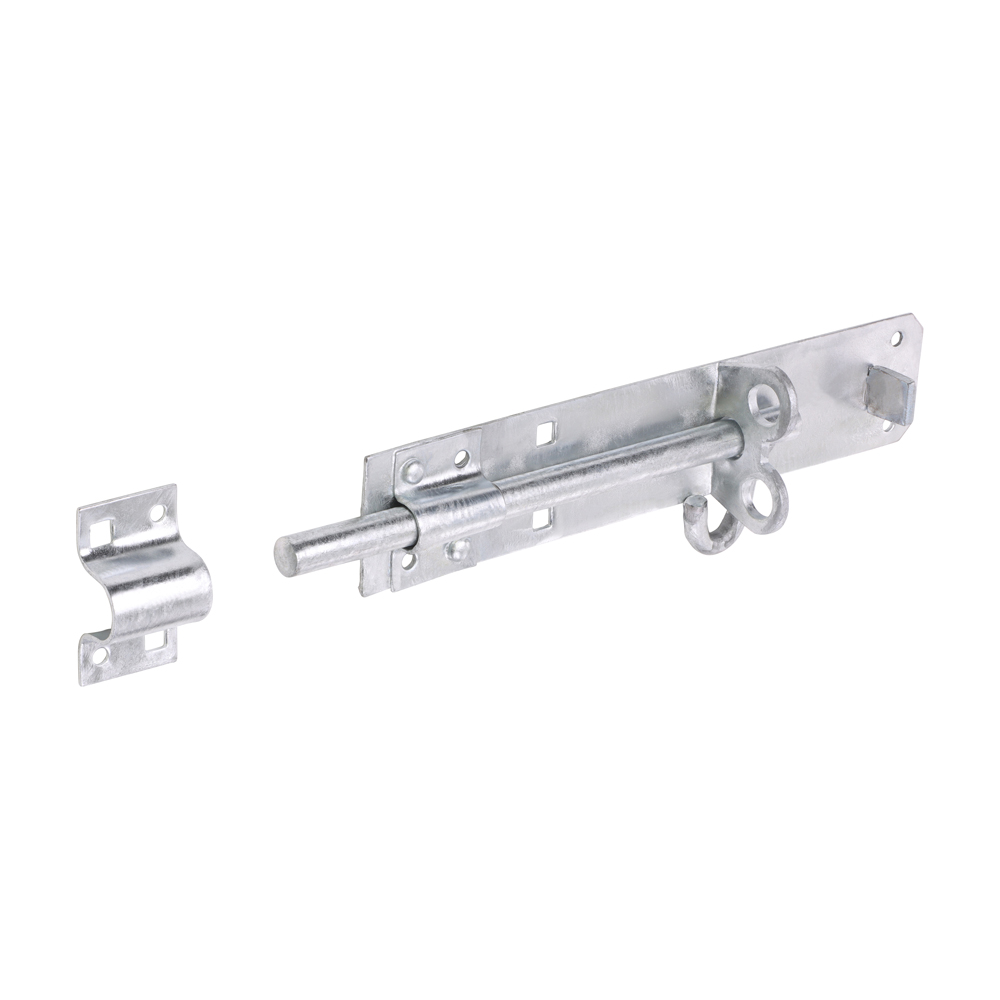

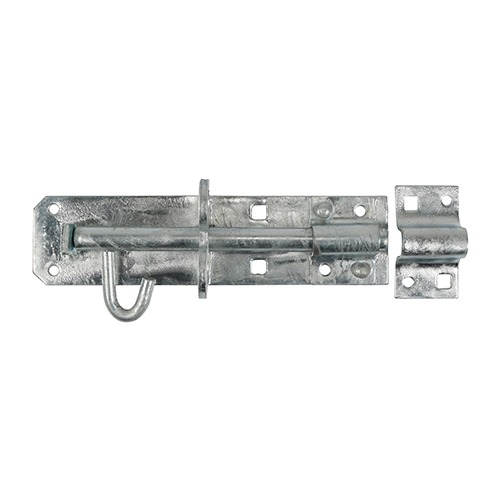

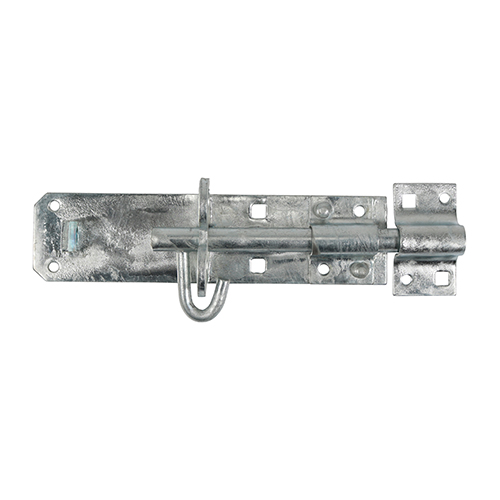

Brenton Padbolt - Hot Dipped Galvanised
8"
- Product Code: BP8GB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893355695
