Product Information
Bow handle bolts are ideal for securing the top and/or bottom of gates and doors. They feature an extended length bow shaped handle for ease of operation and remain closed under tension. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 12 |
| Bolt Length mm | 300 |
| Bolt Throw mm | 70 |
| Flat Keep Hole Size mm | 16 x 16 |
| Flat Keep Size L x W mm | 49 x 49 |
| Plate Size L x W mm | 180 x 50 |
| Square Bolt mm | 16 x 16 |
| Staple Keep Size L x W mm | 51 x 31 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| No of Pan Screws | 10 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 40 x 160 x 460 |
| Pack Weight kg | 1 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 287771 |
| SKU Barcode | 5055893395110 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Pan Screws (Qty 10) |
Attribute Group 1
| Brand | TIMCO |

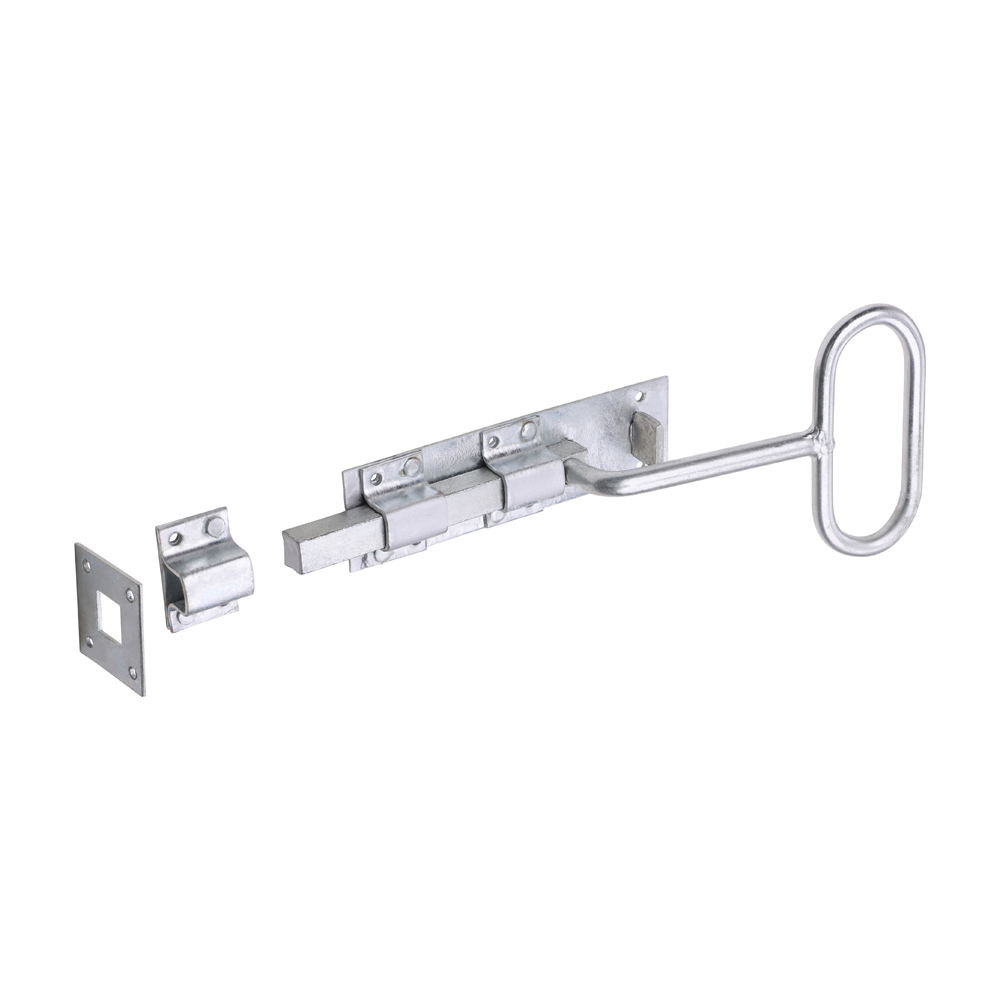

Bow Handle Bolt - Hot Dipped Galvanised
12"
- Product Code: 287771

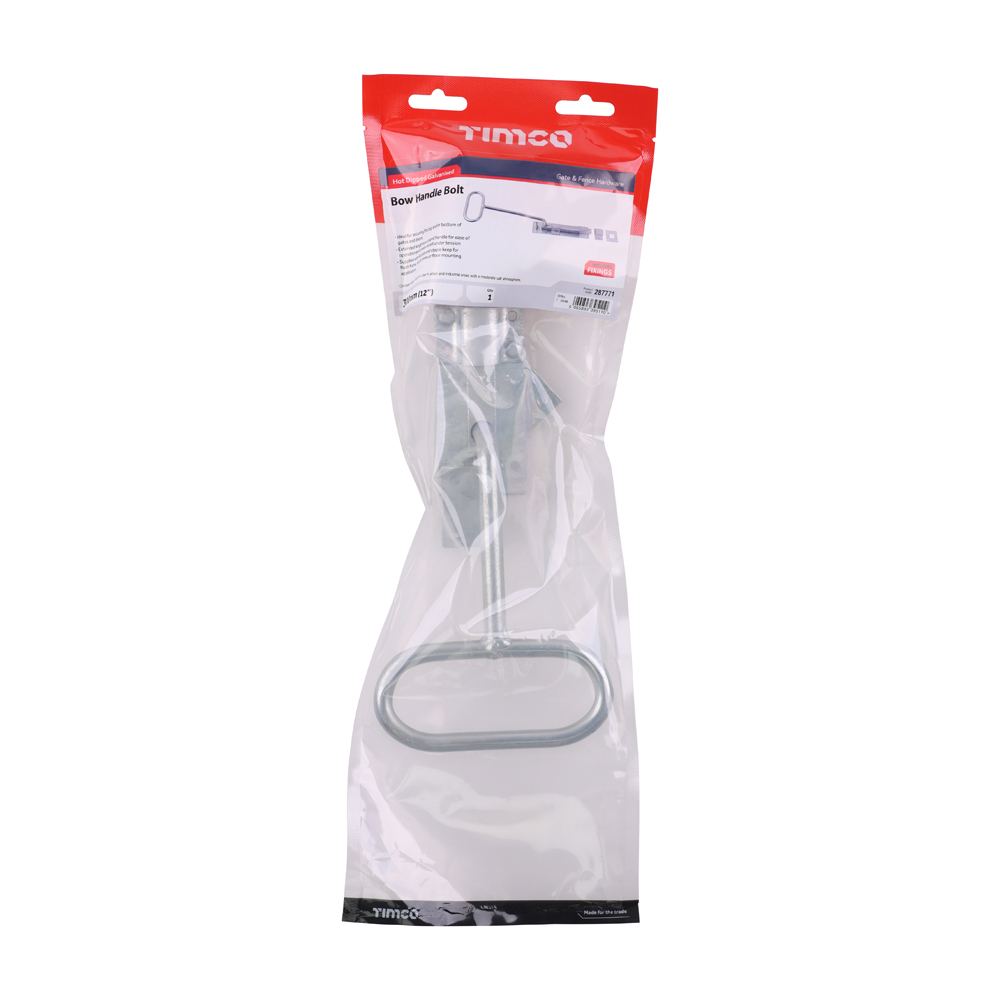

- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893395110
